Grundfos 98819591 - TPE3 50-80 S-A-G-A-BQQE-DYB | Inline | Variable Speed | Energy Efficient

GRUNDFOSSKU: 98819591

Price:
Sale price$7,323.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

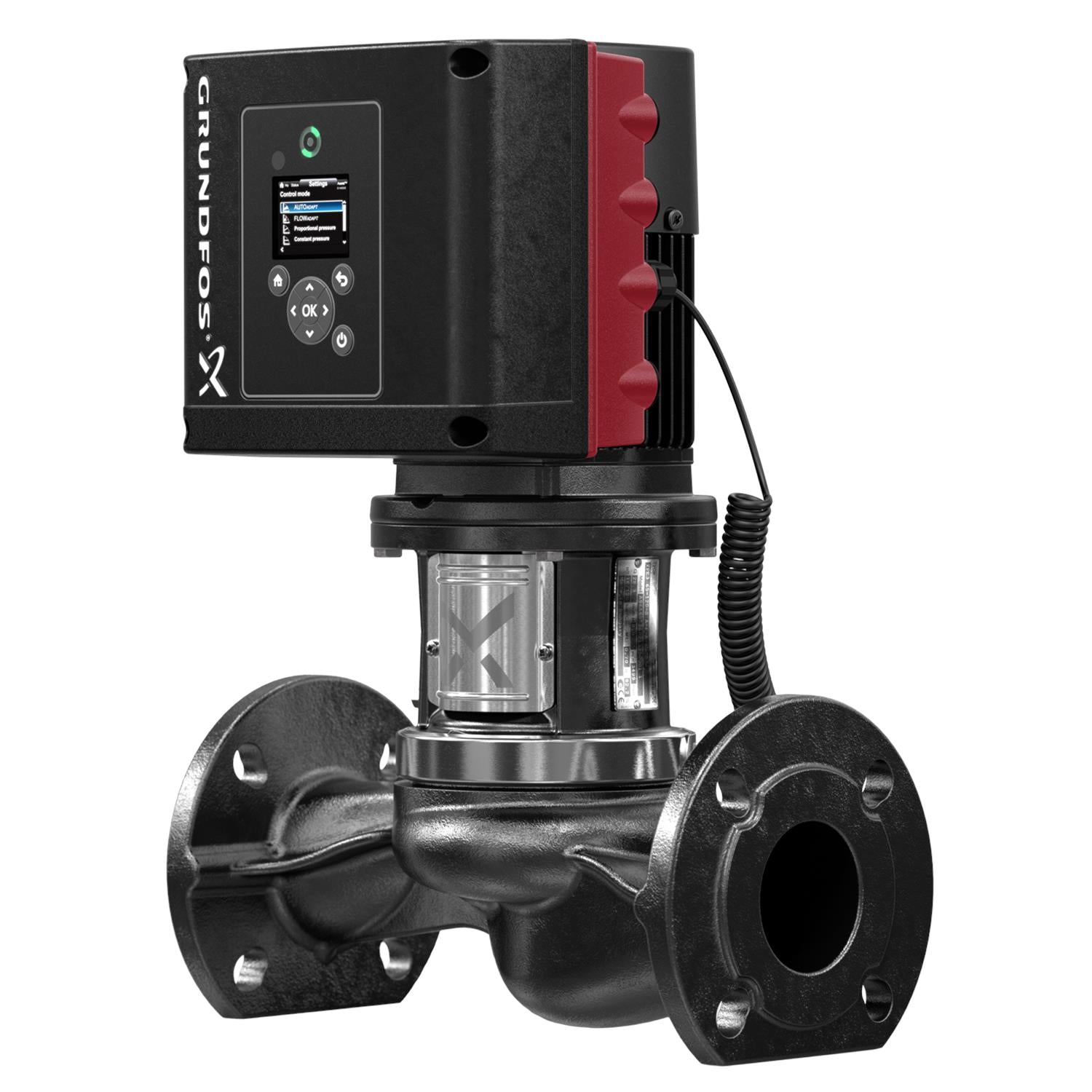

Grundfos 98819591 - TPE3 50-80 S-A-G-A-BQQE-DYB Inline Pump

The Grundfos 98819591 - TPE3 50-80 S-A-G-A-BQQE-DYB is a high-performance inline pump designed for various industrial applications. Engineered by Grundfos, this variable speed pump offers exceptional energy efficiency, making it an ideal choice for those looking to optimize their pumping systems.

With its robust construction and advanced technology, the TPE3 series ensures reliable operation and longevity. This centrifugal pump is perfect for a wide range of applications, including heating, cooling, and water supply systems.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Actual impeller diameter 2.91 in
Built-in motor protection ELEC
Code for shaft seal BQQE
Config. file no 98481397
Connect code G
Connection PN 12
Control panel HMI300 - Graphical
Curve tolerance ISO9906:2012 3B2
Diameter 2.91 in
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency 60 Hz
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 70.3 lb
Housing Cast iron
IE Eff. Class IE5
IE efficiency Product name:TPE3 50-80 S-A-G-A-BQQE-DYB
IE Efficiency class IE5
Impeller Composite
Insulation F
Insulation class (IEC 85) F
IP Class IP55
Length 11 1/16 in
Liquid max temp 248°F
Liquid temperature range -13 .. 248 °F
Material code A
Maximum head 26.25 ft
Maximum operating pressure 174.05 psi
Minimum ambient temperature -4°F
Motor 56C
Motor efficiency at full load 1 0.84
Motor type 71A
n rpm F
Net weight 54.5 lb
P2 kW 0.5 HP
Phase 1
Power factor 1 0.96
Pressure rating for connection PN 12
Pump housing Cast iron
Pump version A
Range of ambient temperature -4 .. 122 °F
Rated current 2.40-2.10 A
Rated flow 79.3 US gpm
Rated head 19.03 ft
Rated power - P2 0.5 HP
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Shaft Product name:TPE3 50-80 S-A-G-A-BQQE-DYB
Shaft seal BQQE
Size of connection GF 53
Type 71A
Type of connection GF
Version A

Motor Curves

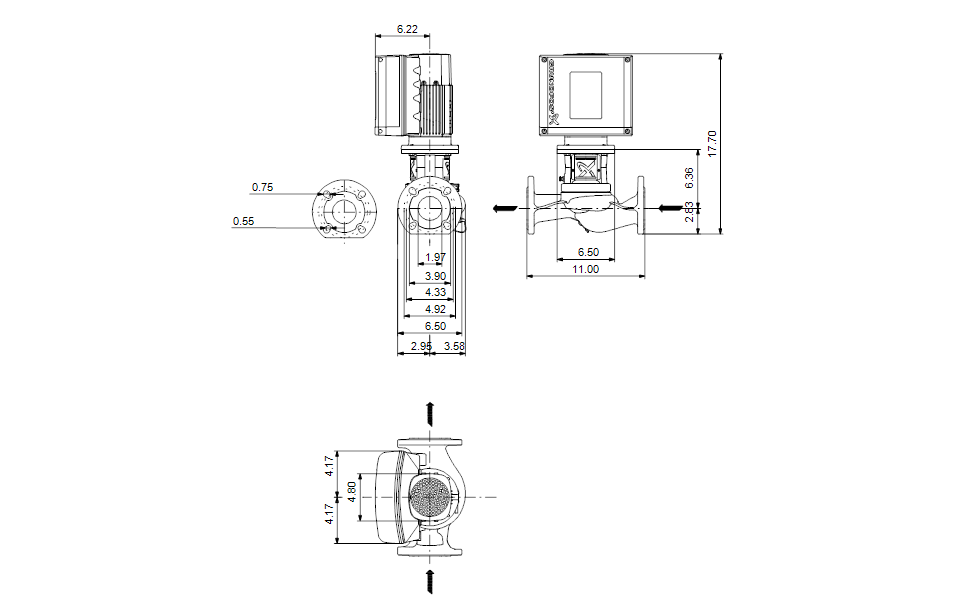

Dimensional Drawing

DWiring Diagram
