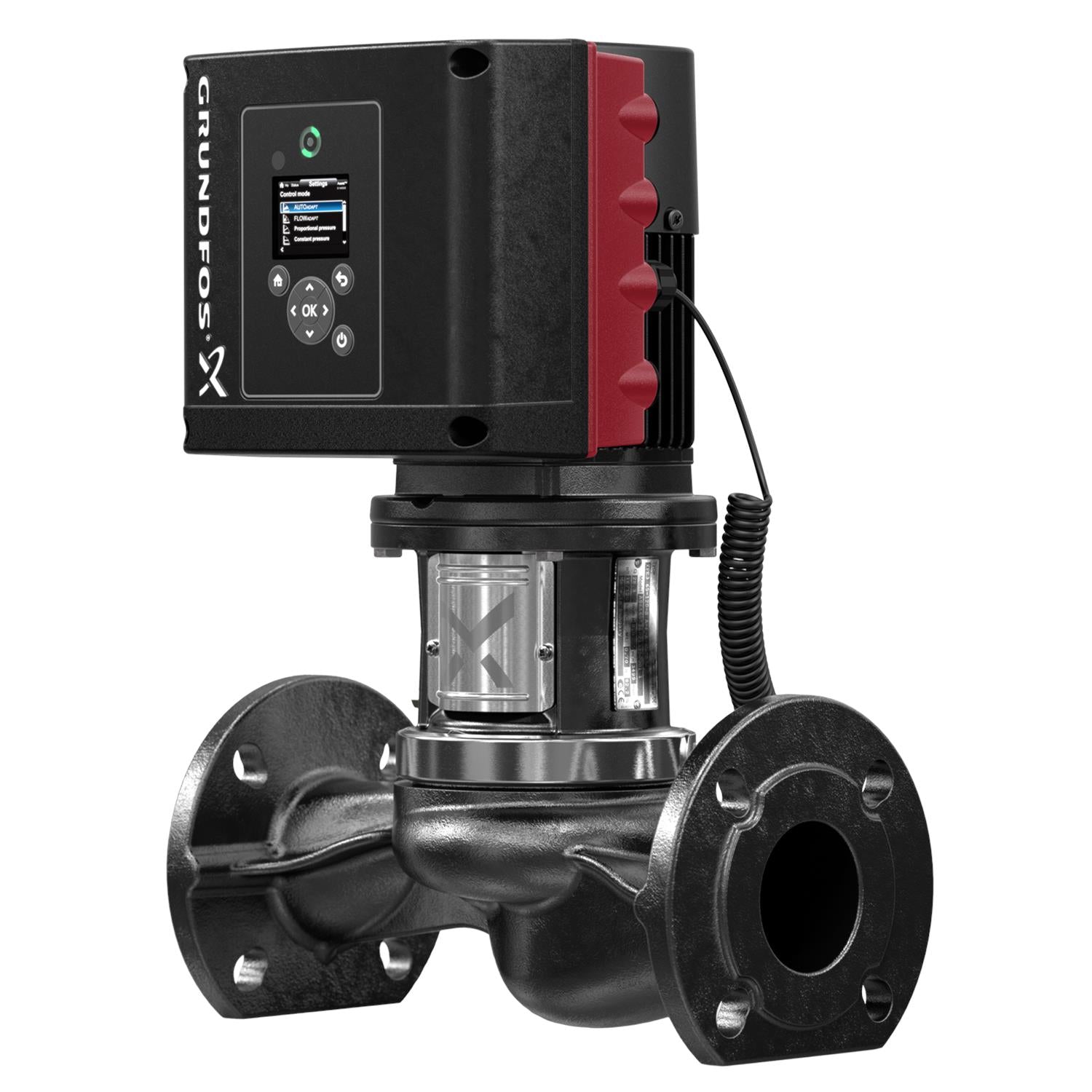

Grundfos 98819630 - TPE3 50-200 S-A-G-A-BQQE-HYC | Inline | Variable Speed | Energy Efficient
Grundfos 98819630 - TPE3 50-200 S-A-G-A-BQQE-HYC | Inline | Variable Speed | Energy Efficient
Grundfos 98819630 - TPE3 50-200 S-A-G-A-BQQE-HYC | Inline | Variable Speed | Energy Efficient
Roll over image to zoom in Click on image to zoom
Grundfos 98819630 - TPE3 50-200 S-A-G-A-BQQE-HYC | Inline | Variable Speed | Energy EfficientGrundfos 98819630 - TPE3 50-200 S-A-G-A-BQQE-HYC | Inline | Variable Speed | Energy EfficientGrundfos 98819630 - TPE3 50-200 S-A-G-A-BQQE-HYC | Inline | Variable Speed | Energy Efficient
Grundfos Pumps & Systems

Grundfos 98819630 - TPE3 50-200 S-A-G-A-BQQE-HYC | Inline | Variable Speed | Energy Efficient

GrundfosSKU: 98819630
Price:
$10,387.00

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
TPE3 50-200 S-A-G-A-BQQE-HYC · Grundfos Accessory / Spare Part / Control
ACC2HP440-480V3.0-Phase60 HzIE5IP55Composite

The Grundfos 98819630 (TPE3 50-200 S-A-G-A-BQQE-HYC) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 129US gpm at 49.22ft. Rated 440-480V, 3.0-Phase, 60 Hz. Applications include HVAC: Heating.

Power
2HP
Voltage
440-480V
Phase
3.0-Phase
Max Flow
129US gpm
Max Head
49.22ft
Max Pressure
174.05psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Ultra-Premium Efficiency
IE5 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — TPE3 50-200 S-A-G-A-BQQE-HYC
Series: ACC
Model Code: TPE3 50-200 S-A-G-A-BQQE-HYC
Impeller Material: Composite
Housing Material: Cast iron
Shaft Seal: BQQE
Flange Rating: PN 12
Technical Specifications
Model Number 98819630
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 2HP
Voltage 440-480V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 480-5900rpm
Pump Speed 4800rpm
Full Load Current 2.8A
Motor Type 90B
Motor Protection ELEC
Motor Efficiency Class IE5
Motor Efficiency 88.4%
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 129US gpm
Nominal Head 49.22ft
Max Operating Pressure 174.05psi
Max Fluid Temperature 248°F
Max Ambient Temperature 122°F
Min Ambient Temperature -4°F
Nominal Pipe Bore GF 53
Pipe Pressure Rating PN 12
Pipe Standard GF
Impeller Material Composite
Housing Material Cast iron
Shaft Seal BQQE
Applications
HVAC: Heating
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 440-480V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — TPE3 50-200 S-A-G-A-BQQE-HYC
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 98819630 · TPE3 50-200 S-A-G-A-BQQE-HYCAuthorized Grundfos Distributor · pump-stop.com
Actual impeller diameter
2.91 in
Built-in motor protection
ELEC
Code for shaft seal
BQQE
Config. file no
98484784
Connect code
G
Connection
PN 12
Control panel
HMI300 - Graphical
Curve tolerance
ISO9906:2012 3B2
Diameter
2.91 in
Enclosure class (IEC 34-5)
IP55
Flange size for motor
56C
Frequency
60 Hz
Frequency converter
Built-in
Function Module
FM300 - Advanced
Gross weight
78.1 lb
Housing
Cast iron
IE Eff. Class
IE5
IE efficiency
Product name:TPE3 50-200 S-A-G-A-BQQE-HYC
IE Efficiency class
IE5
Impeller
Composite
Insulation
F
Insulation class (IEC 85)
F
IP Class
IP55
Length
11 1/16 in
Liquid max temp
248°F
Liquid temperature range
-13 .. 248 °F
Material code
A
Maximum head
65.62 ft
Maximum operating pressure
174.05 psi
Minimum ambient temperature
-4°F
Motor
56C
Motor efficiency at full load 1
0.884
Motor type
90B
n rpm
F
Net weight
62.2 lb
P2 kW
2 HP
Phase
3
Power factor 1
0.83
Pressure rating for connection
PN 12
Pump housing
Cast iron
Pump version
A
Range of ambient temperature
-4 .. 122 °F
Rated current
2.8 A
Rated flow
129 US gpm
Rated head
49.22 ft
Rated power - P2
2 HP
Rated speed
480-5900 rpm
Rated voltage
3 x 440-480 V
Shaft
Product name:TPE3 50-200 S-A-G-A-BQQE-HYC
Shaft seal
BQQE
Size of connection
GF 53
Type
90B
Type of connection
GF
Version
A
