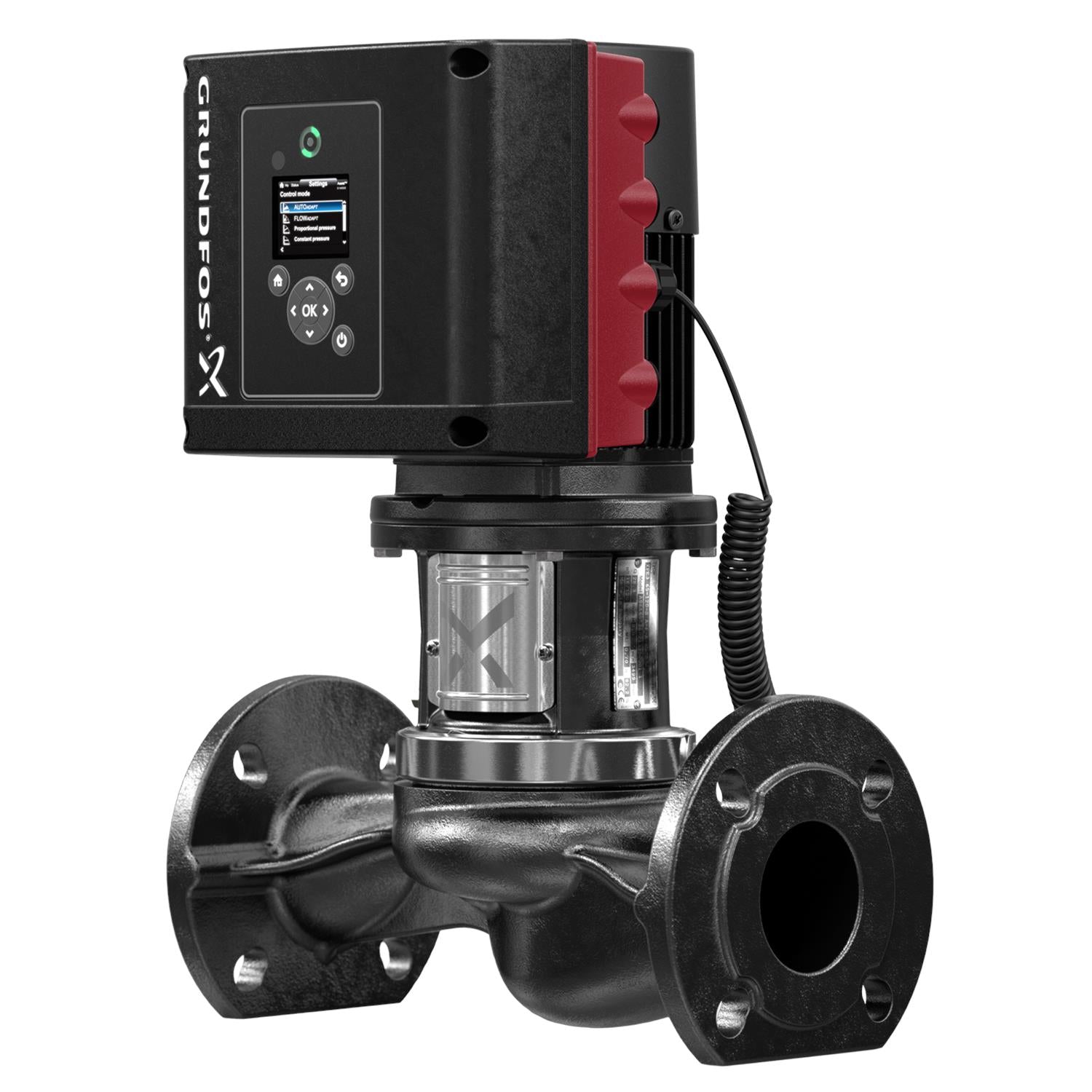

Grundfos 98819538 - TPE3 40-150 S-A-G-A-BQQE-EYB | Inline | Variable Speed | Energy Efficient

Save $1,441.20
GRUNDFOSSKU: 98819538

Price:
Sale price$4,826.80 Regular price$6,268.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

TPE3 40-150 S-A-G-A-BQQE-EYB | Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i. e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The shaft seal is according to EN 12756. The pump is fitted with a fan-cooled, permanent-magnet synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement. The pump is fitted with a combined temperature- and differential-pressure sensor.

Actual impeller diameter 2.91 in
Built-in motor protection ELEC
Code for shaft seal BQQE
Config. file no 98484775
Connect code G
Connection PN 12
Control panel HMI300 - Graphical
Curve tolerance ISO9906:2012 3B2
Diameter 2.91 in
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency 60 Hz
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 64.2 lb
Housing Cast iron
IE Eff. Class IE5
IE efficiency Product name:TPE3 40-150 S-A-G-A-BQQE-EYB
IE Efficiency class IE5
Impeller Composite
Insulation F
Insulation class (IEC 85) F
IP Class IP55
Length 8 9/16 in
Liquid max temp 248°F
Liquid temperature range -13 .. 248 °F
Material code A
Maximum head 49.22 ft
Maximum operating pressure 174.05 psi
Minimum ambient temperature -4°F
Motor 56C
Motor efficiency at full load 1 0.857
Motor type 71A
n rpm F
Net weight 47.6 lb
P2 kW 0.75 HP
Phase 3
Power factor 1 0.68
Pressure rating for connection PN 12
Pump housing Cast iron
Pump version A
Range of ambient temperature -4 .. 122 °F
Rated current 1.35 A
Rated flow 70.9 US gpm
Rated head 30.51 ft
Rated power - P2 0.75 HP
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Shaft Product name:TPE3 40-150 S-A-G-A-BQQE-EYB
Shaft seal BQQE
Size of connection GF 15/26/40/43
Type 71A
Type of connection GF
Version A

Motor Curves
