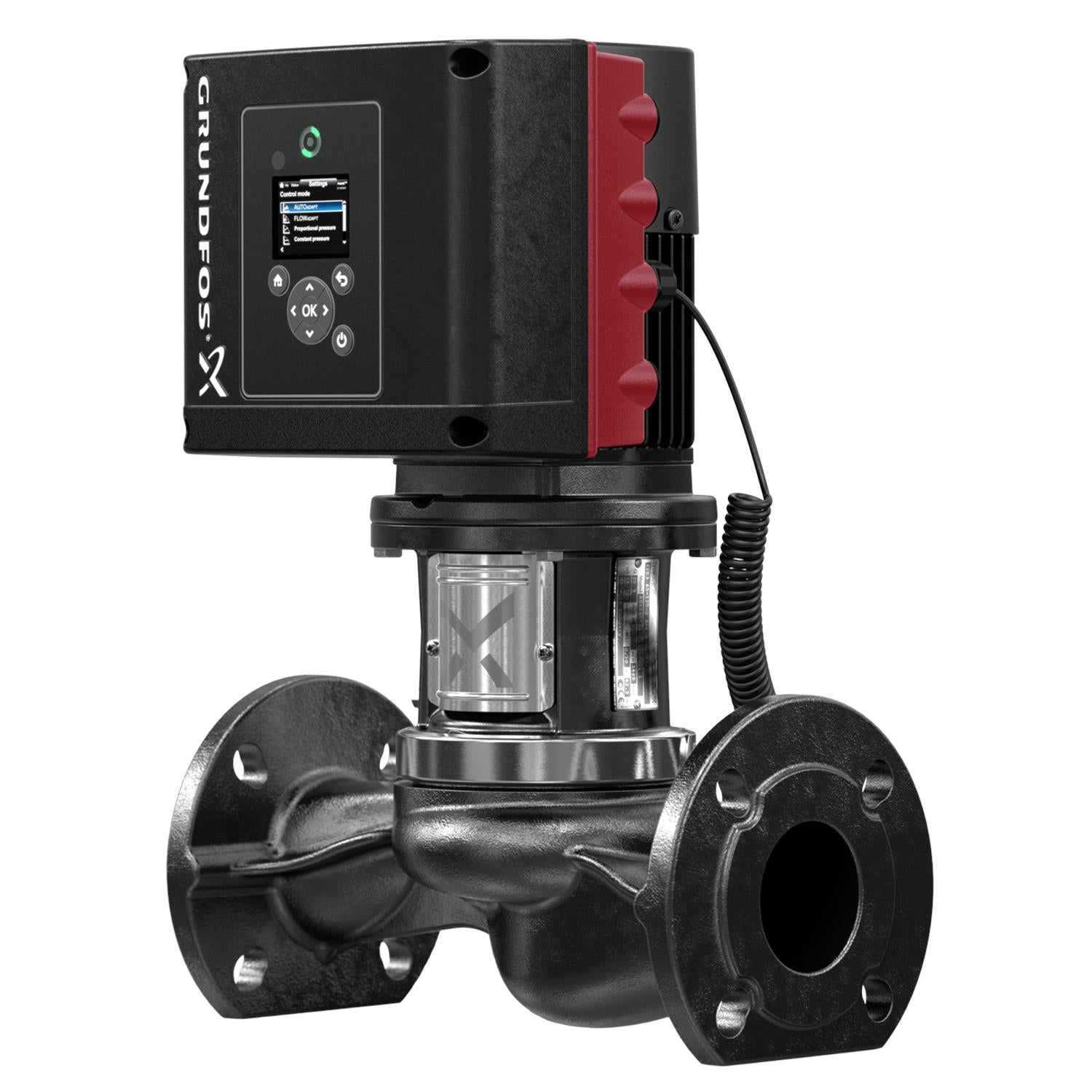

Grundfos 98819501 - TPE3 40-150 S-A-G-A-BQQE-EYB | Inline | Variable Speed | Energy Efficient

GRUNDFOSSKU: 98819501

Price:
Sale price$7,256.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98819501 - TPE3 40-150 S-A-G-A-BQQE-EYB is a high-performance inline pump designed for various industrial applications. Manufactured by Grundfos, this variable speed centrifugal pump is engineered for energy efficiency and reliability, making it an ideal choice for your pumping needs.

With its advanced technology, the TPE3 series ensures optimal performance while minimizing energy consumption. This pump is perfect for applications requiring precise flow control and is compatible with a wide range of systems.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our team is here to help!

Actual impeller diameter 2.91 in
Built-in motor protection ELEC
Code for shaft seal BQQE
Config. file no 98481392
Connect code G
Connection PN 12
Control panel HMI300 - Graphical
Curve tolerance ISO9906:2012 3B2
Diameter 2.91 in
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency 60 Hz
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 59.8 lb
Housing Cast iron
IE Eff. Class IE5
IE efficiency Product name:TPE3 40-150 S-A-G-A-BQQE-EYB
IE Efficiency class IE5
Impeller Composite
Insulation F
Insulation class (IEC 85) F
IP Class IP55
Length 8 9/16 in
Liquid max temp 248°F
Liquid temperature range -13 .. 248 °F
Material code A
Maximum head 49.22 ft
Maximum operating pressure 174.05 psi
Minimum ambient temperature -4°F
Motor 56C
Motor efficiency at full load 1 0.853
Motor type 71A
n rpm F
Net weight 43.9 lb
P2 kW 0.75 HP
Phase 1
Power factor 1 0.98
Pressure rating for connection PN 12
Pump housing Cast iron
Pump version A
Range of ambient temperature -4 .. 122 °F
Rated current 3.45-2.90 A
Rated flow 70.9 US gpm
Rated head 30.51 ft
Rated power - P2 0.75 HP
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Shaft Product name:TPE3 40-150 S-A-G-A-BQQE-EYB
Shaft seal BQQE
Size of connection GF 15/26/40/43
Type 71A
Type of connection GF
Version A

Motor Curves

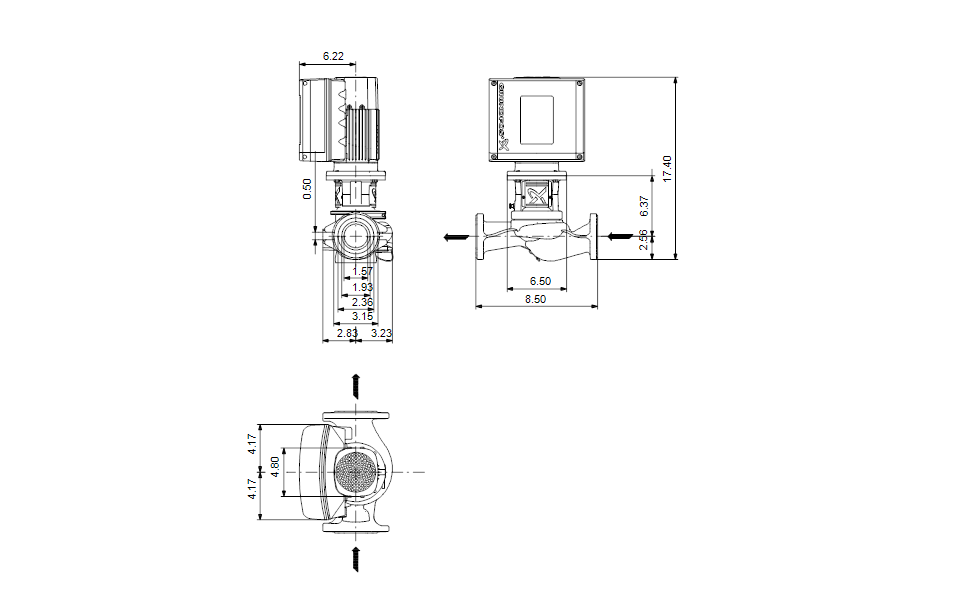

Dimensional Drawing

DWiring Diagram
