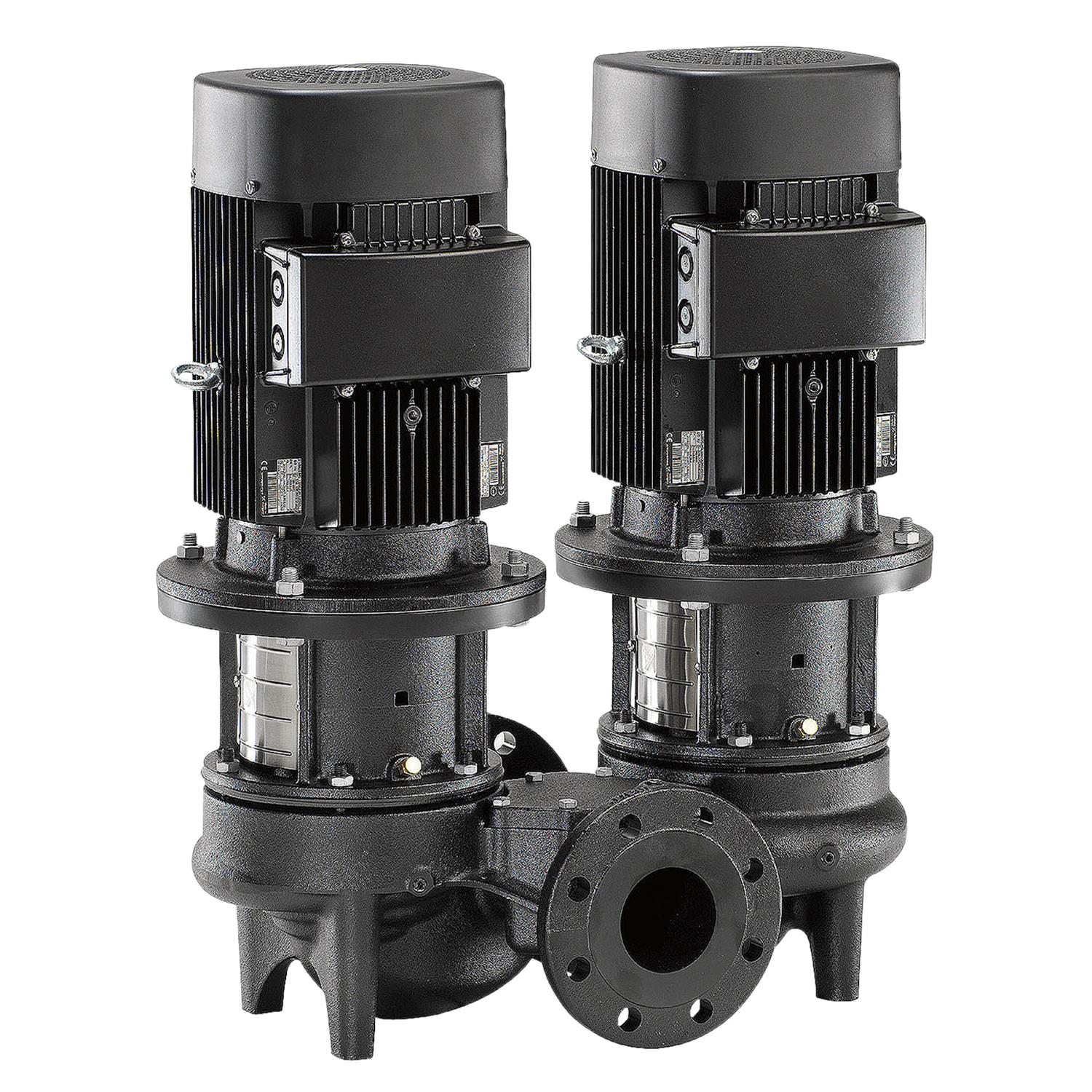

The Grundfos 96109898 (TPD 150-250/4 A-F-A-BAQE-QW3) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 96109898 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation. |
| Temperature limits | Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5700396988832
- Actual impeller diameter
- 10.5 in
- Built-in motor protection
- PTC
- Code for shaft seal
- BAQE
- Connect code
- F
- Connection
- PN 16
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Diameter
- 10.5 in
- Enclosure class (IEC 34-5)
- IP55
- Flange size for motor
- FF300
- Frequency converter
- NONE
- Gross weight
- 1930.0 lb
- Housing
- Cast iron
- IE efficiency
- IE3 93%
- IE Efficiency class
- IE3
- Impeller
- Cast iron
- Insulation class (IEC 85)
- F
- Length
- 800 mm
- Liquid temperature range
- 32 .. 248 °F
- Mains frequency
- 50 Hz
- Material code
- A
- Max pressure at stated temp
- 232 psi / 250 °F
- Maximum head
- 82.02 ft
- Maximum operating pressure
- 16 bar
- Minimum efficiency index, MEI ≥
- 0.65
- Motor
- FF300
- Motor efficiency at 1/2 load
- 93.6-93.6 %
- Motor efficiency at 3/4 load
- 93.6-93.6 %
- Motor efficiency at full load 1
- 93-93 %
- Motor type
- SIEMENS
- Net weight
- 1790.0 lb
- Number of poles
- 4
- Power factor 1
- 0.83
- Pressure rating for connection
- PN 16
- Pump housing
- Cast iron
- Pump speed on which pump data are based
- 1465 rpm
- Pump version
- A
- Pumped liquid
- Water
- Range of ambient temperature
- -4 .. 131 °F
- Rated current
- 41/24 A
- Rated flow
- 1150 US gpm
- Rated head
- 65.29 ft
- Rated power - P2
- 22 kW
- Rated speed
- 1470 rpm
- Rated voltage
- 3 x 380-420D/660-725Y V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Selected liquid temperature
- 68 °F
- Size of connection
- DN 150
- Starting current
- 680-680 %
- Type
- SIEMENS
- Type of connection
- DIN
- Version
- A
