Grundfos 96784534 - TP 80-80/4 A-G-A-RUUE-GX4 | Centrifugal

Save $3,073.50 This item ships free!
GRUNDFOSSKU: 96784534

Price:
Sale price$3,073.50 Regular price$6,147.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

TP 80-80/4 A-G-A-RUUE-GX4 Single-stage centrifugal volute in-line single-head pump: neck rings and impeller made of stainless steel
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal. The motor is a 1-phase AC motor.

EAN 5700310228402
Applications Heating, Air-conditioning, Industrial applications, Pressure boosting, Drinking Water Distribution
Actual impeller diameter 5.03 in
Approvals on motor nameplate UR
Built-in motor protection NONE
Connection 3"
Country code Namreg
Curve tolerance ISO9906:2012 3B2
Density 62.29 lb/ft³
Diameter 5.03 in
DOE Pump Energy Index CL 0.93
Flange standard ANSI
Gross weight 147.0 lb
Housing Cast iron
Impeller Stainless steel
Insulation class (IEC 85) B
KVA code J
Liquid temperature range 140 .. 140 °F
Mains frequency 60 Hz
Material Pricing Group 54
Maximum operating pressure 10 bar
Motor type BALDOR
Pipe connection 3"
Pressure rating 125 Lb.
Primary shaft seal RUUE
Product family TP, North America
Pump housing Cast iron
Pump No 96405271
Pumped liquid Water
Range of ambient temperature -22 .. 131 °F
Rated current 16/8
Rated flow 163 US gpm
Rated head 20.67 ft
Rated power - P2 1.1 kW
Rated speed 1725 rpm
Rated voltage 1 x 115/208-230 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.15
Standard ANSI
Type BALDOR

Motor Curves

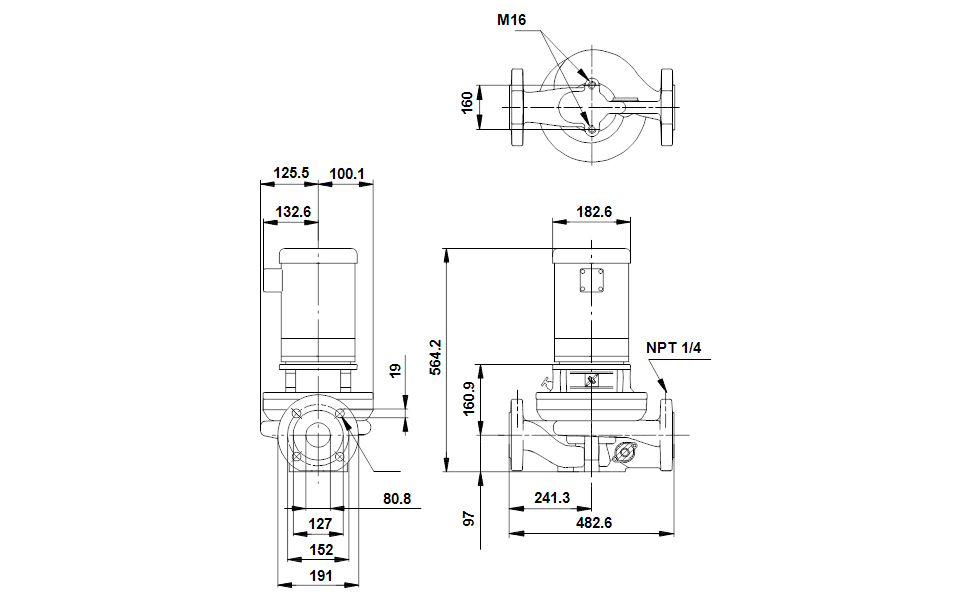

Dimensional Drawing
