Grundfos 91122115 - TP 80-80/4 A-G-A-BUBE-XX4 | Circulator | Heating | Domestic Use

Save $2,105.10 This item ships free!
GRUNDFOSSKU: 91122115

Price:
Sale price$2,572.90 Regular price$4,678.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

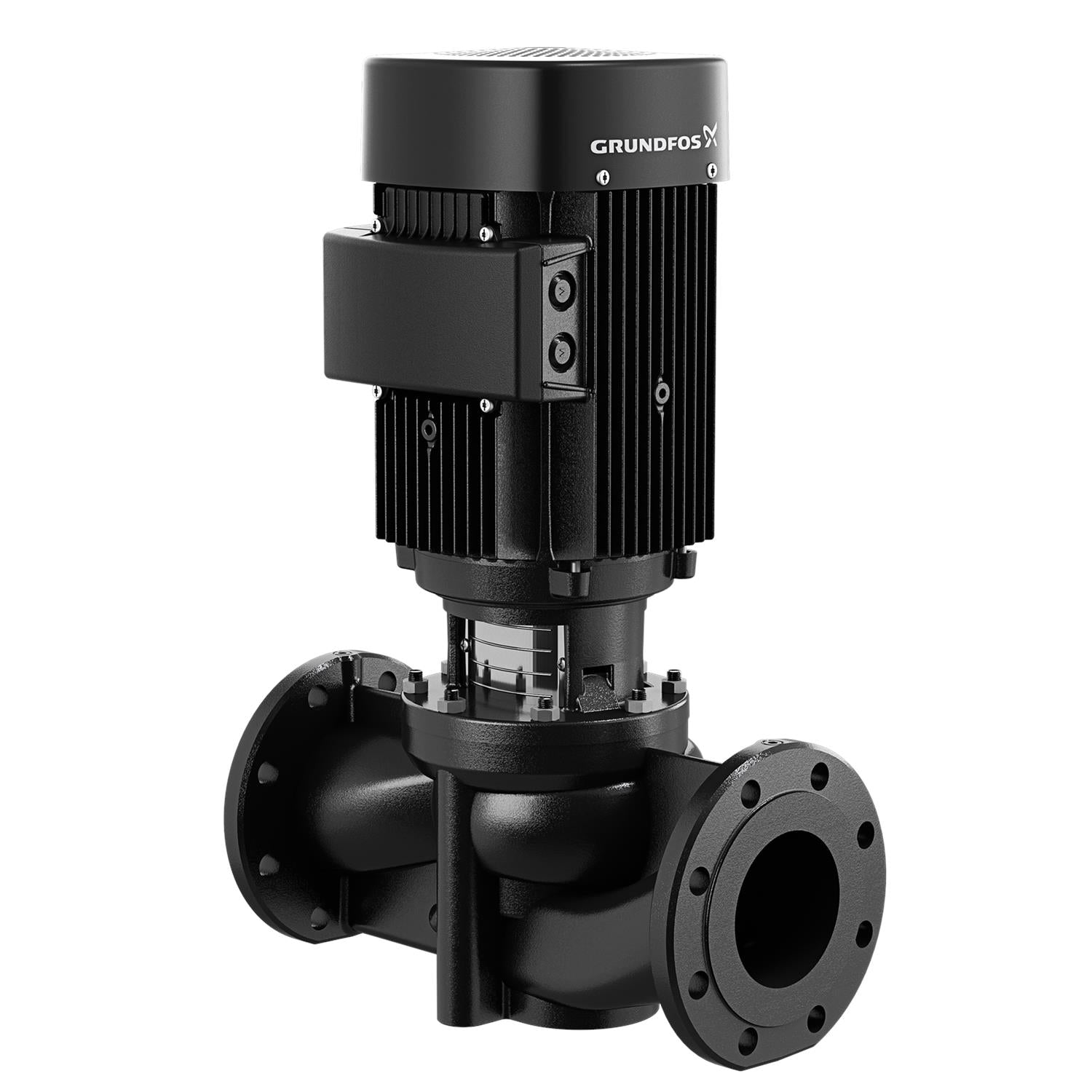

Grundfos 91122115 - TP 80-80/4 A-G-A-BUBE-XX4 Circulator Pump

The Grundfos 91122115 - TP 80-80/4 A-G-A-BUBE-XX4 is a high-performance circulator pump designed for heating and domestic applications. Manufactured by the renowned brand Grundfos, this pump is engineered to deliver reliable and efficient performance in various industrial settings.

Featuring a centrifugal design, the TP series is known for its close-coupled configuration and single-stage operation, making it an ideal choice for a wide range of heating systems. With its robust construction and advanced technology, the TP 80-80/4 ensures optimal fluid circulation, enhancing the efficiency of your heating system.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our team is here to help!

Actual impeller diameter 5.03 in
Connection 3"
Country code Namreg
Curve tolerance ISO 9906:1999 Annex A
Diameter 5.03 in
DOE Pump Energy Index CL 0.93
Flange standard ANSI
Gross weight 93.0 lb
Housing Cast iron
Impeller Stainless steel
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum operating pressure 145.04 psi
n rpm 3"
Pipe connection 3"
Primary shaft seal BUBE
Pump housing Cast iron
Rated flow 163 US gpm
Rated head 20.67 ft
Shaft Product name:TP 80-80/4 A-G-A-BUBE-XX4
Shaft seal BUBE
Standard ANSI

Motor Curves

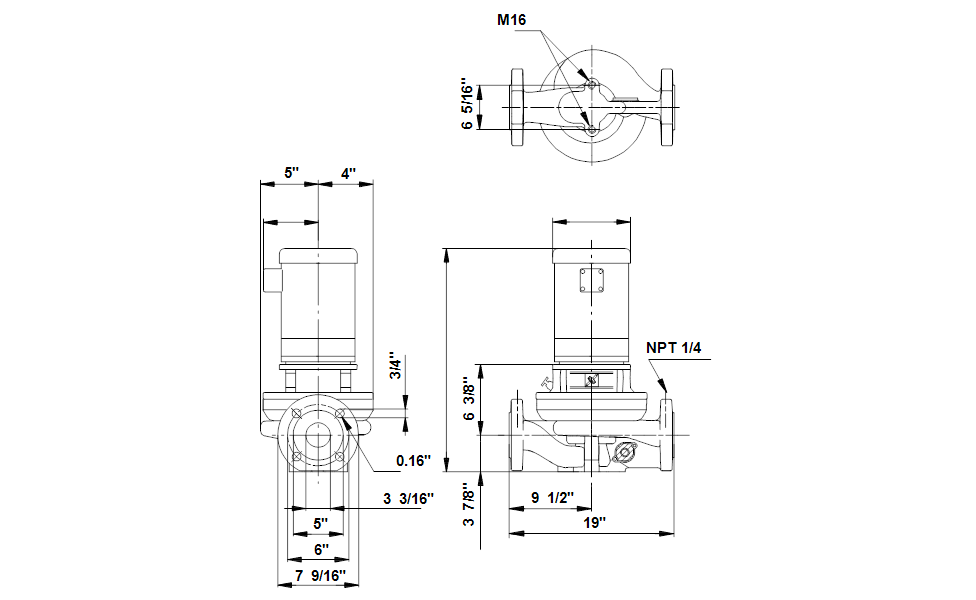

Dimensional Drawing
