Grundfos 96411826 - TP 80-40/4 A-G-Z-BUBE-EY4 | Centrifugal

Save $4,746.60
GRUNDFOSSKU: 96411826

Price:
Sale price$5,801.40 Regular price$10,548.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

TP 80-40/4 A-G-Z-BUBE-EY4 Single-stage centrifugal volute in-line single-head pump: neck rings and impeller made of stainless steel
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal. The motor is a 3-phase AC motor.

Actual impeller diameter 3.72 in
Approvals on motor nameplate UL Recognized Component, CSA
Built-in motor protection NONE
Connection 3"
Country code Namreg
Curve tolerance ISO9906:2012 3B2
Diameter 3.72 in
Flange standard ANSI
Frequency 60 Hz
Full load SF current 2.4/1.2 A
Gross weight 142.0 lb
Housing Bronze
Impeller Stainless steel
Insulation B
Insulation class (IEC 85) B
KVA code L
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum operating pressure 145.04 psi
Minimum ambient temperature -22°F
Motor type Baldor, TEFC
n rpm B
Net weight 107.0 lb
P2 kW 0.5 HP
Phase 3
Pipe connection 3"
Primary shaft seal BUBE
Pump housing Bronze
Range of ambient temperature -22 .. 131 °F
Rated current 2,5-2,4/1 A
Rated flow 119 US gpm
Rated head 8.859 ft
Rated power - P2 0.5 HP
Rated speed 1725 rpm
Rated voltage 3 x 208-230/460 V
Service factor 1.25
Shaft Product name:TP 80-40/4 A-G-Z-BUBE-EY4
Shaft seal BUBE
Standard ANSI
Type Baldor, TEFC

Motor Curves

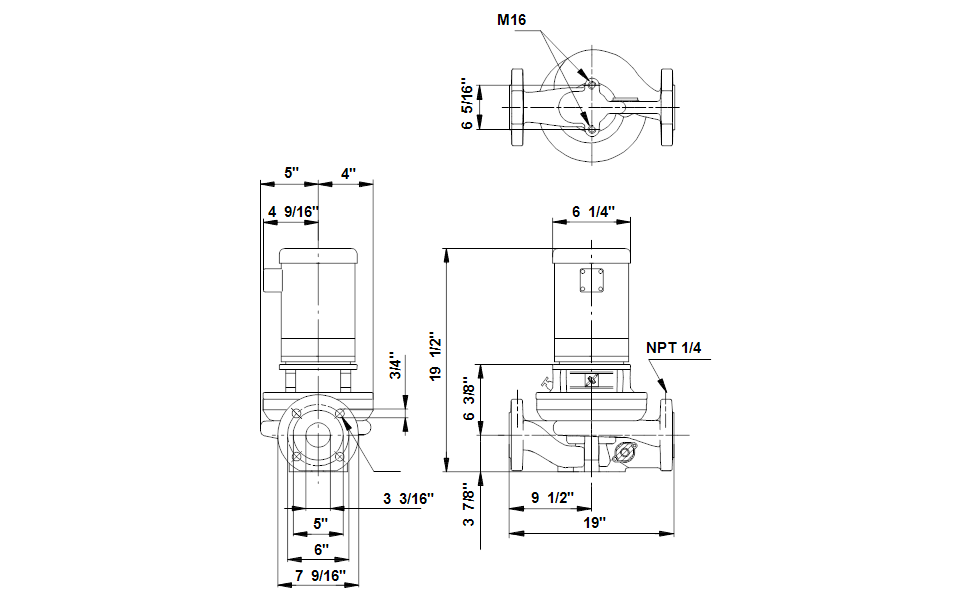

Dimensional Drawing

DWiring Diagram
