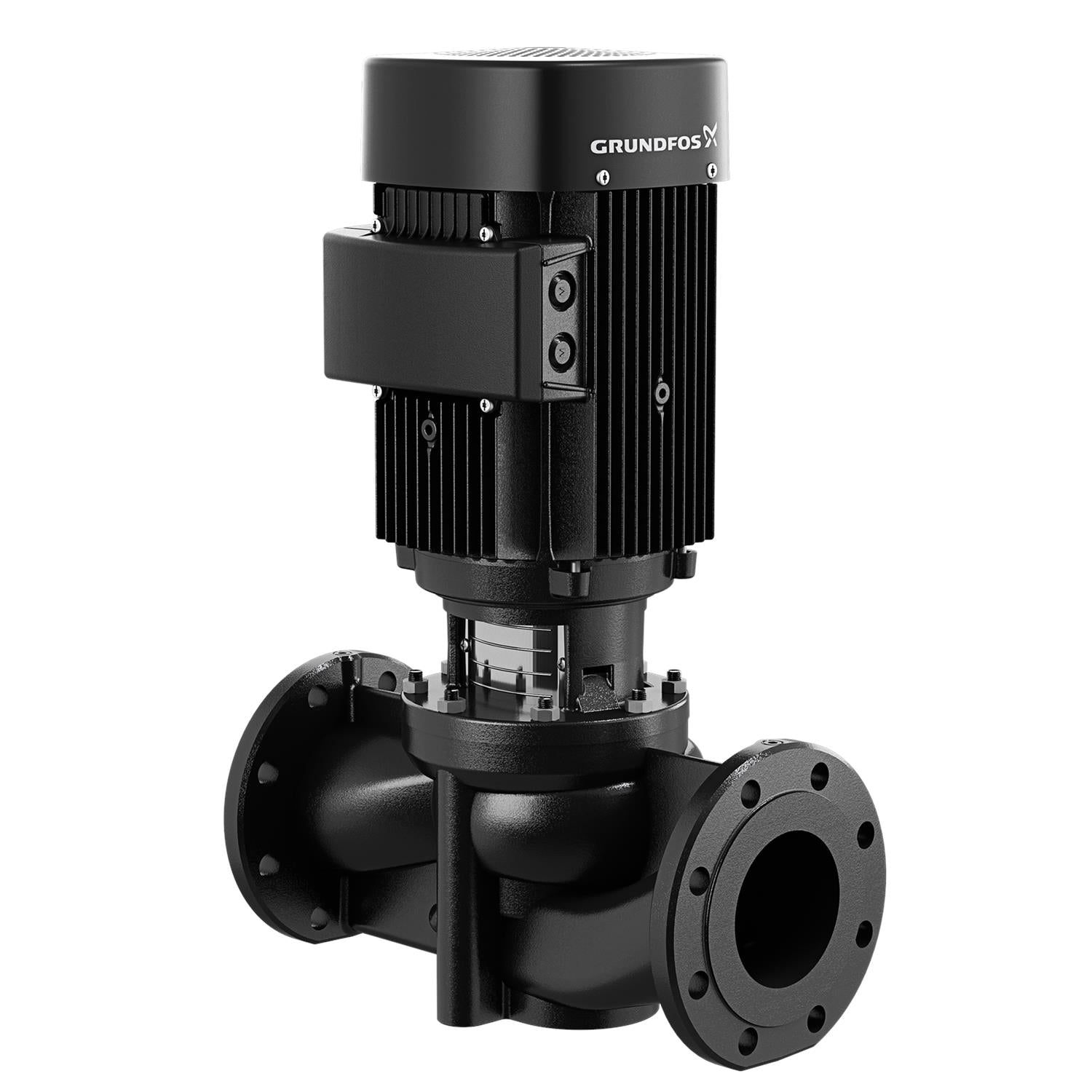

Grundfos 91122114 - TP 80-40/4 A-G-A-BUBE-XY4 Circulator Pump

The Grundfos 91122114 - TP 80-40/4 A-G-A-BUBE-XY4 is a high-performance circulator pump designed for various heating applications in domestic settings. Manufactured by the renowned brand Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for both residential and light commercial use.

This model features a centrifugal design, ensuring optimal fluid circulation with minimal energy consumption. Its close-coupled configuration allows for easy installation and maintenance, while the single-stage operation provides consistent performance across a range of heating systems.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our team is here to help!

Actual impeller diameter 3.72 in
Connection 3"
Country code Namreg
Curve tolerance ISO 9906:1999 Annex A
Diameter 3.72 in
Flange standard ANSI
Gross weight 97.0 lb
Housing Cast iron
Impeller Stainless steel
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum operating pressure 145.04 psi
n rpm 3"
Pipe connection 3"
Primary shaft seal BUBE
Pump housing Cast iron
Rated flow 119 US gpm
Rated head 8.859 ft
Shaft Product name:TP 80-40/4 A-G-A-BUBE-XY4
Shaft seal BUBE
Standard ANSI

Motor Curves

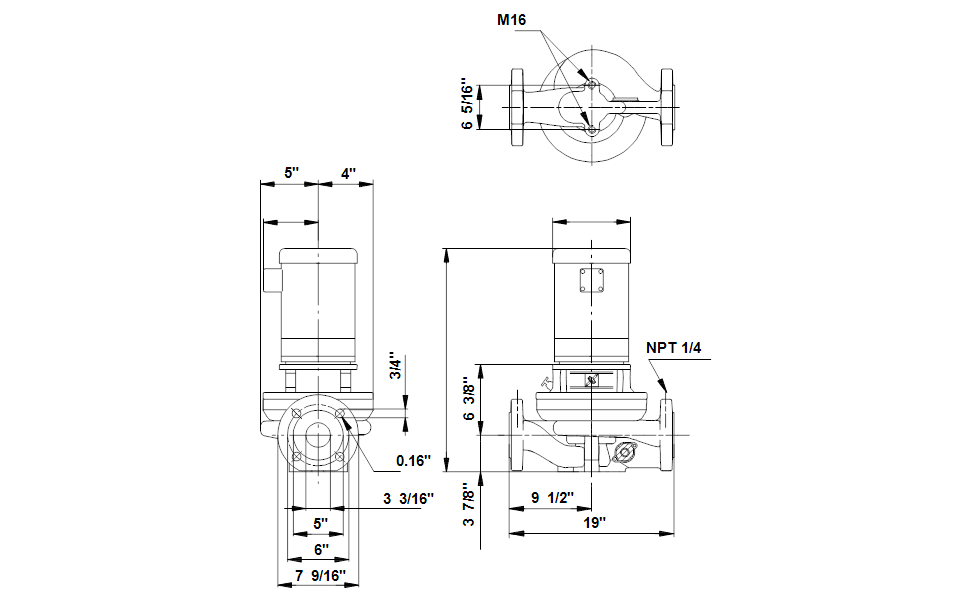

Dimensional Drawing
