Grundfos 96411841 - TP 80-240/2 A-G-Z-BUBE-JX2 | Centrifugal

Save $6,113.70
GRUNDFOSSKU: 96411841

Price:
Sale price$7,472.30 Regular price$13,586.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

TP 80-240/2 A-G-Z-BUBE-JX2 Single-stage centrifugal volute in-line single-head pump: neck rings and impeller made of stainless steel
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal. The motor is a 3-phase AC motor.

Actual impeller diameter 4 in
Approvals on motor nameplate EAC,ECUR,IE3,CURUS,CC122B,CE
Built-in motor protection NONE
Connection 3"
Country code Namreg
Curve tolerance ISO9906:2012 3B2
Diameter 4 in
DOE Pump Energy Index CL 0.89
Flange standard ANSI
Frequency 60 Hz
Full load SF current 9,5-8,95/4,5 A
Gross weight 158.0 lb
Housing Bronze
Impeller Stainless steel
Insulation F
Insulation class (IEC 85) F
KVA code K
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum operating pressure 145.04 psi
Minimum ambient temperature -22°F
Motor efficiency at 1/2 load 0.84
Motor efficiency at 3/4 load 0.865
Motor efficiency at full load 1 0.865
Motor type ML90FA, TEFC
n rpm F
Net weight 153.0 lb
P2 kW 3 HP
Phase 3
Pipe connection 3"
Power factor 1 0.89-0.86
Primary shaft seal BUBE
Pump housing Bronze
Range of ambient temperature -22 .. 140 °F
Rated current 8,35-7,80/3,9 A
Rated flow 154 US gpm
Rated head 52.17 ft
Rated power - P2 3 HP
Rated speed 3510-3530 rpm
Rated voltage 3 x 208-230YY/460Y V
Service factor 1.15
Shaft Product name:TP 80-240/2 A-G-Z-BUBE-JX2
Shaft seal BUBE
Standard ANSI
Type ML90FA, TEFC

Motor Curves

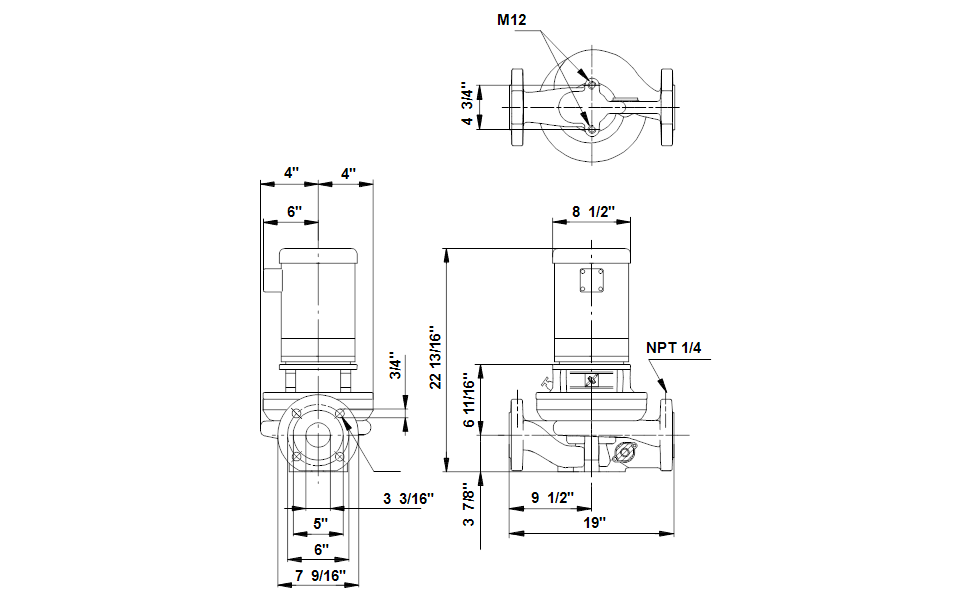

Dimensional Drawing

DWiring Diagram
