Grundfos 96411840 - TP 80-240/2 A-G-Z-BUBE-JX2 | Centrifugal

Save $6,551.55
GRUNDFOSSKU: 96411840

Price:
Sale price$8,007.45 Regular price$14,559.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

TP 80-240/2 A-G-Z-BUBE-JX2 Single-stage centrifugal volute in-line single-head pump: neck rings and impeller made of stainless steel
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal. The motor is a 1-phase AC motor.

Actual impeller diameter 4 in
Approvals on motor nameplate UL Recognized Component, CSA
Built-in motor protection NONE
Connection 3"
Country code Namreg
Curve tolerance ISO9906:2012 3B2
Diameter 4 in
DOE Pump Energy Index CL 0.89
Flange standard ANSI
Frequency 60 Hz
Full load SF current 31,8/18-16,9 A
Gross weight 159.0 lb
Housing Bronze
Impeller Stainless steel
Insulation F
Insulation class (IEC 85) F
KVA code H
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum ambient temperature 104 °F
Maximum operating pressure 145.04 psi
Motor type Baldor, TEFC
n rpm F
Net weight 163.0 lb
P2 kW 3 HP
Phase 1
Pipe connection 3"
Primary shaft seal BUBE
Pump housing Bronze
Rated current 29/16-14,5 A
Rated flow 154 US gpm
Rated head 52.17 ft
Rated power - P2 3 HP
Rated speed 3450 rpm
Rated voltage 1 x 115/208-230 V
Service factor 1.15
Shaft Product name:TP 80-240/2 A-G-Z-BUBE-JX2
Shaft seal BUBE
Standard ANSI
Type Baldor, TEFC

Motor Curves

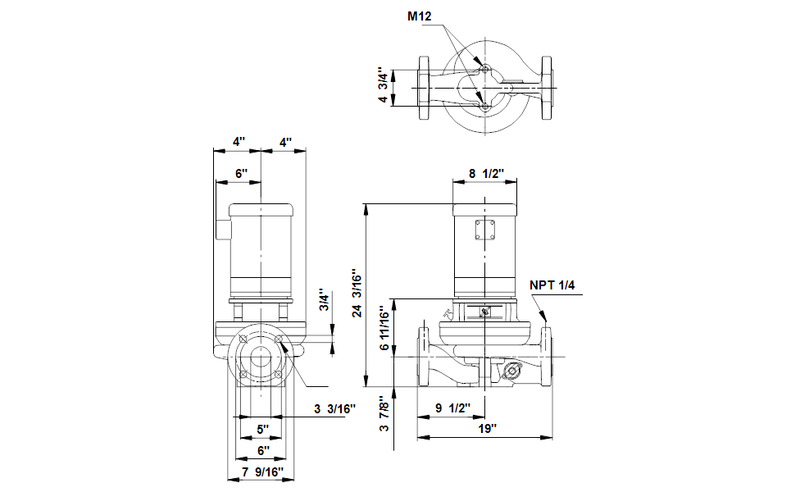

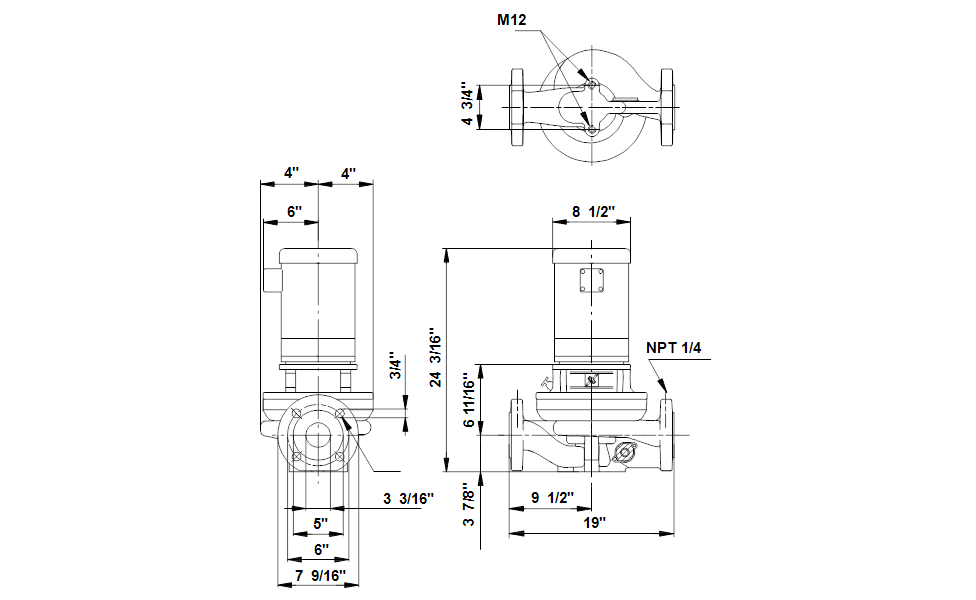

Dimensional Drawing

DWiring Diagram
