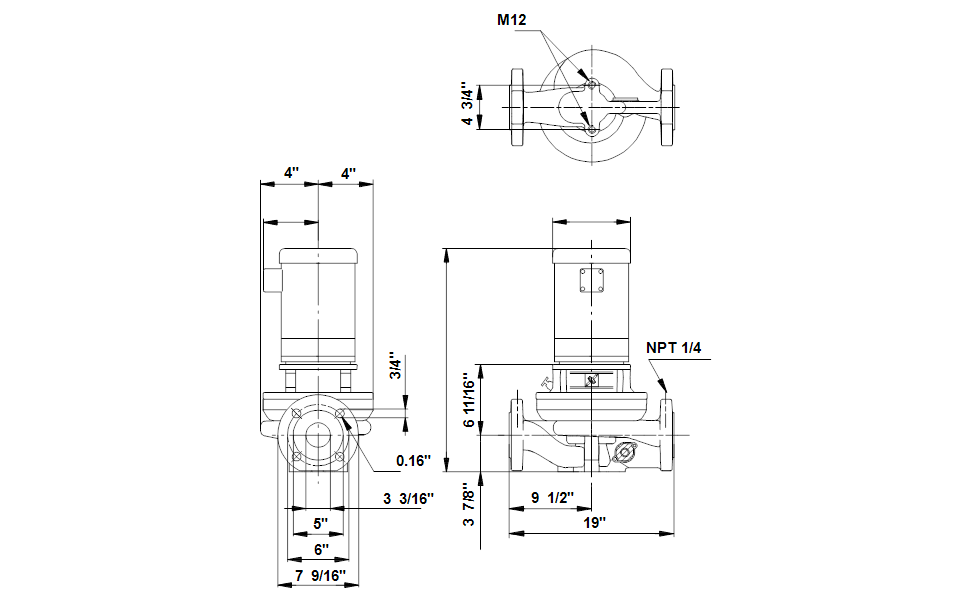

![Grundfos 91122117 - TP 80-240/2 A-G-A-BUBE-XX2]()
![Grundfos 91122117 - TP 80-240/2 A-G-A-BUBE-XX2]()
![Grundfos 91122117 - TP 80-240/2 A-G-A-BUBE-XX2]()
![Grundfos 91122117 - TP 80-240/2 A-G-A-BUBE-XX2]()
Description
TP 80-240/2 A-G-A-BUBE-XX2 | Single-stage centrifugal in-line single-head pump. The in-line design with opposite suction and dis-charge ports enables mounting in pipework or ona concrete foundation. The shaft seal is a corrosion-resistantmaintenance-free mechanical seal.
Maximum operating pressure
145.04 psi
Liquid temperature range
5 .. 284 °F
Gross weight
87.0 lb
Shaft
Product name:TP 80-240/2 A-G-A-BUBE-XX2
Pipe connection
3"
DOE Pump Energy Index CL
0.88
Rated flow
154 US gpm
Flange standard
ANSI
Diameter
4 in
Housing
Cast iron
Rated head
52.17 ft
Actual impeller diameter
4 in
Curve tolerance
ISO 9906:1999 Annex A
Primary shaft seal
BUBE
Connection
3"
Impeller
Stainless steel
Pump housing
Cast iron
Standard
ANSI
Country code
Namreg
Motor Curves
