96411834 · Inline Single-Stage Centrifugal Pump
The Grundfos 96411834 (TP 80-160/2 A-G-Z-BUBE-JX2) is a Inline Single-Stage Centrifugal Pump. Single-stage close-coupled inline pump for HVAC heating and cooling. Suction and discharge on the same centerline. Nominal performance: 150US gpm at 37.73ft. Rated 208-230/460V, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Hot Water Recirculation and more.
Power
3HP
Voltage
208-230/460V
Phase
3.0-Phase
Max Flow
150US gpm
Max Head
37.73ft
Max Pressure
145.04psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
Model Information — 96411834
Series: TP
Impeller Material: Stainless steel
Housing Material: Bronze
Shaft Seal: BQQE
Flange Rating: 125 LB.
Technical Specifications
| Model Number | 96411834 |
| Product Series | TP |
| Series Description | Inline Single-Stage Centrifugal Pump |
| Power | 3HP |
| Voltage | 208-230/460V |
| Phase | 3.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3500rpm |
| Pump Speed | 3515rpm |
| Full Load Current | 7.6-6.8/3.4A |
| Motor Type | BALDOR |
| Motor Efficiency Class | NEMA Premium / IE3 60Hz |
| Insulation Class | F |
| Protection Class (IP) | IP54 Dust/Splashing |
| Nominal Flow | 150US gpm |
| Nominal Head | 37.73ft |
| Max Operating Pressure | 145.04psi |
| Max Fluid Temperature | 284°F |
| Max Ambient Temperature | 104°F |
| Nominal Pipe Bore | 3"inch |
| Pipe Pressure Rating | 125 LB. |
| Pipe Standard | GF |
| Impeller Material | Stainless steel |
| Housing Material | Bronze |
| Shaft Seal | BQQE |
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Hot Water Recirculation
District heating
District cooling
Industrial heating
Cooling
Desalination
Drinking water treatment
Municipal water transportation
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 208-230/460V, 3.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 284°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. TP pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — TP Series
✓ Product Data Sheet — 96411834
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
- Actual impeller diameter
- 3.56 in
- Approvals on motor nameplate
- EAC,ECUR,IE3,CURUS,CC122B,CE
- Built-in motor protection
- NONE
- Connection
- 3"
- Country code
- Namreg
- Curve tolerance
- ISO9906:2012 3B2
- Diameter
- 3.56 in
- DOE Pump Energy Index CL
- 0.89
- Flange standard
- ANSI
- Frequency
- 60 Hz
- Full load SF current
- 9,5-8,95/4,5 A
- Gross weight
- 160.0 lb
- Housing
- Bronze
- Impeller
- Stainless steel
- Insulation
- F
- Insulation class (IEC 85)
- F
- KVA code
- K
- Liquid max temp
- 284°F
- Liquid temperature range
- 5 .. 284 °F
- Maximum operating pressure
- 145.04 psi
- Minimum ambient temperature
- -22°F
- Motor efficiency at 1/2 load
- 0.84
- Motor efficiency at 3/4 load
- 0.865
- Motor efficiency at full load 1
- 0.865
- Motor type
- ML90FA, TEFC
- n rpm
- F
- Net weight
- 156.0 lb
- P2 kW
- 3 HP
- Phase
- 3
- Pipe connection
- 3"
- Power factor 1
- 0.89-0.86
- Primary shaft seal
- BUBE
- Pump housing
- Bronze
- Range of ambient temperature
- -22 .. 140 °F
- Rated current
- 8,35-7,80/3,9 A
- Rated flow
- 150 US gpm
- Rated head
- 37.73 ft
- Rated power - P2
- 3 HP
- Rated speed
- 3510-3530 rpm
- Rated voltage
- 3 x 208-230YY/460Y V
- Service factor
- 1.15
- Shaft
- Product name:TP 80-160/2 A-G-Z-BUBE-JX2
- Shaft seal
- BUBE
- Standard
- ANSI
- Type
- ML90FA, TEFC

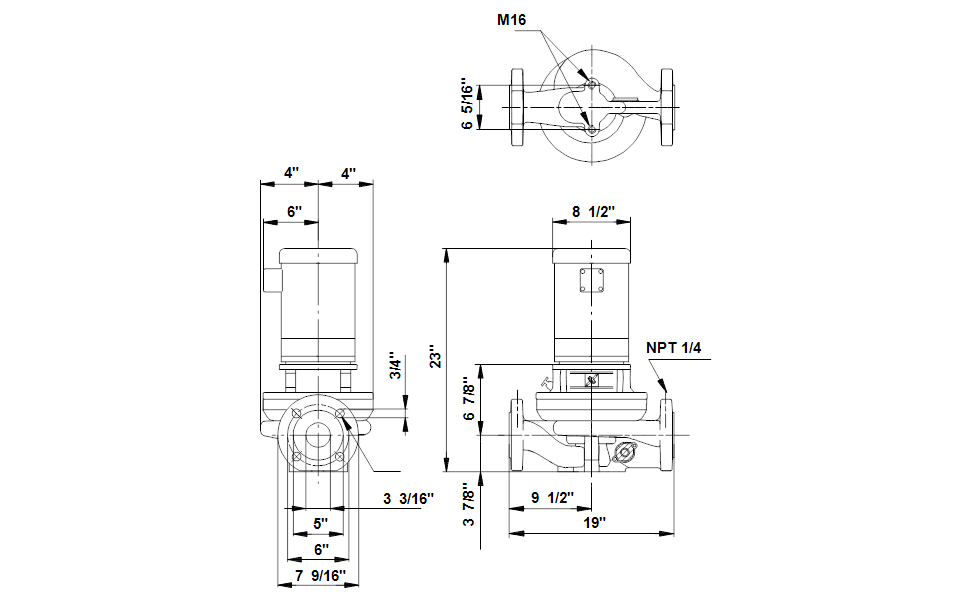

Dimensional Drawing
Wiring Diagram
