Grundfos 96411833 - TP 80-160/2 A-G-Z-BUBE-JX2 | Circulator | Heating | Domestic Use

Save $5,752.80
GRUNDFOSSKU: 96411833

Price:
Sale price$7,031.20 Regular price$12,784.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96411833 - TP 80-160/2 A-G-Z-BUBE-JX2 is a high-performance circulator pump designed for heating and domestic applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability in various industrial settings.

This model features a centrifugal design, making it ideal for close-coupled and in-line installations. With its single-stage operation, the TP 80-160/2 ensures optimal fluid circulation, contributing to effective heating solutions.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 96411833. If you encounter any difficulties in locating the right item, our knowledgeable team is here to help!

Actual impeller diameter 3.56 in
Approvals on motor nameplate UL Recognized Component, CSA
Built-in motor protection NONE
Connection 3"
Country code Namreg
Curve tolerance ISO9906:2012 3B2
Diameter 3.56 in
DOE Pump Energy Index CL 0.89
Flange standard ANSI
Frequency 60 Hz
Full load SF current 31,8/18-16,9 A
Gross weight 161.0 lb
Housing Bronze
Impeller Stainless steel
Insulation F
Insulation class (IEC 85) F
KVA code H
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum ambient temperature 104 °F
Maximum operating pressure 145.04 psi
Motor type Baldor, TEFC
n rpm F
Net weight 167.0 lb
P2 kW 3 HP
Phase 1
Pipe connection 3"
Primary shaft seal BUBE
Pump housing Bronze
Rated current 29/16-14,5 A
Rated flow 150 US gpm
Rated head 37.73 ft
Rated power - P2 3 HP
Rated speed 3450 rpm
Rated voltage 1 x 115/208-230 V
Service factor 1.15
Shaft Product name:TP 80-160/2 A-G-Z-BUBE-JX2
Shaft seal BUBE
Standard ANSI
Type Baldor, TEFC

Motor Curves

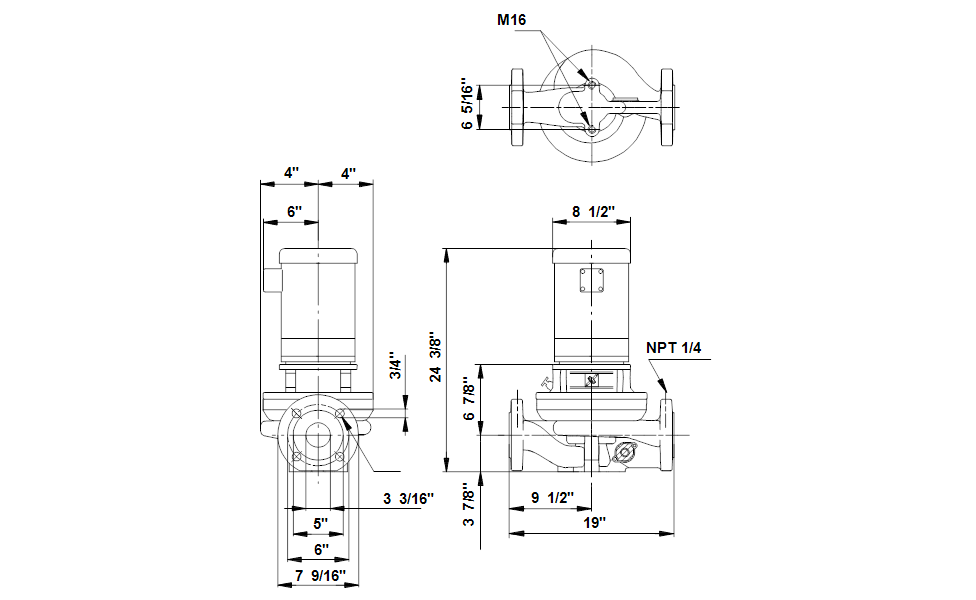

Dimensional Drawing

DWiring Diagram
