Grundfos 96411832 - TP 80-160/2 A-G-A-BUBE-JX2 | Circulator | Heating | Domestic Use

Save $2,557.35
GRUNDFOSSKU: 96411832

Price:
Sale price$3,125.65 Regular price$5,683.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96411832 - TP 80-160/2 A-G-A-BUBE-JX2 is a high-performance circulator pump designed for heating applications in domestic settings. Manufactured by the renowned vendor Grundfos, this pump is ideal for various industrial applications, ensuring efficient and reliable operation.

This model features a centrifugal design, making it suitable for close-coupled and in-line installations. With its single-stage configuration, the TP series is known for its durability and energy efficiency, making it a preferred choice for both residential and commercial heating systems.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team via chat or phone. Let us help you find the perfect solution for your pumping needs!

Actual impeller diameter 3.56 in
Approvals on motor nameplate EAC,ECUR,IE3,CURUS,CC122B,CE
Built-in motor protection NONE
Connection 3"
Country code Namreg
Curve tolerance ISO9906:2012 3B2
Diameter 3.56 in
DOE Pump Energy Index CL 0.89
Flange standard ANSI
Frequency 60 Hz
Full load SF current 9,5-8,95/4,5 A
Gross weight 169.0 lb
Housing Cast iron
Impeller Stainless steel
Insulation F
Insulation class (IEC 85) F
KVA code K
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum operating pressure 145.04 psi
Minimum ambient temperature -22°F
Motor efficiency at 1/2 load 0.84
Motor efficiency at 3/4 load 0.865
Motor efficiency at full load 1 0.865
Motor type ML90FA, TEFC
n rpm F
Net weight 142.0 lb
P2 kW 3 HP
Phase 3
Pipe connection 3"
Power factor 1 0.89-0.86
Primary shaft seal BUBE
Pump housing Cast iron
Range of ambient temperature -22 .. 140 °F
Rated current 8,35-7,80/3,9 A
Rated flow 150 US gpm
Rated head 37.73 ft
Rated power - P2 3 HP
Rated speed 3510-3530 rpm
Rated voltage 3 x 208-230YY/460Y V
Service factor 1.15
Shaft Product name:TP 80-160/2 A-G-A-BUBE-JX2
Shaft seal BUBE
Standard ANSI
Type ML90FA, TEFC

Motor Curves

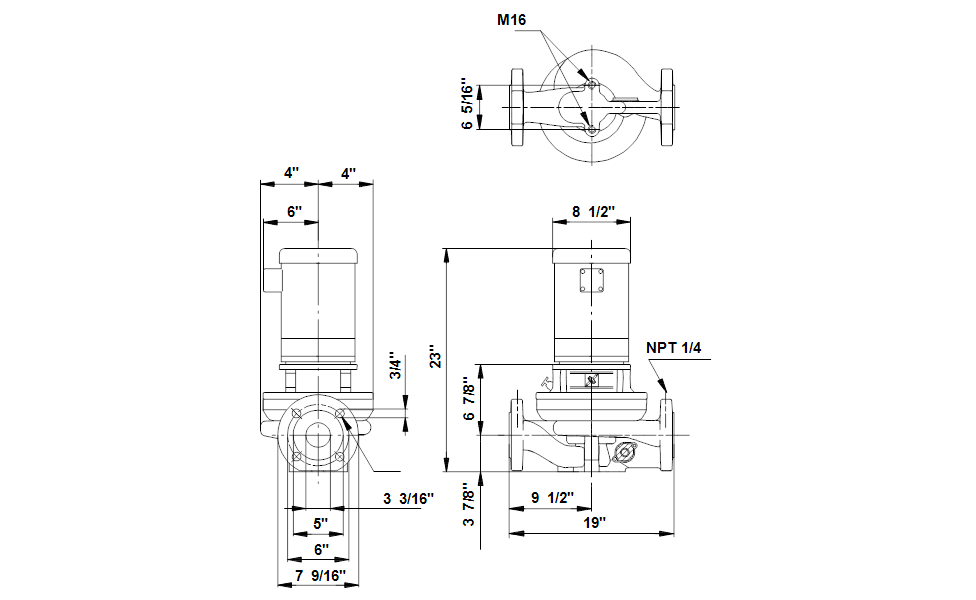

Dimensional Drawing

DWiring Diagram
