Grundfos 96411831 - TP 80-160/2 A-G-A-BUBE-JX2 | Circulator | Heating | Domestic Use

Save $2,974.05
GRUNDFOSSKU: 96411831

Price:
Sale price$3,634.95 Regular price$6,609.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96411831 - TP 80-160/2 A-G-A-BUBE-JX2 Circulator Pump

The Grundfos 96411831 - TP 80-160/2 A-G-A-BUBE-JX2 is a high-performance circulator pump designed for various heating applications in domestic settings. This reliable and efficient pump is part of Grundfos' renowned TP series, known for its durability and energy-saving capabilities.

With its close-coupled design and single-stage centrifugal operation, the TP 80-160/2 ensures optimal fluid circulation, making it an ideal choice for heating systems. Its robust construction and advanced technology make it suitable for both residential and light commercial use.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our team is here to help!

Actual impeller diameter 3.56 in
Approvals on motor nameplate UL Recognized Component, CSA
Built-in motor protection NONE
Connection 3"
Country code Namreg
Curve tolerance ISO9906:2012 3B2
Diameter 3.56 in
DOE Pump Energy Index CL 0.89
Flange standard ANSI
Frequency 60 Hz
Full load SF current 31,8/18-16,9 A
Gross weight 161.0 lb
Housing Cast iron
Impeller Stainless steel
Insulation F
Insulation class (IEC 85) F
KVA code H
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum ambient temperature 104 °F
Maximum operating pressure 145.04 psi
Motor type Baldor, TEFC
n rpm F
Net weight 152.0 lb
P2 kW 3 HP
Phase 1
Pipe connection 3"
Primary shaft seal BUBE
Pump housing Cast iron
Rated current 29/16-14,5 A
Rated flow 150 US gpm
Rated head 37.73 ft
Rated power - P2 3 HP
Rated speed 3450 rpm
Rated voltage 1 x 115/208-230 V
Service factor 1.15
Shaft Product name:TP 80-160/2 A-G-A-BUBE-JX2
Shaft seal BUBE
Standard ANSI
Type Baldor, TEFC

Motor Curves

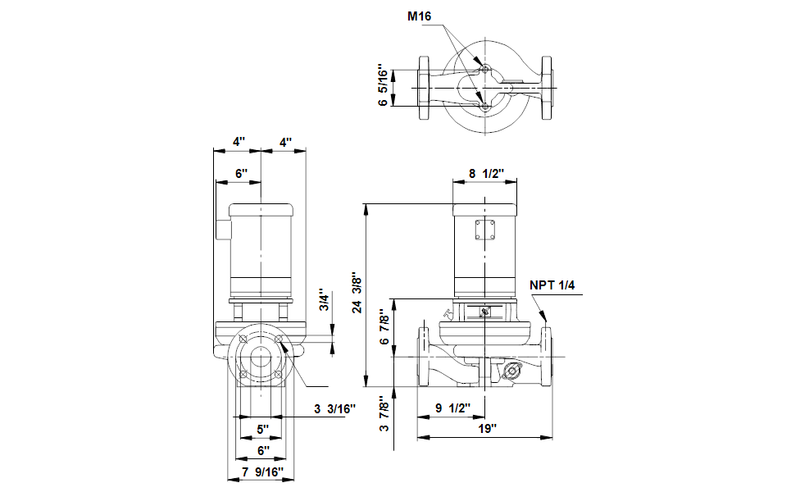

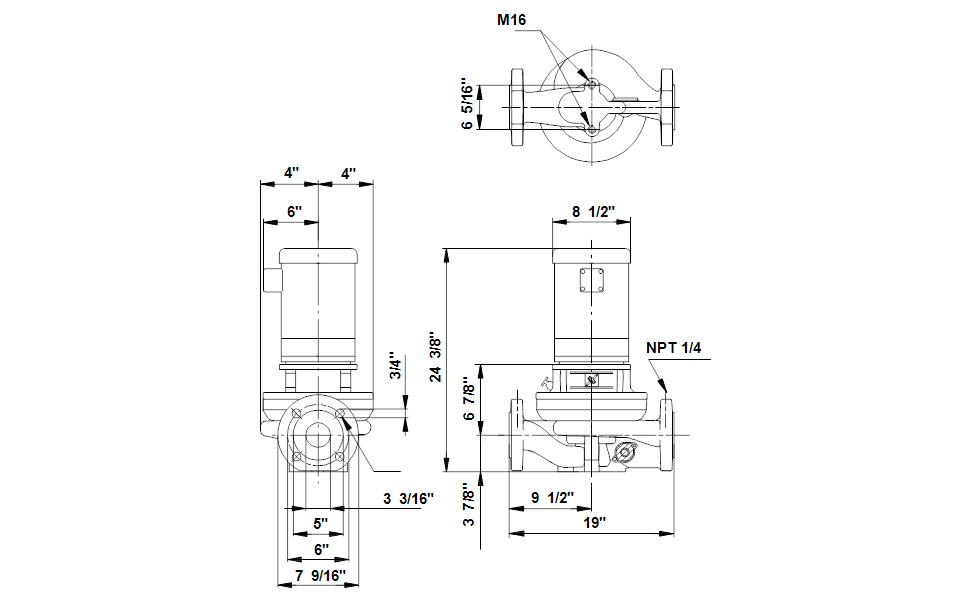

Dimensional Drawing

DWiring Diagram
