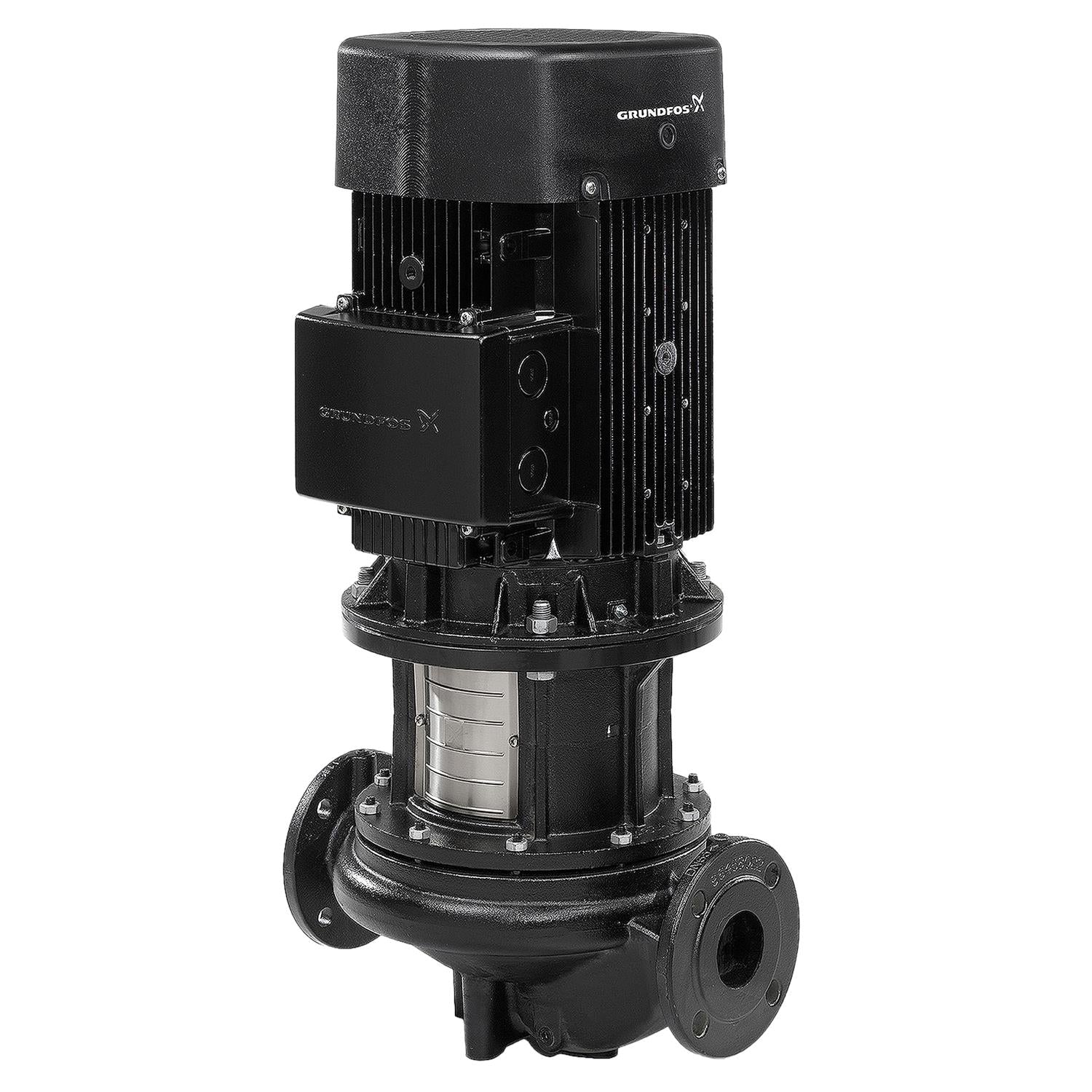

![Grundfos 96108837 - TP 80-110/4 A-F-A-BAQE-IW3]()
![Grundfos 96108837 - TP 80-110/4 A-F-A-BAQE-IW3]()
![Grundfos 96108837 - TP 80-110/4 A-F-A-BAQE-IW3]()
![Grundfos 96108837 - TP 80-110/4 A-F-A-BAQE-IW3]()
![Grundfos 96108837 - TP 80-110/4 A-F-A-BAQE-IW3]()
![Grundfos 96108837 - TP 80-110/4 A-F-A-BAQE-IW3]()
Description
Grundfos 96108837 - TP 80-110/4 A-F-A-BAQE-IW3 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5700396978031
Motor efficiency at full load 1
86.7-86.7 %
IE Efficiency class
IE3
Material code
A
Density
62.29 lb/ft³
Max pressure at stated temp
232 psi / 250 °F
Maximum operating pressure
16 bar
Power factor 1
0.83
Selected liquid temperature
68 °F
Type of connection
DIN
Rated voltage
3 x 380-420D/660-725Y V
Flange size for motor
FF215
Pumped liquid
Water
Starting current
840-840 %
Connect code
F
Liquid temperature range
32 .. 248 °F
Mains frequency
50 Hz
Insulation class (IEC 85)
F
IE efficiency
IE3 86
Motor efficiency at 1/2 load
85.9-85.9 %
Built-in motor protection
NONE
Net weight
180.0 lb
Number of poles
4
Rated speed
1465 rpm
Gross weight
220.0 lb
Rated power - P2
2.2 kW
Size of connection
DN 80
Enclosure class (IEC 34-5)
IP55
Pressure rating for connection
PN 16
Motor efficiency at 3/4 load
87-87 %
Rated current
4.4/2.55 A
Minimum efficiency index, MEI ≥
0.68
Frequency converter
NONE
Motor type
SIEMENS
Range of ambient temperature
-4 .. 131 °F
Pump speed on which pump data are based
1445 rpm
Rated flow
262 US gpm
Version
A
Diameter
6.97 in
Motor
FF215
Length
440 mm
Maximum head
36.09 ft
Housing
Cast iron
Rated head
29.2 ft
Actual impeller diameter
6.97 in
Type
SIEMENS
Curve tolerance
ISO9906:2012 3B2
Connection
PN 16
Impeller
Cast iron
Code for shaft seal
BAQE
Pump housing
Cast iron
Pump version
A
Motor Curves
