Description

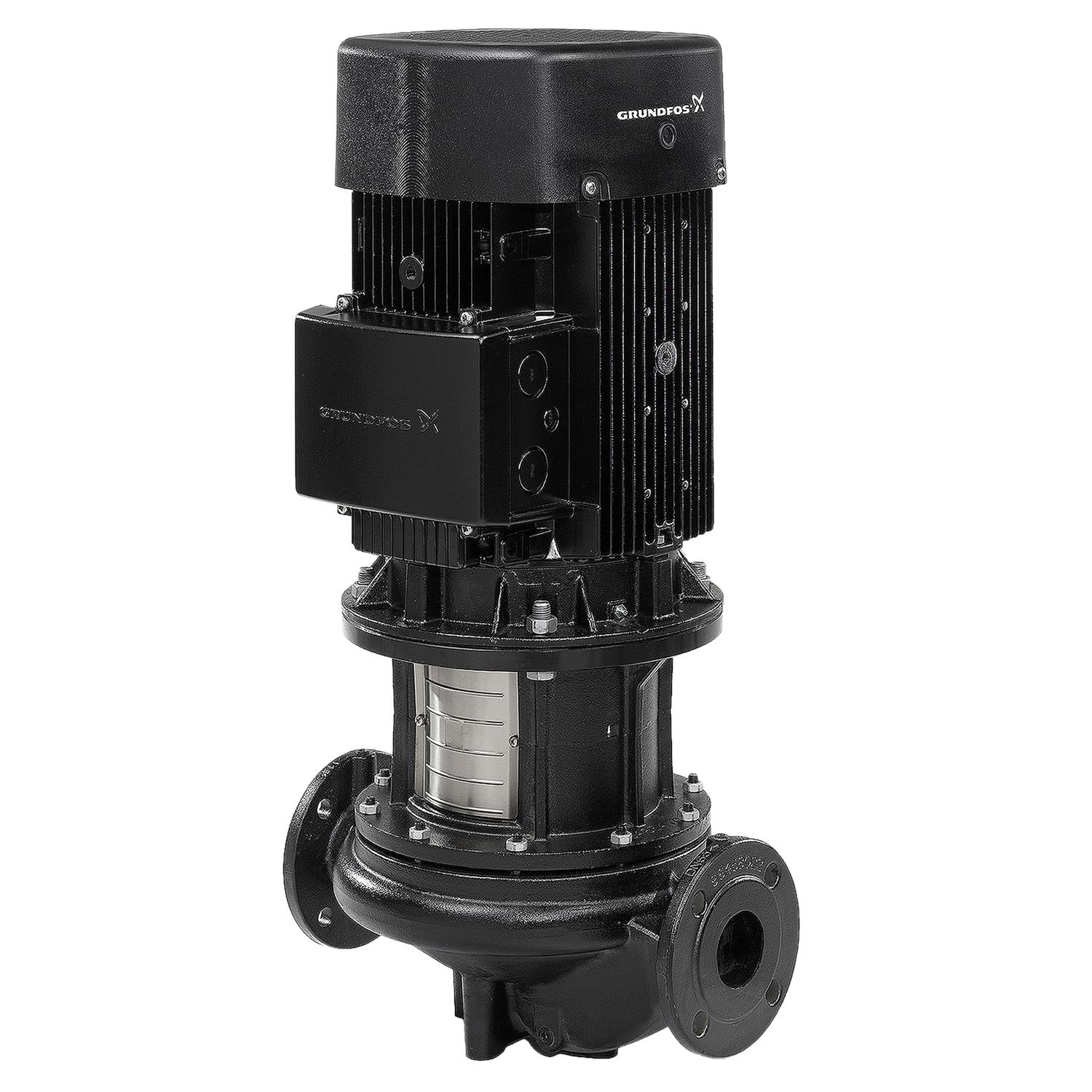

TP 65-90/4 A-F-A-BAQE-FW3 | Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i. e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 16 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled asynchronous motor.
EAN
5700395313956
Material Pricing Group
54
Danish VVS No.
382763091
Norwegian NRF no.
9044222
Swedish RSK No.
5732888
Motor efficiency at full load 1
82.5-82.5 %
IE Efficiency class
IE3
Material code
A
Density
62.29 lb/ft³
Max pressure at stated temp
232 psi / 250 °F
Maximum operating pressure
16 bar
Power factor 1
0.75
Selected liquid temperature
68 °F
Type of connection
DIN
Rated voltage
3 x 220-240D/380-420Y V
Flange size for motor
FF165
Pumped liquid
Water
Starting current
710-710 %
Connect code
F
Liquid temperature range
32 .. 248 °F
Mains frequency
50 Hz
Insulation class (IEC 85)
F
IE efficiency
IE3 82
Motor efficiency at 1/2 load
79.3-79.3 %
Built-in motor protection
NONE
Net weight
112.0 lb
Number of poles
4
Rated speed
1450 rpm
Gross weight
137.0 lb
Rated power - P2
0.75 kW
Size of connection
DN 65
Enclosure class (IEC 34-5)
IP55
Pressure rating for connection
PN 16
Motor efficiency at 3/4 load
82.3-82.3 %
Rated current
3.05/1.75 A
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Motor type
SIEMENS
Range of ambient temperature
-4 .. 131 °F
Pump speed on which pump data are based
1400 rpm
Rated flow
110 US gpm
Version
A
Diameter
6.38 in
Motor
FF165
Length
360 mm
Maximum head
29.53 ft
Housing
Cast iron
Rated head
23.98 ft
Actual impeller diameter
6.38 in
Type
SIEMENS
Curve tolerance
ISO9906:2012 3B2
Connection
PN 16
Impeller
Cast iron
Code for shaft seal
BAQE
Pump housing
Cast iron
Pump version
A
