Description

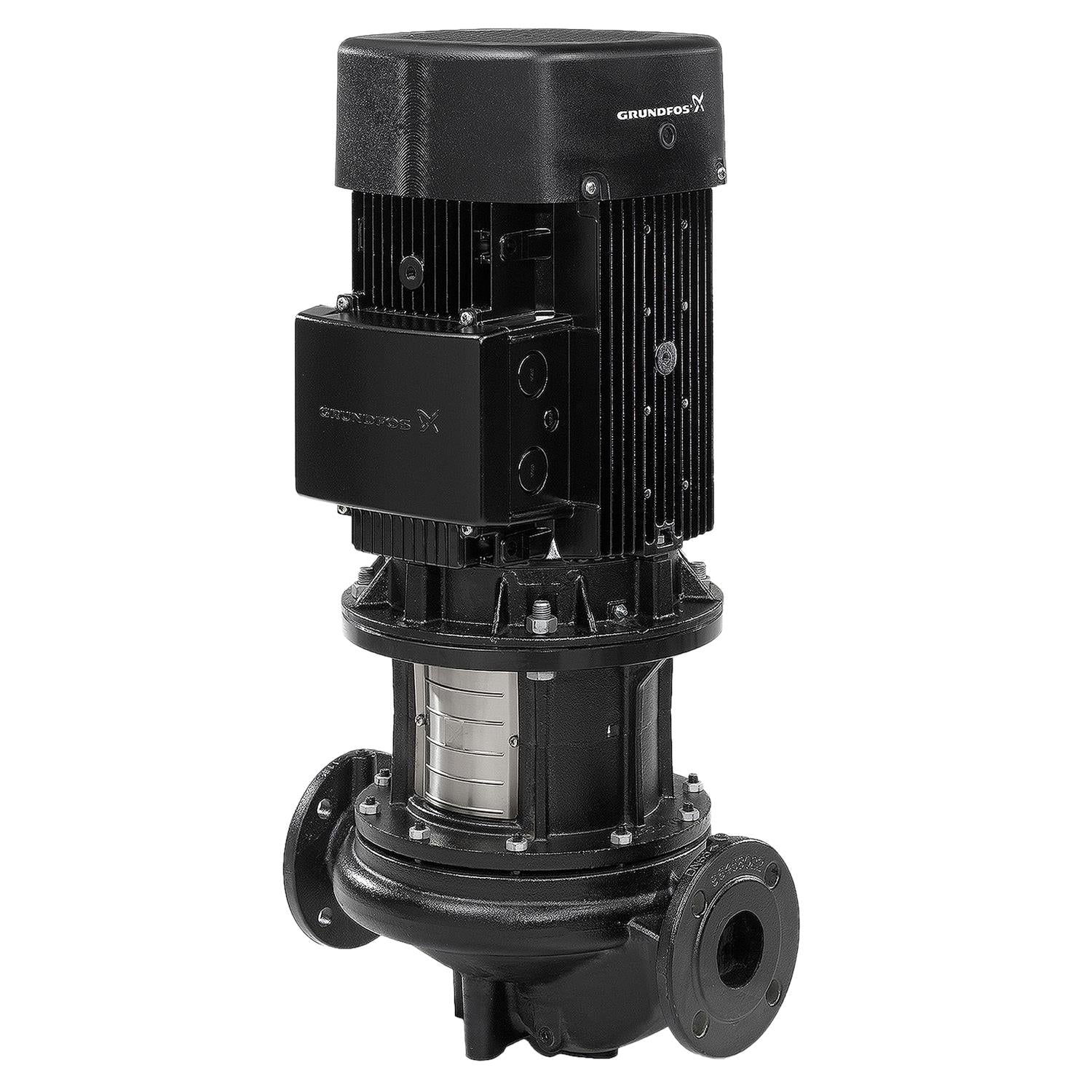

TP 65-410/2 A-F-A-BAQE-MW1 | Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i. e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 16 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled asynchronous motor.
EAN
5700395314717
Material Pricing Group
54
Danish VVS No.
382763411
Motor efficiency at full load 1
90.1-90.4 %
IE Efficiency class
IE3
Material code
A
Density
62.29 lb/ft³
Max pressure at stated temp
232 psi / 250 °F
Maximum operating pressure
16 bar
Power factor 1
0.88-0.86
Selected liquid temperature
68 °F
Type of connection
DIN
Rated voltage
3 x 380-415D/660-690Y V
Flange size for motor
FF265
Pumped liquid
Water
Starting current
780-910 %
Connect code
F
Liquid temperature range
32 .. 248 °F
Mains frequency
50 Hz
Insulation class (IEC 85)
F
Motor efficiency at 1/2 load
90.8-90.4 %
Built-in motor protection
PTC
Net weight
217.0 lb
Number of poles
2
Rated speed
2910-2920 rpm
Gross weight
243.0 lb
Rated power - P2
7.5 kW
Size of connection
DN 65
Enclosure class (IEC 34-5)
55 Dust/Jetting
Pressure rating for connection
PN 16
Motor efficiency at 3/4 load
90.8-90.9 %
Rated current
14
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Motor type
132SB
Range of ambient temperature
-22 .. 140 °F
Pump speed on which pump data are based
2910 rpm
Rated flow
248 US gpm
Version
A
Diameter
6.77 in
Motor
FF265
Length
360 mm
Maximum head
134.5 ft
Housing
Cast iron
Rated head
110.2 ft
Actual impeller diameter
6.77 in
Type
132SB
Curve tolerance
ISO9906:2012 3B2
Connection
PN 16
Impeller
Cast iron
Code for shaft seal
BAQE
Pump housing
Cast iron
Pump version
A
