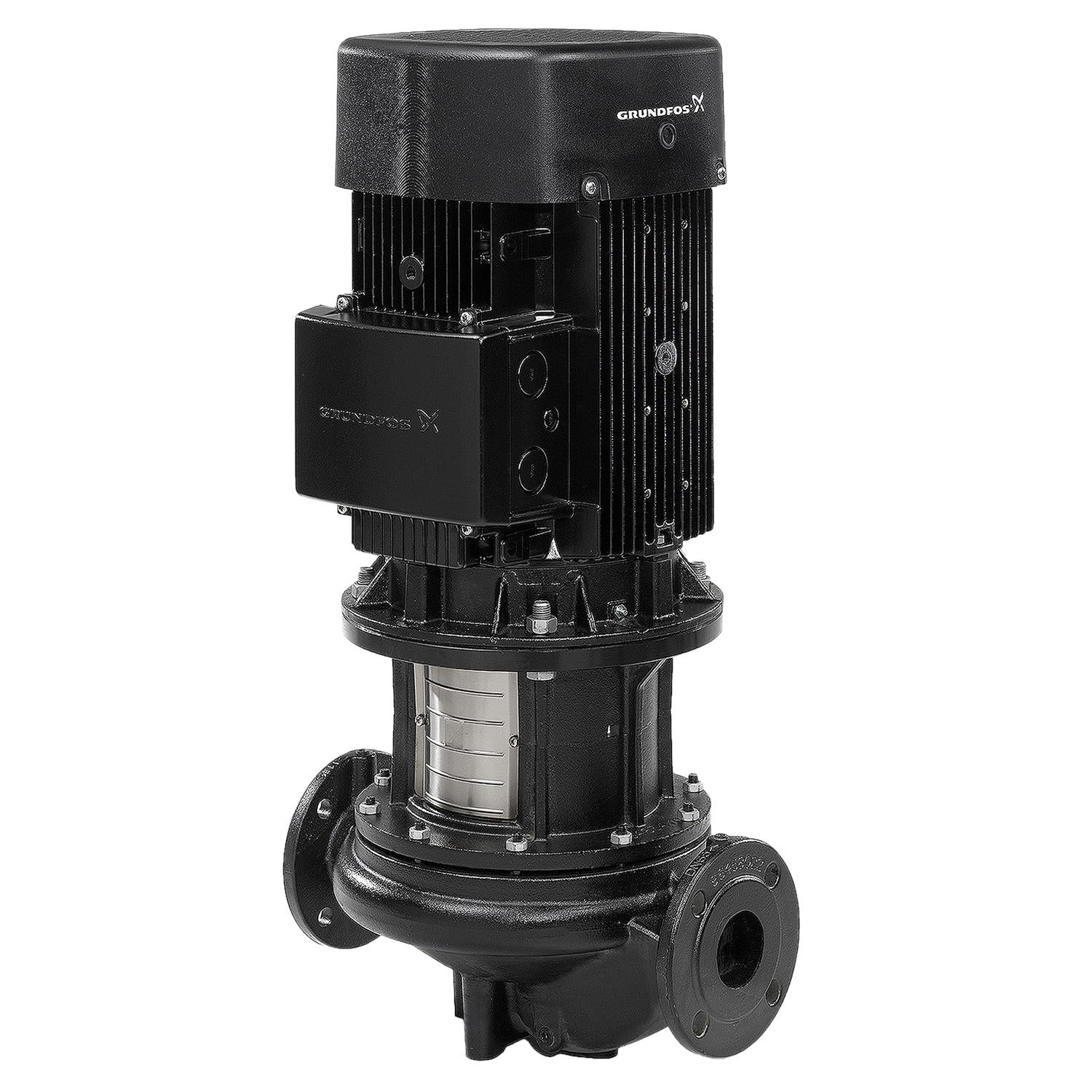

TP 65-190/4 A-F-A-BAQE-JW4 | Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i. e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 16 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled asynchronous motor.
EAN
5700395781151
Material Pricing Group
54
Motor efficiency at full load 1
89.5-89.5 %
IE Efficiency class
IE3 / NEMA Premium
Material code
A
Density
62.29 lb/ft³
Max pressure at stated temp
232 psi / 250 °F
Maximum operating pressure
16 bar
Power factor 1
0.81
Selected liquid temperature
68 °F
Type of connection
DIN
Rated voltage
3 x 440-480Y V
Flange size for motor
FF215
Pumped liquid
Water
Starting current
730-730 %
Connect code
F
Liquid temperature range
32 .. 248 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
IE efficiency
IE3 89
Motor efficiency at 1/2 load
88.9-88.9 %
Built-in motor protection
PTC
Net weight
173.0 lb
Number of poles
4
Rated speed
1765 rpm
Gross weight
214.0 lb
Rated power - P2
3 kW
Size of connection
DN 65
Enclosure class (IEC 34-5)
IP55
Pressure rating for connection
PN 16
Motor efficiency at 3/4 load
89.6-89.6 %
Rated current
5.2 A
Minimum efficiency index, MEI ≥
0.55
Frequency converter
NONE
Motor type
SIEMENS
Range of ambient temperature
-4 .. 131 °F
Pump speed on which pump data are based
1730 rpm
Rated flow
167 US gpm
Version
A
Diameter
7.87 in
Motor
FF215
Length
475 mm
Maximum head
62.34 ft
Housing
Cast iron
Rated head
55.78 ft
Actual impeller diameter
7.87 in
Type
SIEMENS
Curve tolerance
ISO9906:2012 3B2
Connection
PN 16
Impeller
Cast iron
Code for shaft seal
BAQE
Pump housing
Cast iron
Pump version
A
