Description

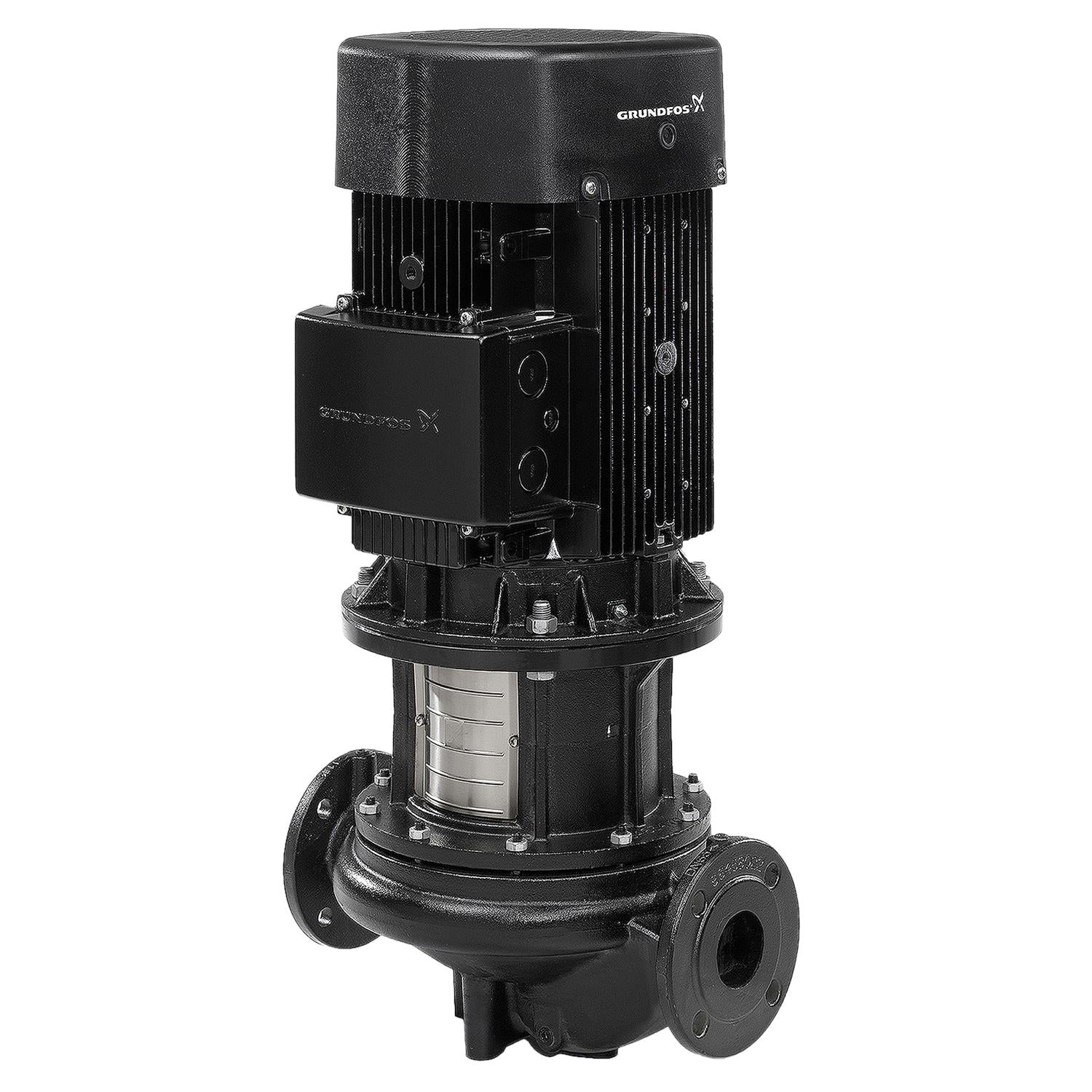

TP 65-110/4 A-F-A-BAQE-GW3 | Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i. e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 16 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled asynchronous motor.
EAN
5700395313963
Material Pricing Group
54
Danish VVS No.
382763111
Norwegian NRF no.
9044223
Swedish RSK No.
5732889
Motor efficiency at full load 1
84.1-84.1 %
IE Efficiency class
IE3
Material code
A
Density
62.29 lb/ft³
Max pressure at stated temp
232 psi / 250 °F
Maximum operating pressure
16 bar
Power factor 1
0.78
Selected liquid temperature
68 °F
Type of connection
DIN
Rated voltage
3 x 220-240D/380-420Y V
Flange size for motor
FF165
Pumped liquid
Water
Starting current
690-690 %
Connect code
F
Liquid temperature range
32 .. 248 °F
Mains frequency
50 Hz
Insulation class (IEC 85)
F
IE efficiency
IE3 84
Motor efficiency at 1/2 load
83.4-83.4 %
Built-in motor protection
NONE
Net weight
139.0 lb
Number of poles
4
Rated speed
1440 rpm
Gross weight
181.0 lb
Rated power - P2
1.1 kW
Size of connection
DN 65
Enclosure class (IEC 34-5)
IP55
Pressure rating for connection
PN 16
Motor efficiency at 3/4 load
84.7-84.7 %
Rated current
4.2/2.4 A
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Motor type
SIEMENS
Range of ambient temperature
-4 .. 131 °F
Pump speed on which pump data are based
1430 rpm
Rated flow
118 US gpm
Version
A
Diameter
7.09 in
Motor
FF165
Length
475 mm
Maximum head
36.09 ft
Housing
Cast iron
Rated head
31.17 ft
Actual impeller diameter
7.09 in
Type
SIEMENS
Curve tolerance
ISO9906:2012 3B2
Connection
PN 16
Impeller
Cast iron
Code for shaft seal
BAQE
Pump housing
Cast iron
Pump version
A
