Grundfos 96411821 - TP 50-240/2 A-G-Z-BUBE-IX2 | Centrifugal

Save $5,138.10
GRUNDFOSSKU: 96411821

Price:
Sale price$6,279.90 Regular price$11,418.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

TP 50-240/2 A-G-Z-BUBE-IX2 Single-stage centrifugal volute in-line single-head pump: neck rings and impeller made of stainless steel
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal. The motor is a 3-phase AC motor.

Actual impeller diameter 3.95 in
Approvals on motor nameplate CE,CURUS,CC122B,IE3,EAC
Built-in motor protection NONE
Connection 2"
Country code Namreg
Curve tolerance ISO9906:2012 3B2
Diameter 3.95 in
DOE Pump Energy Index CL 0.91
Flange standard USA
Frequency 60 Hz
Full load SF current 6,55-6,1/3,05 A
Gross weight 91.0 lb
Housing Bronze
Impeller Stainless steel
Insulation F
Insulation class (IEC 85) F
KVA code H
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum operating pressure 145.04 psi
Minimum ambient temperature -22°F
Motor efficiency at 1/2 load 0.83
Motor efficiency at 3/4 load 0.85
Motor efficiency at full load 1 0.855
Motor type ML90CC, TEFC
n rpm F
Net weight 87.3 lb
P2 kW 2 HP
Phase 3
Pipe connection 2"
Power factor 1 0.88-0.84
Primary shaft seal BUBE
Pump housing Bronze
Range of ambient temperature -22 .. 140 °F
Rated current 5,7-5,4/2,7 A
Rated flow 101 US gpm
Rated head 48.56 ft
Rated power - P2 2 HP
Rated speed 3480-3510 rpm
Rated voltage 3 x 208-230YY/460Y V
Service factor 1.15
Shaft Product name:TP 50-240/2 A-G-Z-BUBE-IX2
Shaft seal BUBE
Standard USA
Type ML90CC, TEFC

Motor Curves

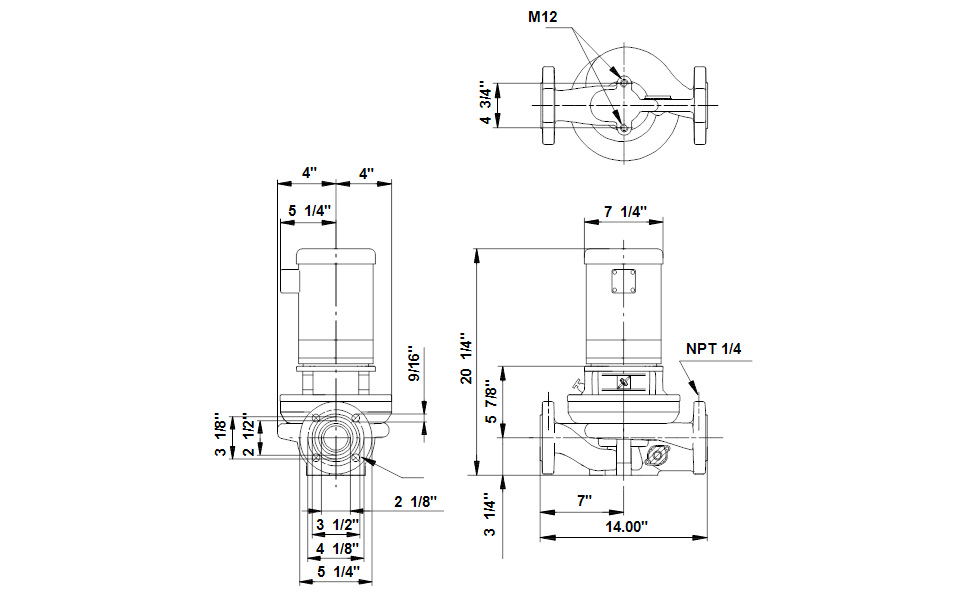

Dimensional Drawing

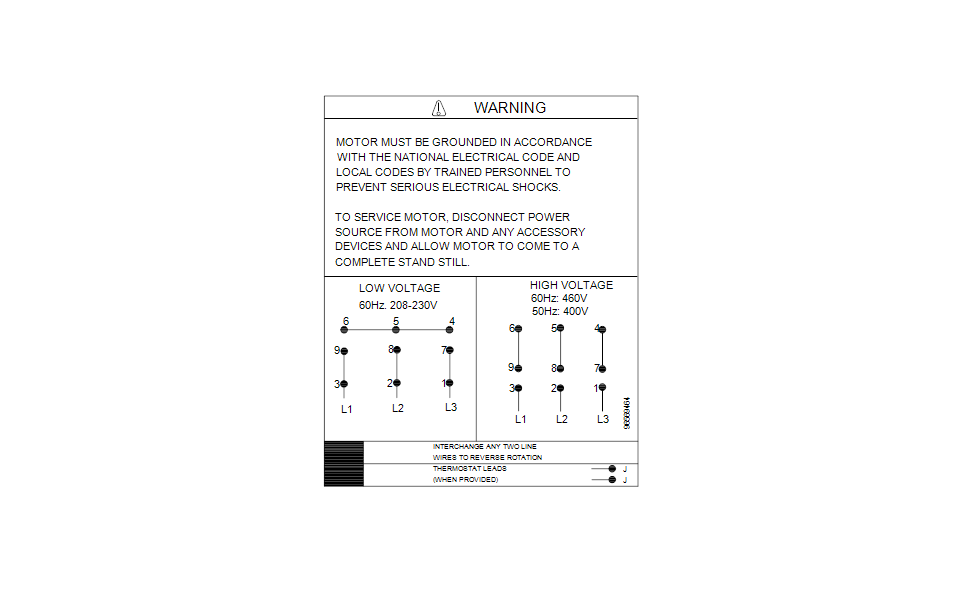

DWiring Diagram
