Grundfos 96411820 - TP 50-240/2 A-G-Z-BUBE-IX2 | Circulator | Heating | Domestic Use

Save $5,310.00
GRUNDFOSSKU: 96411820

Price:
Sale price$6,490.00 Regular price$11,800.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96411820 - TP 50-240/2 A-G-Z-BUBE-IX2 Circulator Pump

The Grundfos 96411820 - TP 50-240/2 A-G-Z-BUBE-IX2 is a high-performance circulator pump designed for heating and domestic applications. Manufactured by Grundfos, a leader in pump technology, this model is ideal for various industrial uses, ensuring efficient and reliable operation.

This circulator pump features a centrifugal design, making it suitable for close-coupled and inline installations. With its single-stage configuration, the TP series is engineered to deliver optimal performance while maintaining energy efficiency.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team via chat or phone. Let us help you find the perfect solution for your pumping needs!

Actual impeller diameter 3.95 in
Approvals on motor nameplate UL Recognized Component, CSA
Built-in motor protection NONE
Connection 2"
Country code Namreg
Curve tolerance ISO9906:2012 3B2
Diameter 3.95 in
DOE Pump Energy Index CL 0.91
Flange standard USA
Frequency 60 Hz
Full load SF current 25.4/12.7 A
Gross weight 92.0 lb
Housing Bronze
Impeller Stainless steel
Insulation F
Insulation class (IEC 85) F
KVA code K
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum ambient temperature 104 °F
Maximum operating pressure 145.04 psi
Motor type Baldor, TEFC
n rpm F
Net weight 97.2 lb
P2 kW 2 HP
Phase 1
Pipe connection 2"
Primary shaft seal BUBE
Pump housing Bronze
Rated current 23/12,7-11,5 A
Rated flow 101 US gpm
Rated head 48.56 ft
Rated power - P2 2 HP
Rated speed 3450 rpm
Rated voltage 1 x 115/208-230 V
Service factor 1.15
Shaft Product name:TP 50-240/2 A-G-Z-BUBE-IX2
Shaft seal BUBE
Standard USA
Type Baldor, TEFC

Motor Curves

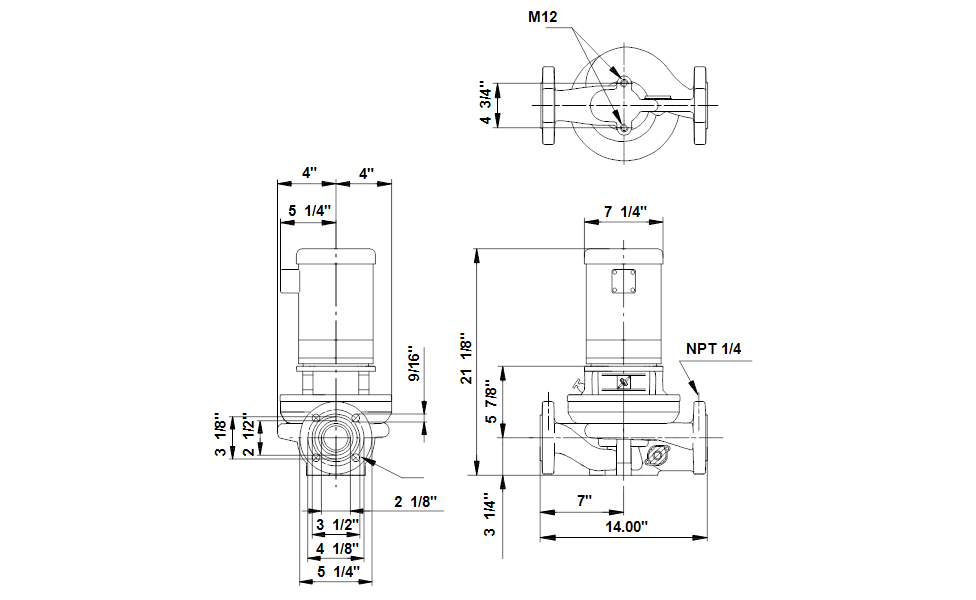

Dimensional Drawing

DWiring Diagram
