Grundfos 96411818 - TP 50-240/2 A-G-A-BUBE-IX2 | Centrifugal

Save $2,952.00
GRUNDFOSSKU: 96411818

Price:
Sale price$3,608.00 Regular price$6,560.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

TP 50-240/2 A-G-A-BUBE-IX2 Single-stage centrifugal volute in-line single-head pump: neck rings and impeller made of stainless steel
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal. The motor is a 1-phase AC motor.

Actual impeller diameter 3.95 in
Approvals on motor nameplate UL Recognized Component, CSA
Built-in motor protection NONE
Connection 2"
Country code Namreg
Curve tolerance ISO9906:2012 3B2
Diameter 3.95 in
DOE Pump Energy Index CL 0.91
Flange standard USA
Frequency 60 Hz
Full load SF current 25.4/12.7 A
Gross weight 79.0 lb
Housing Cast iron
Impeller Stainless steel
Insulation F
Insulation class (IEC 85) F
KVA code K
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum ambient temperature 104 °F
Maximum operating pressure 145.04 psi
Motor type Baldor, TEFC
n rpm F
Net weight 88.4 lb
P2 kW 2 HP
Phase 1
Pipe connection 2"
Primary shaft seal BUBE
Pump housing Cast iron
Rated current 23/12,7-11,5 A
Rated flow 101 US gpm
Rated head 48.56 ft
Rated power - P2 2 HP
Rated speed 3450 rpm
Rated voltage 1 x 115/208-230 V
Service factor 1.15
Shaft Product name:TP 50-240/2 A-G-A-BUBE-IX2
Shaft seal BUBE
Standard USA
Type Baldor, TEFC

Motor Curves

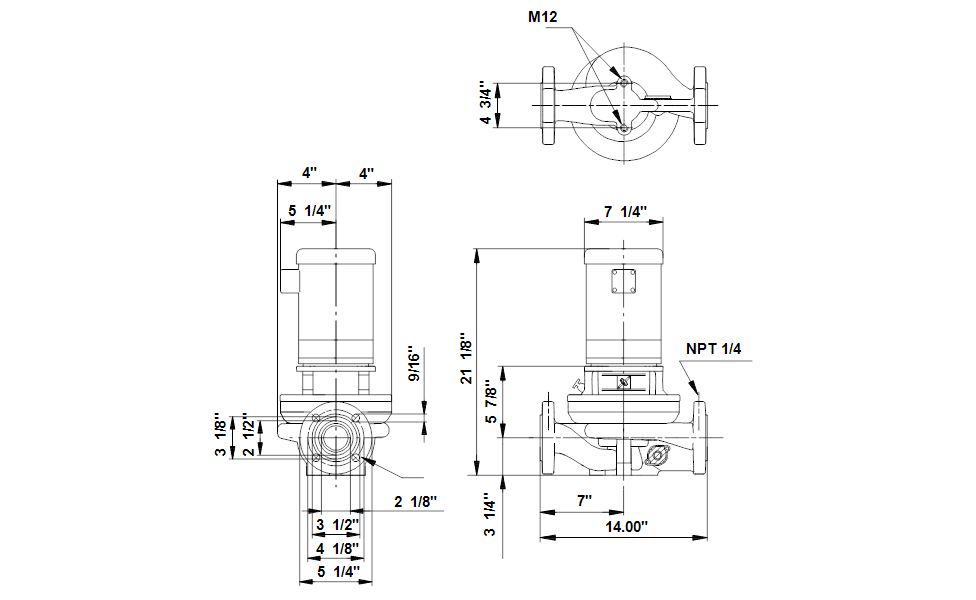

Dimensional Drawing

DWiring Diagram
