Description

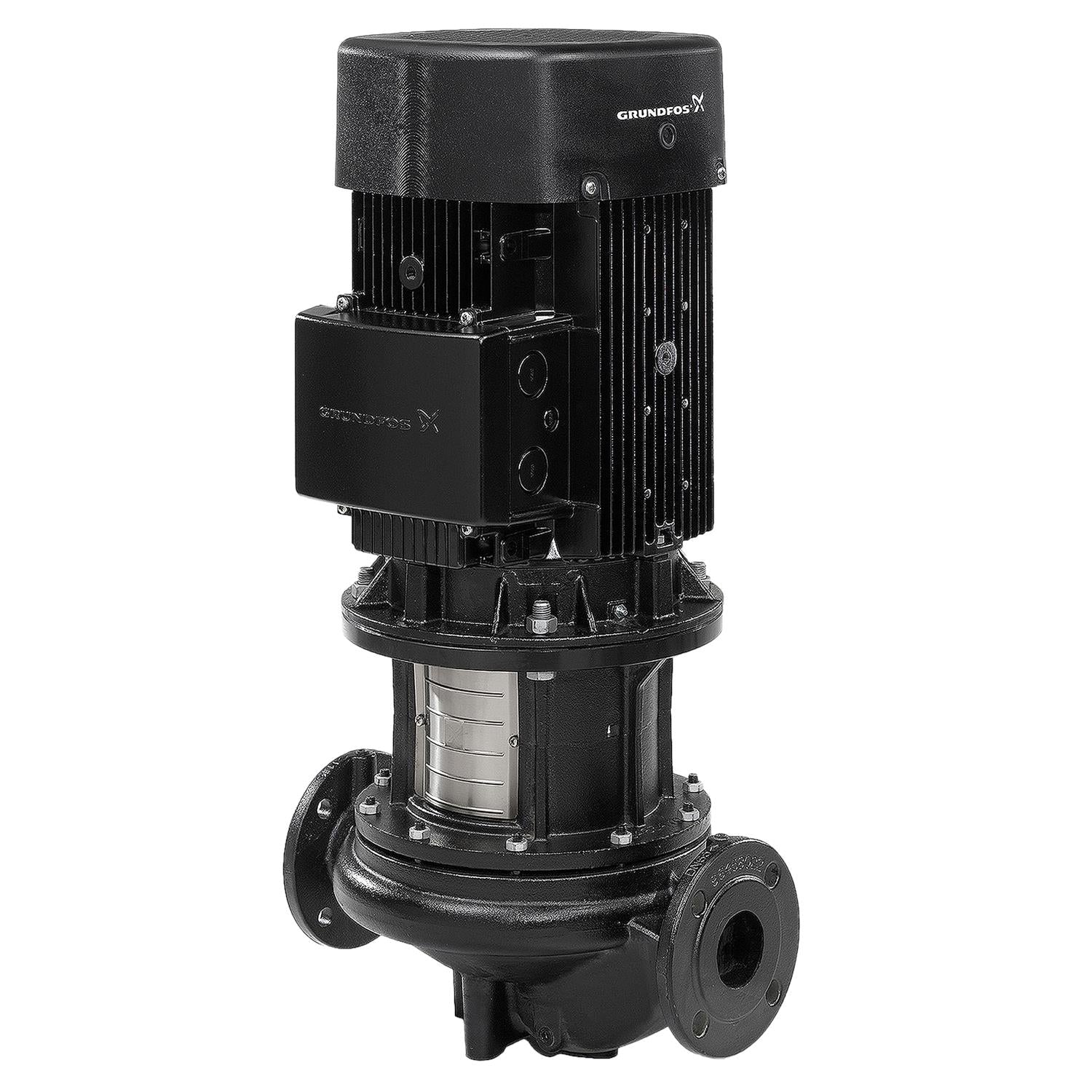

TP 50-190/2 A-F-A-BAQE-HW1 | Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i. e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 16 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled asynchronous motor.
EAN
5700395309300
Material Pricing Group
54
Danish VVS No.
382762191
Norwegian NRF no.
9044193
Swedish RSK No.
5732870
Motor efficiency at full load 1
84.2-84.2 %
IE Efficiency class
IE3
Material code
A
Density
62.29 lb/ft³
Max pressure at stated temp
232 psi / 250 °F
Maximum operating pressure
16 bar
Selected liquid temperature
68 °F
Type of connection
DIN
Rated voltage
3 x 220-240D/380-415Y V
Flange size for motor
FF165
Pumped liquid
Water
Starting current
750-820 %
Connect code
F
Liquid temperature range
32 .. 248 °F
Mains frequency
50 Hz
Insulation class (IEC 85)
F
Motor efficiency at 1/2 load
86.0-83.0 %
Built-in motor protection
NONE
Net weight
109.0 lb
Number of poles
2
Rated speed
2890-2910 rpm
Gross weight
132.0 lb
Rated power - P2
1.5 kW
Size of connection
DN 50
Enclosure class (IEC 34-5)
55 Dust/Jetting
Pressure rating for connection
PN 16
Motor efficiency at 3/4 load
86.4-84.9 %
Rated current
5.70/3.30 A
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Motor type
90SD
Range of ambient temperature
-22 .. 140 °F
Pump speed on which pump data are based
2900 rpm
Rated flow
97.7 US gpm
Version
A
Diameter
4.72 in
Motor
FF165
Length
340 mm
Maximum head
62.34 ft
Housing
Cast iron
Rated head
50.86 ft
Actual impeller diameter
4.72 in
Type
90SD
Curve tolerance
ISO9906:2012 3B2
Connection
PN 16
Impeller
Cast iron
Code for shaft seal
BAQE
Pump housing
Cast iron
Pump version
A
