Description

Grundfos 96411814 - TP 50-160/2 A-G-A-BUBE-HX2 Circulator Pump

The Grundfos 96411814 - TP 50-160/2 A-G-A-BUBE-HX2 is a high-performance circulator pump designed for heating applications in domestic and industrial settings. This reliable pump is engineered by Grundfos, a leader in pump technology, ensuring durability and efficiency for your heating needs.

With its centrifugal design and close-coupled configuration, the TP 50-160/2 offers optimal performance in a compact form. It is ideal for various applications, including residential heating systems, where consistent and efficient circulation is essential.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

Actual impeller diameter 3.43 in
Approvals on motor nameplate UL Recognized Component, CSA
Built-in motor protection NONE
Connection 2"
Country code Namreg
Curve tolerance ISO9906:2012 3B2
Diameter 3.43 in
DOE Pump Energy Index CL 0.91
Flange standard USA
Frequency 60 Hz
Full load SF current 20,4/11,3-10,2 A
Gross weight 74.0 lb
Housing Cast iron
Impeller Stainless steel
Insulation B
Insulation class (IEC 85) B
KVA code K
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum ambient temperature 104 °F
Maximum operating pressure 145.04 psi
Motor type Baldor, TEFC
n rpm B
Net weight 86.4 lb
P2 kW 1.5 HP
Phase 1
Pipe connection 2"
Primary shaft seal BUBE
Pump housing Cast iron
Rated current 17/9,5-8,6 A
Rated flow 92.5 US gpm
Rated head 39.37 ft
Rated power - P2 1.5 HP
Rated speed 3450 rpm
Rated voltage 1 x 115/208-230 V
Service factor 1.3
Shaft Product name:TP 50-160/2 A-G-A-BUBE-HX2
Shaft seal BUBE
Standard USA
Type Baldor, TEFC

Motor Curves

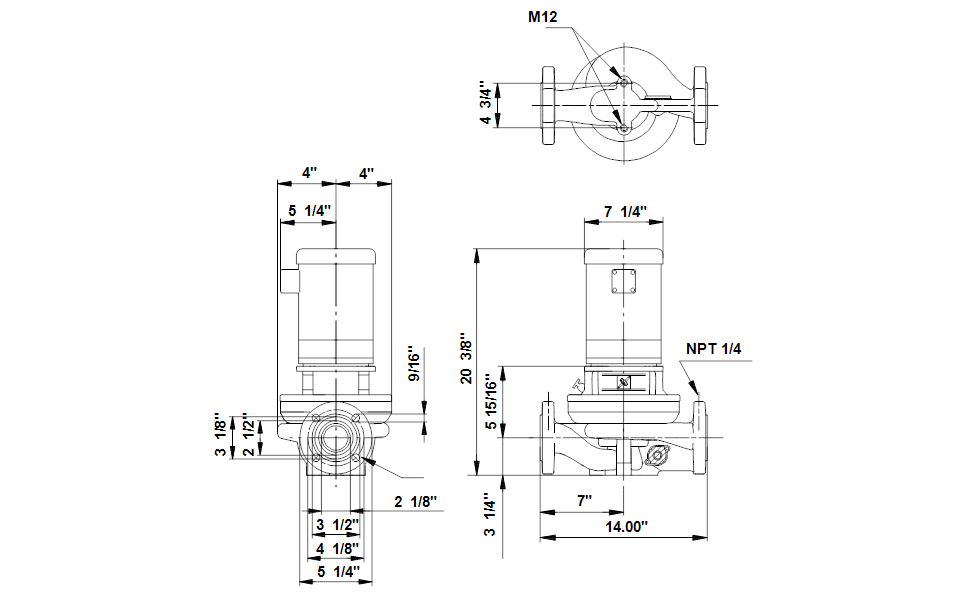

Dimensional Drawing

DWiring Diagram
