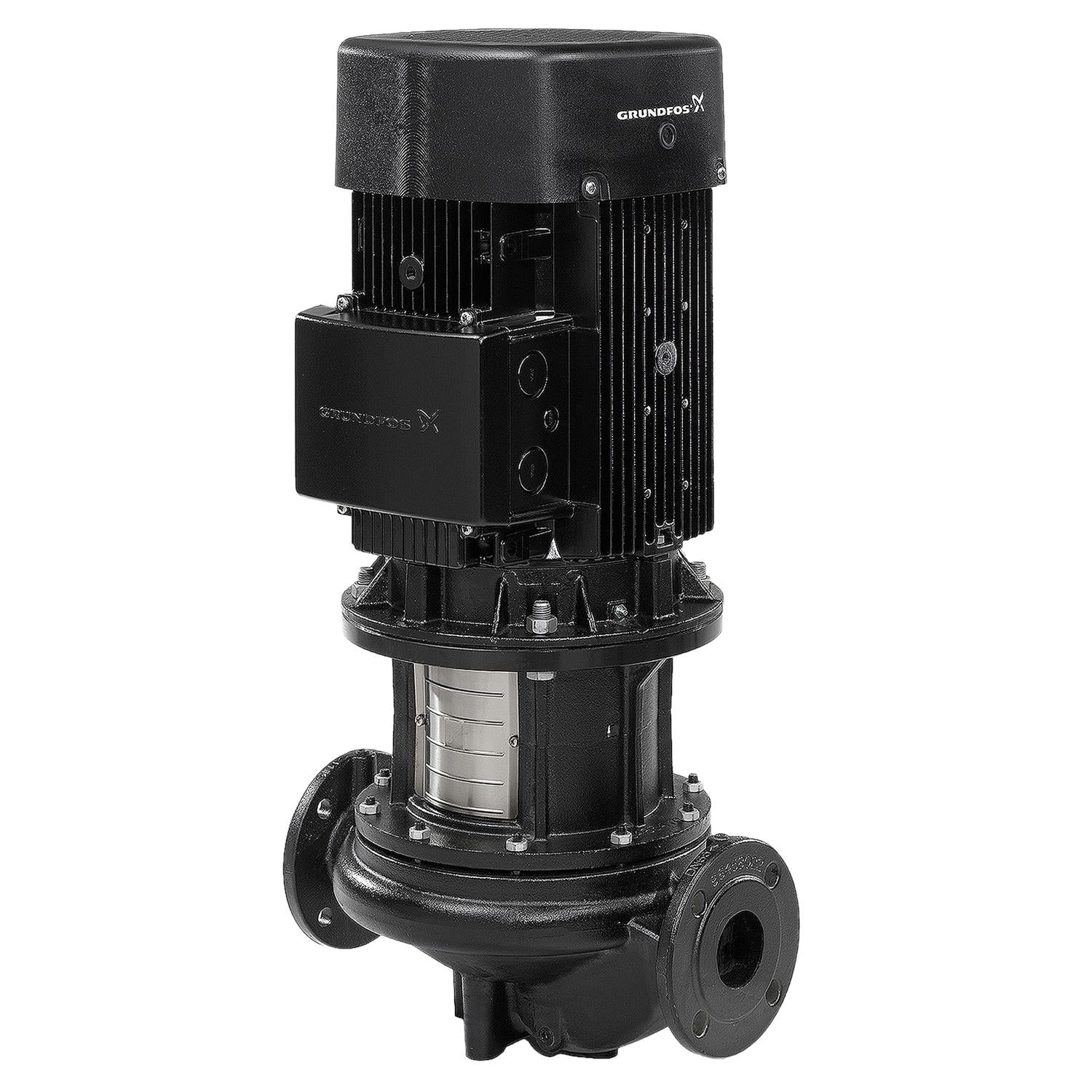

96086914 · Inline Single-Stage Centrifugal Pump
The Grundfos 96086914 (TP 40-300/2 A-F-A-BAQE-JW1) is a Inline Single-Stage Centrifugal Pump. Single-stage close-coupled inline pump for HVAC heating and cooling. Suction and discharge on the same centerline. Nominal performance: 104US gpm at 80.71ft. Rated 380-415DV, 3.0-Phase, 50 Hz. Applications include HVAC: Air Conditioning.
Power
4HP
Voltage
380-415DV
Phase
3.0-Phase
Max Flow
104US gpm
Max Head
80.71ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
Model Information — 96086914
Series: TP
Impeller Material: Cast iron
Housing Material: Cast iron
Shaft Seal: BAQE
Flange Rating: PN 16
Technical Specifications
| Model Number | 96086914 |
| Product Series | TP |
| Series Description | Inline Single-Stage Centrifugal Pump |
| Power | 4HP |
| Voltage | 380-415DV |
| Phase | 3.0-Phase |
| Frequency | 50 Hz |
| Motor Speed | 2900-2920rpm |
| Pump Speed | 2922rpm |
| Full Load Current | 6.3A |
| Motor Type | 100LC |
| Motor Protection | PTC |
| Motor Efficiency Class | IE3 |
| Motor Efficiency | 87.1-87.1% |
| Insulation Class | F |
| Protection Class (IP) | IP55 Dust/Jetting |
| Nominal Flow | 104US gpm |
| Nominal Head | 80.71ft |
| Max Operating Pressure | 232.06psi |
| Max Fluid Temperature | 248°F |
| Max Ambient Temperature | 140°F |
| Min Ambient Temperature | -22°F |
| Nominal Pipe Bore | DN 40 |
| Pipe Pressure Rating | PN 16 |
| Pipe Standard | DIN |
| Impeller Material | Cast iron |
| Housing Material | Cast iron |
| Shaft Seal | BAQE |
Applications
HVAC: Air Conditioning
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 380-415DV, 3.0-Phase, 50 Hz. |
| Temperature limits | Do not exceed max fluid temperature 248°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. TP pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — TP Series
✓ Product Data Sheet — 96086914
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
- EAN
- 5700395308709
- Actual impeller diameter
- 5.94 in
- Built-in motor protection
- PTC
- Code for shaft seal
- BAQE
- Connect code
- F
- Connection
- PN 16
- Curve tolerance
- ISO9906:2012 3B2
- Density
- 62.29 lb/ft³
- Diameter
- 5.94 in
- Enclosure class (IEC 34-5)
- 55 Dust/Jetting
- Flange size for motor
- FF215
- Frequency converter
- NONE
- Gross weight
- 154.0 lb
- Housing
- Cast iron
- IE Efficiency class
- IE3
- Impeller
- Cast iron
- Insulation class (IEC 85)
- F
- Length
- 340 mm
- Liquid temperature range
- 32 .. 248 °F
- Mains frequency
- 50 Hz
- Material code
- A
- Material Pricing Group
- 54
- Max pressure at stated temp
- 232 psi / 250 °F
- Maximum head
- 98.43 ft
- Maximum operating pressure
- 16 bar
- Minimum efficiency index, MEI ≥
- 0.52
- Motor
- FF215
- Motor efficiency at 1/2 load
- 87.7-85.4 %
- Motor efficiency at 3/4 load
- 88.0-87.0 %
- Motor efficiency at full load 1
- 87.1-87.1 %
- Motor type
- 100LC
- Net weight
- 129.0 lb
- Number of poles
- 2
- Power factor 1
- 0.87-0.82
- Pressure rating for connection
- PN 16
- Pump housing
- Cast iron
- Pump speed on which pump data are based
- 2910 rpm
- Pump version
- A
- Pumped liquid
- Water
- Range of ambient temperature
- -22 .. 140 °F
- Rated current
- 6.3 A
- Rated flow
- 104 US gpm
- Rated head
- 80.71 ft
- Rated power - P2
- 3 kW
- Rated speed
- 2900-2920 rpm
- Rated voltage
- 3 x 380-415D V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Selected liquid temperature
- 68 °F
- Size of connection
- DN 40
- Starting current
- 840-920 %
- Type
- 100LC
- Type of connection
- DIN
- Version
- A
