Name: Grundfos 96758129 - TP 40-240/2 A-G-A-RUUE-GX2 | Centrifugal
Brand: Grundfos
SKU: 96758129
Price: 2876.0 USD
Availability: InStock

Image shown may not be actual product

Grundfos 96758129 - TP 40-240/2 A-G-A-RUUE-GX2 | Centrifugal

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

96758129 · Inline Single-Stage Centrifugal Pump

TP1.5HP208-230YY/460YV3.0-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/JettingStainless steel

The Grundfos 96758129 (TP 40-240/2 A-G-A-RUUE-GX2) is a Inline Single-Stage Centrifugal Pump. Single-stage close-coupled inline pump for HVAC heating and cooling. Suction and discharge on the same centerline. Nominal performance: 63US gpm at 51.18ft. Rated 208-230YY/460YV, 3.0-Phase, 60 Hz. Applications include HVAC: Heating.

Power

1.5HP

Voltage

208-230YY/460YV

Phase

3.0-Phase

Max Flow

63US gpm

Max Head

51.18ft

Max Pressure

145.04psi

Grundfos

World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945

Industrial Grade

NEMA Premium / IE3 60Hz motor — reduces operating cost over service life

Authorized Distributor

Genuine Grundfos product — full manufacturer warranty coverage

Expert Support

Technical help available — call (781) 281-8905 or chat

Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 96758129

Series: TP

Impeller Material: Stainless steel

Housing Material: Cast iron

Shaft Seal: RUUE

Technical Specifications

Model Number	96758129
Product Series	TP
Series Description	Inline Single-Stage Centrifugal Pump
Power	1.5HP
Voltage	208-230YY/460YV
Phase	3.0-Phase
Frequency	60 Hz
Motor Speed	3450-3480rpm
Full Load Current	4,70-4,60/2,30A
Motor Type	80BA
Motor Efficiency Class	NEMA Premium / IE3 60Hz
Motor Efficiency	IE3 84,0%
Insulation Class	F
Protection Class (IP)	IP55 Dust/Jetting
Nominal Flow	63US gpm
Nominal Head	51.18ft
Max Operating Pressure	145.04psi
Max Fluid Temperature	140°F
Max Ambient Temperature	140°F
Min Ambient Temperature	-22°F
Nominal Pipe Bore	1 1/2"
Pipe Standard	USA
Impeller Material	Stainless steel
Housing Material	Cast iron
Shaft Seal	RUUE

Applications

HVAC: Heating

Important Notices

Electrical	Verify supply voltage, phase, and frequency match nameplate before installation: 208-230YY/460YV, 3.0-Phase, 60 Hz.
Temperature limits	Do not exceed max fluid temperature 140°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running	Do not run dry. TP pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance	Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.

Documentation

✓ Installation and Operating Manual (IOM) — TP Series

✓ Product Data Sheet — 96758129

✓ Service Manual and Spare Parts List

Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.

Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.

Grundfos 96758129 - TP 40-240/2 A-G-A-RUUE-GX2 | Centrifugal

Description

Genuine Grundfos Part

Full Traceability

Authorized Source

Confirm Compatibility

Technical Support Available

Contact for Availability

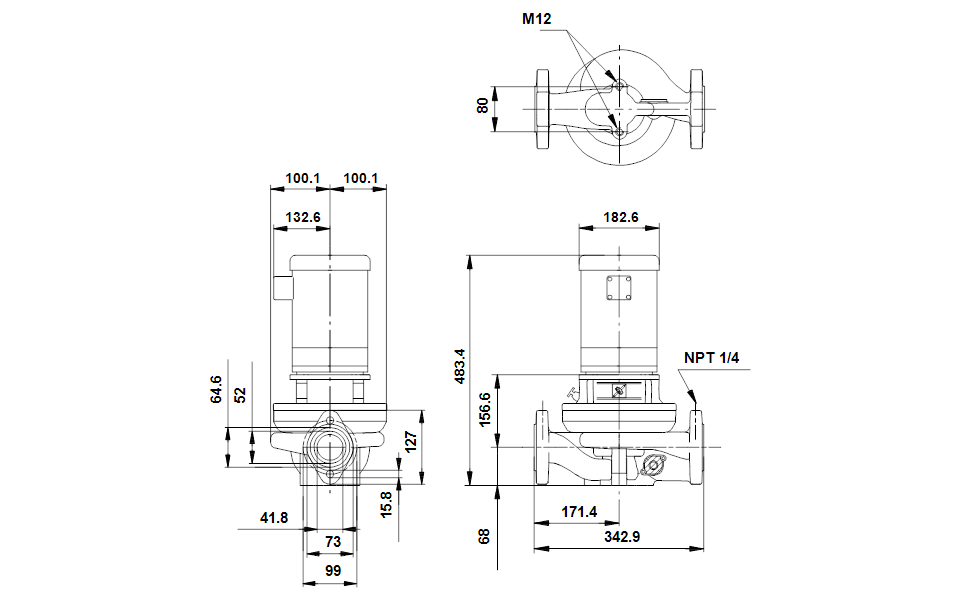

Dimensional Drawing
