Grundfos 96411805 - TP 40-240/2 A-G-Z-BUBE-HX2 | Centrifugal

Save $4,367.25
GRUNDFOSSKU: 96411805

Price:
Sale price$5,337.75 Regular price$9,705.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

TP 40-240/2 A-G-Z-BUBE-HX2 Single-stage centrifugal volute in-line single-head pump: neck rings and impeller made of stainless steel
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal. The motor is a 3-phase AC motor.

Actual impeller diameter 3.86 in
Approvals on motor nameplate CE,CURUS,IE3,EAC
Built-in motor protection NONE
Connection 1 1/2"
Country code Namreg
Curve tolerance ISO9906:2012 3B2
Diameter 3.86 in
DOE Pump Energy Index CL 0.86
Flange standard USA
Frequency 60 Hz
Full load SF current 5,2-5,1/2,55 A
Gross weight 76.0 lb
Housing Bronze
Impeller Stainless steel
Insulation F
Insulation class (IEC 85) F
KVA code G
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum operating pressure 145.04 psi
Minimum ambient temperature -22°F
Motor efficiency at 1/2 load 0.82
Motor efficiency at 3/4 load 83.5-81.0 %
Motor efficiency at full load 1 0.84
Motor type ML80BA, TEFC
n rpm F
Net weight 79.2 lb
P2 kW 1.5 HP
Phase 3
Pipe connection 1 1/2"
Power factor 1 0.84-0.75
Primary shaft seal BUBE
Pump housing Bronze
Range of ambient temperature -22 .. 140 °F
Rated current 4,70-4,60/2,30 A
Rated flow 63 US gpm
Rated head 51.18 ft
Rated power - P2 1.5 HP
Rated speed 3450-3480 rpm
Rated voltage 3 x 208-230YY/460Y V
Service factor 1.15
Shaft Product name:TP 40-240/2 A-G-Z-BUBE-HX2
Shaft seal BUBE
Standard USA
Type ML80BA, TEFC

Motor Curves

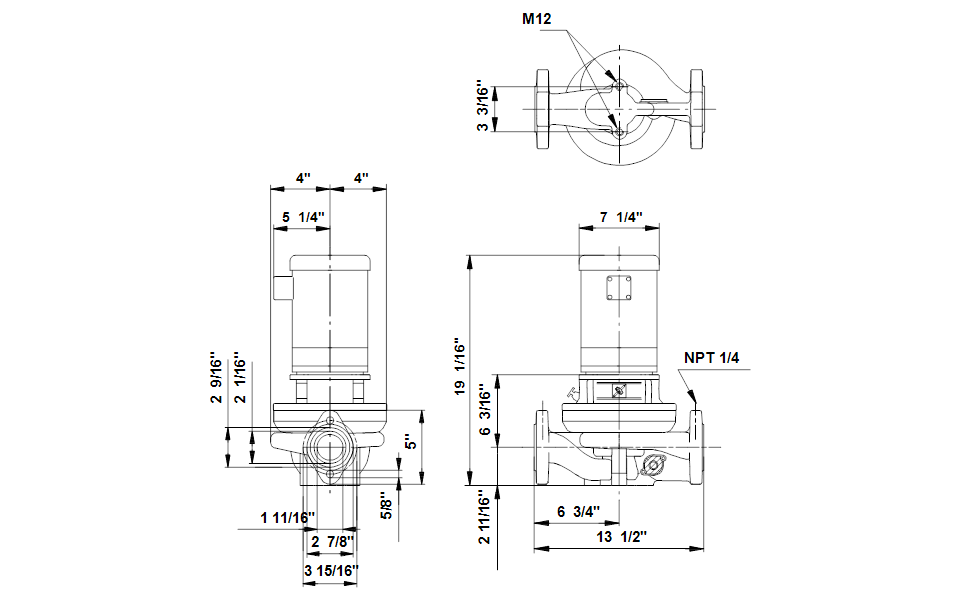

Dimensional Drawing

DWiring Diagram
