Grundfos 96411803 - TP 40-240/2 A-G-A-BUBE-HX2 | Circulator | Heating | Domestic Use

Save $2,588.40
GRUNDFOSSKU: 96411803

Price:
Sale price$3,163.60 Regular price$5,752.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96411803 - TP 40-240/2 A-G-A-BUBE-HX2 Circulator Pump

The Grundfos 96411803 - TP 40-240/2 A-G-A-BUBE-HX2 is a high-performance circulator pump designed for efficient heating in domestic applications. Manufactured by the renowned brand Grundfos, this pump is ideal for various industrial and residential heating systems, ensuring optimal circulation and energy efficiency.

This model features a centrifugal design, making it suitable for close-coupled and in-line installations. With its single-stage operation, the TP series is known for its reliability and durability, making it a preferred choice for both professionals and DIY enthusiasts.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore our selection of Grundfos products and experience the quality and performance that comes with the TP series. Upgrade your heating system today!

Actual impeller diameter 3.86 in
Approvals on motor nameplate CE,CURUS,IE3,EAC
Built-in motor protection NONE
Connection 1 1/2"
Country code Namreg
Curve tolerance ISO9906:2012 3B2
Diameter 3.86 in
DOE Pump Energy Index CL 0.86
Flange standard USA
Frequency 60 Hz
Full load SF current 5,2-5,1/2,55 A
Gross weight 63.0 lb
Housing Cast iron
Impeller Stainless steel
Insulation F
Insulation class (IEC 85) F
KVA code G
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum operating pressure 145.04 psi
Minimum ambient temperature -22°F
Motor efficiency at 1/2 load 0.82
Motor efficiency at 3/4 load 83.5-81.0 %
Motor efficiency at full load 1 0.84
Motor type ML80BA, TEFC
n rpm F
Net weight 71.9 lb
P2 kW 1.5 HP
Phase 3
Pipe connection 1 1/2"
Power factor 1 0.84-0.75
Primary shaft seal BUBE
Pump housing Cast iron
Range of ambient temperature -22 .. 140 °F
Rated current 4,70-4,60/2,30 A
Rated flow 63 US gpm
Rated head 51.18 ft
Rated power - P2 1.5 HP
Rated speed 3450-3480 rpm
Rated voltage 3 x 208-230YY/460Y V
Service factor 1.15
Shaft Product name:TP 40-240/2 A-G-A-BUBE-HX2
Shaft seal BUBE
Standard USA
Type ML80BA, TEFC

Motor Curves

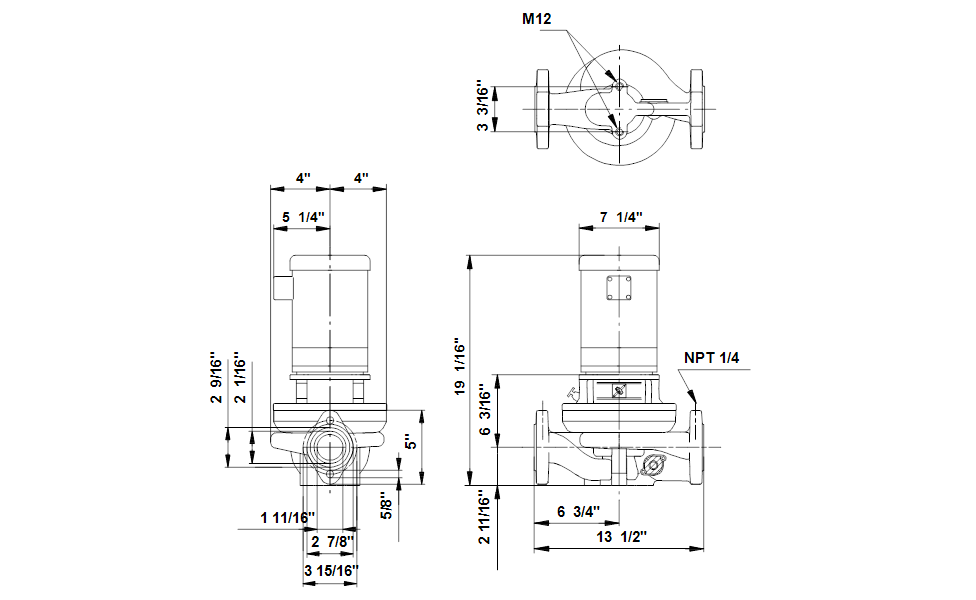

Dimensional Drawing

DWiring Diagram
