Grundfos 91122126 - TP 40-160/2 A-G-Z-BUBE-XY2 | Circulator | Heating | Domestic Use

Save $3,391.65 This item ships free!
GRUNDFOSSKU: 91122126

Price:
Sale price$4,145.35 Regular price$7,537.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

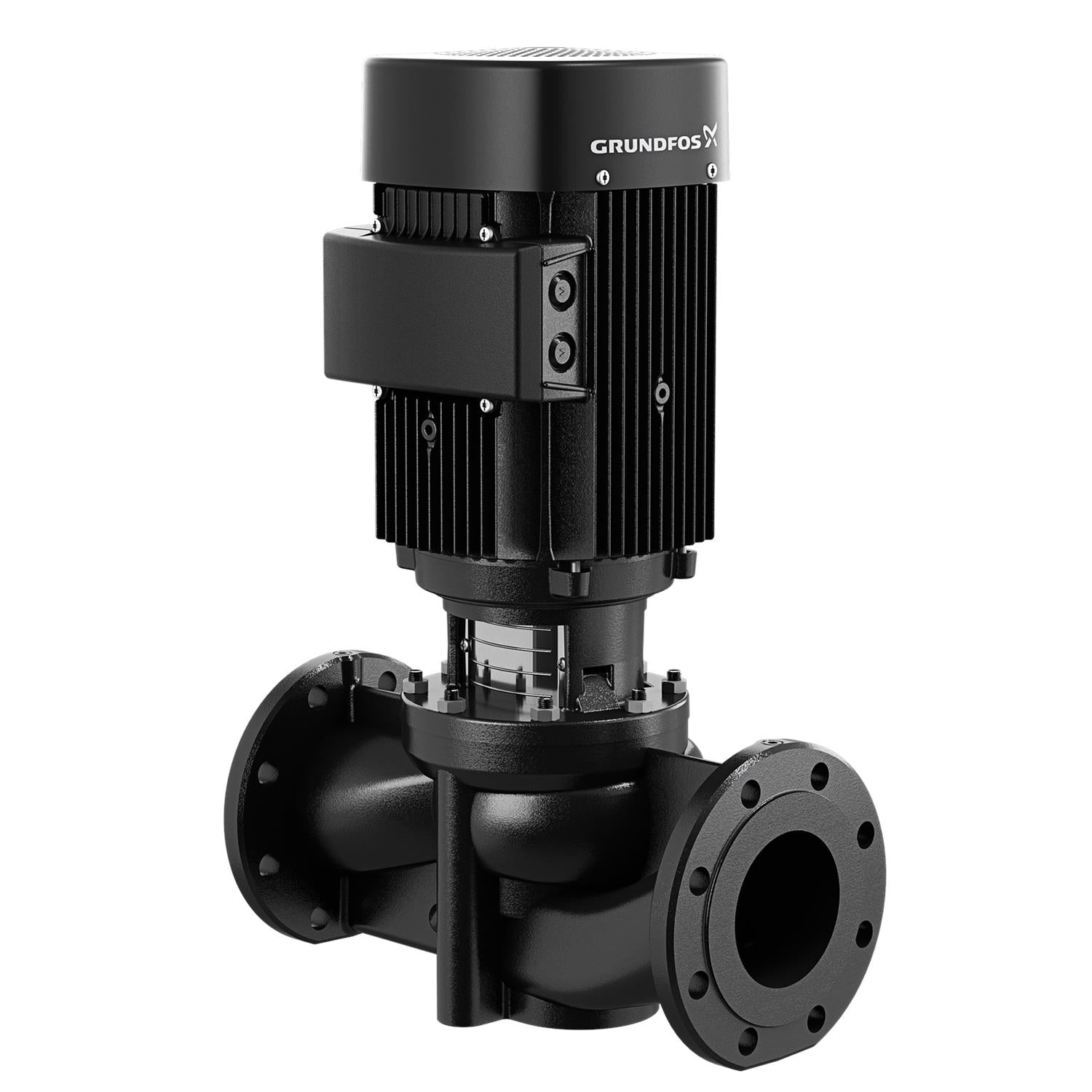

Grundfos 91122126 - TP 40-160/2 A-G-Z-BUBE-XY2 Circulator Pump

The Grundfos 91122126 - TP 40-160/2 A-G-Z-BUBE-XY2 is a high-performance circulator pump designed for heating and domestic applications. Manufactured by the renowned brand Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for various industrial and residential heating systems.

This model features a centrifugal design, ensuring optimal fluid circulation with minimal energy consumption. Its close-coupled configuration allows for easy installation and maintenance, while the single-stage operation provides consistent performance across a range of applications.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our team is here to help!

Actual impeller diameter 3.39 in
Connection 1 1/2"
Country code Namreg
Curve tolerance ISO 9906:1999 Annex A
Diameter 3.39 in
Flange standard USA
Gross weight 56.0 lb
Housing Bronze
Impeller Stainless steel
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum operating pressure 145.04 psi
n rpm 1 1/2"
Pipe connection 1 1/2"
Primary shaft seal BUBE
Pump housing Bronze
Rated flow 260 US gpm
Rated head 35.76 ft
Shaft Product name:TP 40-160/2 A-G-Z-BUBE-XY2
Shaft seal BUBE
Standard USA

Motor Curves
