Grundfos 96411785 - TP 32-80/2 A-G-Z-BUBE-EY2 | Centrifugal

Save $2,351.25
GRUNDFOSSKU: 96411785

Price:
Sale price$2,873.75 Regular price$5,225.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

TP 32-80/2 A-G-Z-BUBE-EY2 Single-stage centrifugal volute in-line single-head pump: neck rings and impeller made of stainless steel
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal. The motor is a 3-phase AC motor.

Actual impeller diameter 2.52 in
Approvals on motor nameplate CE,CURUS,EAC
Built-in motor protection NONE
Connection 1 1/4"
Country code Namreg
Curve tolerance ISO9906:2012 3B2
Diameter 2.52 in
Flange standard USA
Frequency 60 Hz
Full load SF current 2-1,9/0,95 A
Gross weight 61.0 lb
Housing Bronze
Impeller Stainless steel
Insulation F
Insulation class (IEC 85) F
KVA code J
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum operating pressure 145.04 psi
Minimum ambient temperature -22°F
Motor efficiency at 1/2 load 77.1-75.4 %
Motor efficiency at 3/4 load 79.9-79.5 %
Motor efficiency at full load 1 0.785
Motor type ML71AB, TEFC
n rpm F
Net weight 53.4 lb
P2 kW 0.5 HP
Phase 3
Pipe connection 1 1/4"
Power factor 1 0.84-0.78
Primary shaft seal BUBE
Pump housing Bronze
Range of ambient temperature -22 .. 104 °F
Rated current 1,64-1,55/0,78 A
Rated flow 37.4 US gpm
Rated head 19.36 ft
Rated power - P2 0.5 HP
Rated speed 3430-3460 rpm
Rated voltage 3 x 208-230YY/460Y V
Service factor 1.25
Shaft Product name:TP 32-80/2 A-G-Z-BUBE-EY2
Shaft seal BUBE
Standard USA
Type ML71AB, TEFC

Motor Curves

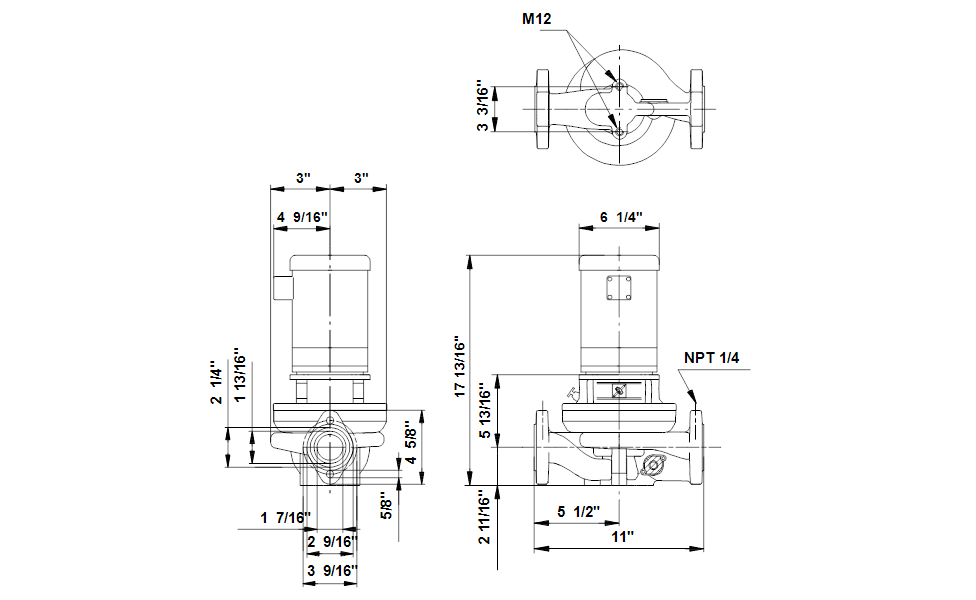

Dimensional Drawing

DWiring Diagram
