Grundfos 96411784 - TP 32-80/2 A-G-Z-BUBE-EY2 | Centrifugal

Save $2,356.65
GRUNDFOSSKU: 96411784

Price:
Sale price$2,880.35 Regular price$5,237.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

TP 32-80/2 A-G-Z-BUBE-EY2 Single-stage centrifugal volute in-line single-head pump: neck rings and impeller made of stainless steel
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal. The motor is a 1-phase AC motor.

Actual impeller diameter 2.52 in
Approvals on motor nameplate UL Recognized Component, CSA
Connection 1 1/4"
Country code Namreg
Curve tolerance ISO9906:2012 3B2
Diameter 2.52 in
Flange standard USA
Frequency 60 Hz
Full load SF current 9.8/4.9 A
Gross weight 62.0 lb
Housing Bronze
Impeller Stainless steel
Insulation B
Insulation class (IEC 85) B
KVA code K
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum ambient temperature 104 °F
Maximum operating pressure 145.04 psi
Motor type Baldor, TEFC
n rpm B
Net weight 56.4 lb
P2 kW 0.5 HP
Phase 1
Pipe connection 1 1/4"
Primary shaft seal BUBE
Pump housing Bronze
Rated current 7.4/3.7 A
Rated flow 37.4 US gpm
Rated head 19.36 ft
Rated power - P2 0.5 HP
Rated speed 3450 rpm
Rated voltage 1 x 115/230 V
Service factor 1.6
Shaft Product name:TP 32-80/2 A-G-Z-BUBE-EY2
Shaft seal BUBE
Standard USA
Type Baldor, TEFC

Motor Curves

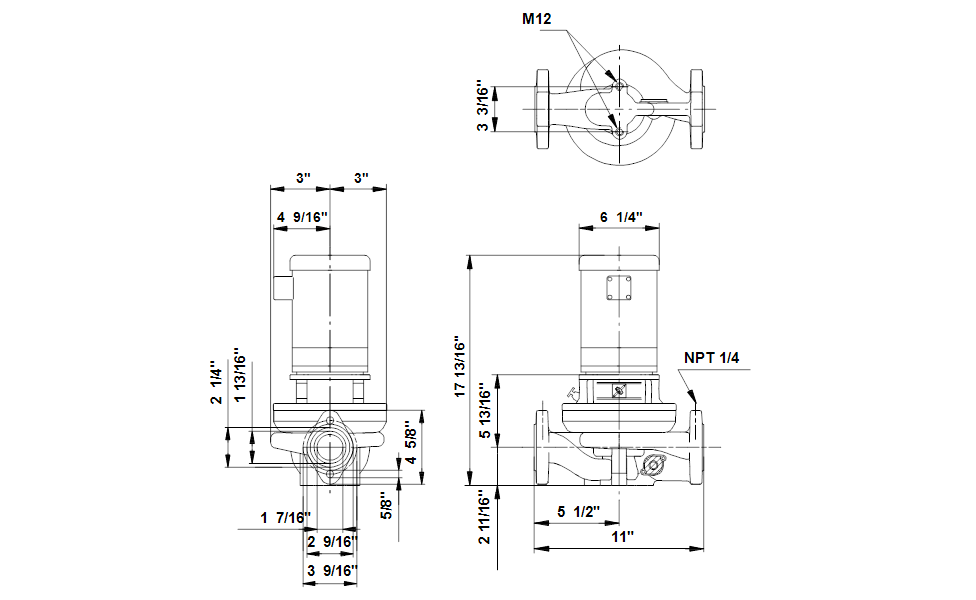

Dimensional Drawing

DWiring Diagram
