Description

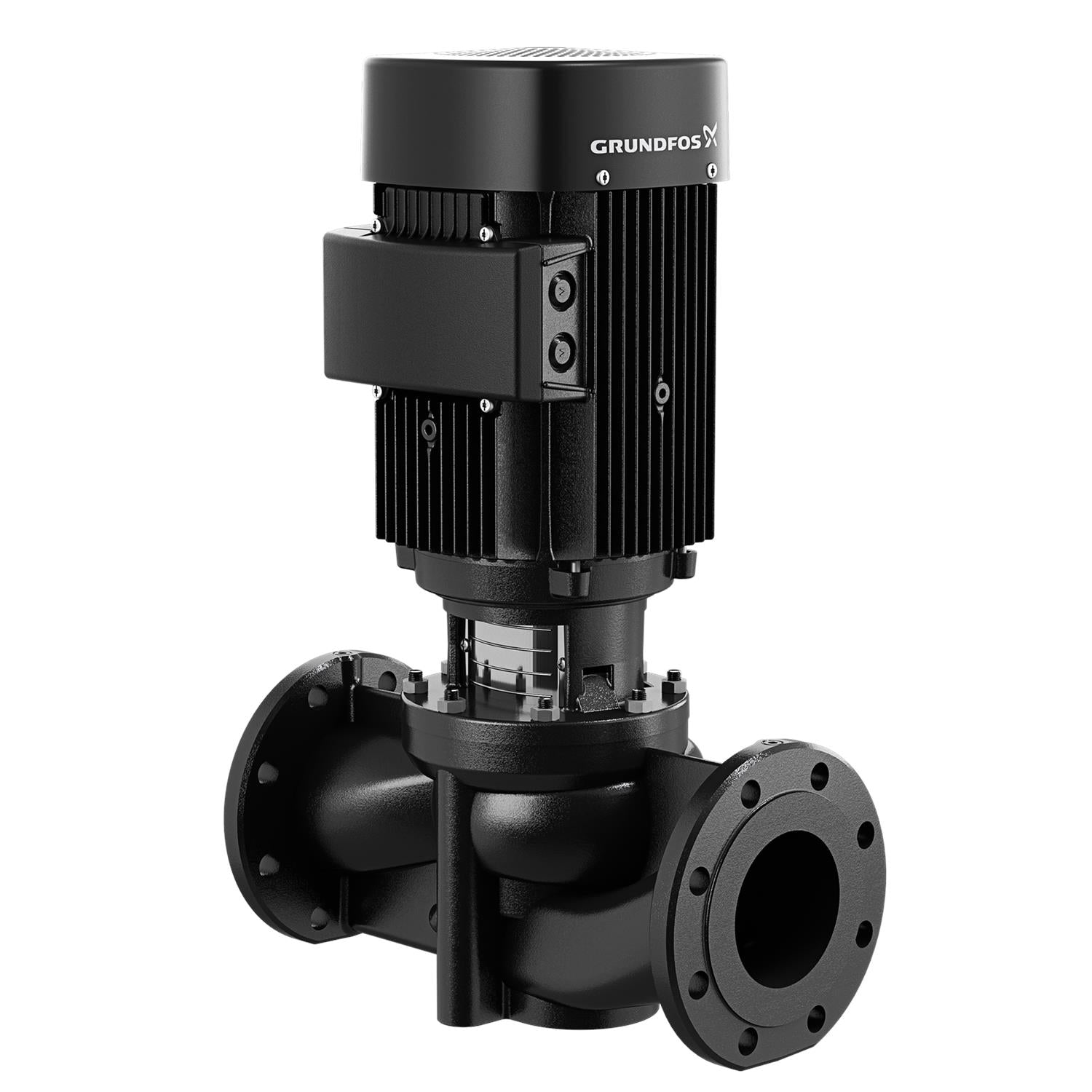

TP 32-80/2 A-G-A-BUBE-XY2 | Single-stage centrifugal in-line single-head pump. The in-line design with opposite suction and dis-charge ports enables mounting in pipework or ona concrete foundation. The shaft seal is a corrosion-resistantmaintenance-free mechanical seal.
Maximum operating pressure
145.04 psi
Liquid temperature range
5 .. 284 °F
Gross weight
39.0 lb
Shaft
Product name:TP 32-80/2 A-G-A-BUBE-XY2
Pipe connection
1 1/4"
Rated flow
37.4 US gpm
Flange standard
USA
Diameter
2.52 in
Housing
Cast iron
Rated head
19.36 ft
Actual impeller diameter
2.52 in
Curve tolerance
ISO 9906:1999 Annex A
Primary shaft seal
BUBE
Connection
1 1/4"
Impeller
Stainless steel
Pump housing
Cast iron
Standard
USA
Country code
Namreg
Motor Curves
