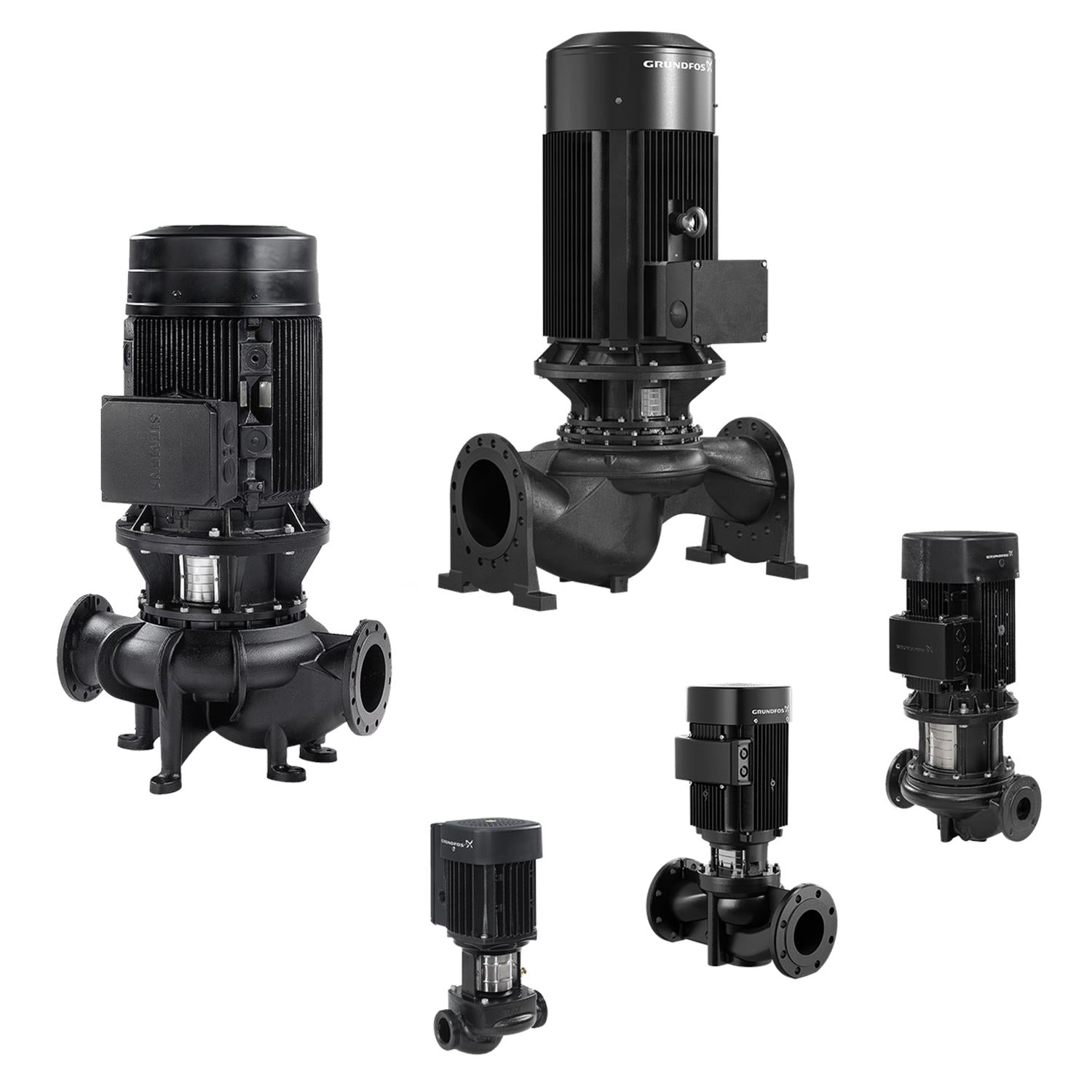

Image shown may not be actual product
Grundfos 96086668 - TP 32-250/2 A-F-A-GQQE
Roll over image to zoom in Click on image to zoom
Grundfos 96086668 - TP 32-250/2 A-F-A-GQQE
Grundfos Pumps & Systems

Grundfos 96086668 - TP 32-250/2 A-F-A-GQQE

GRUNDFOSSKU: 96086668

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
96086668 · Inline Single-Stage Centrifugal Pump
TP2HP220-240D/380-415YV3.0-Phase50 HzIE3IP55 Dust/JettingCast iron

The Grundfos 96086668 (TP 32-250/2 A-F-A-GQQE) is a Inline Single-Stage Centrifugal Pump. Single-stage close-coupled inline pump for HVAC heating and cooling. Suction and discharge on the same centerline. Nominal performance: 66.5US gpm at 62.6ft. Rated 220-240D/380-415YV, 3.0-Phase, 50 Hz. Applications include HVAC: Air Conditioning.

Power
2HP
Voltage
220-240D/380-415YV
Phase
3.0-Phase
Max Flow
66.5US gpm
Max Head
62.6ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 96086668
Series: TP
Impeller Material: Cast iron
Housing Material: Cast iron
Shaft Seal: GQQE
Flange Rating: PN 16
Technical Specifications
Model Number 96086668
Product Series TP
Series Description Inline Single-Stage Centrifugal Pump
Power 2HP
Voltage 220-240D/380-415YV
Phase 3.0-Phase
Frequency 50 Hz
Motor Speed 2890-2910rpm
Pump Speed 2900rpm
Full Load Current 5,45/3,15A
Motor Type 90SB
Motor Efficiency Class IE3
Motor Efficiency IE3 84,2%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 66.5US gpm
Nominal Head 62.6ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 140°F
Max Ambient Temperature 140°F
Min Ambient Temperature -22°F
Nominal Pipe Bore DN 32
Pipe Pressure Rating PN 16
Pipe Standard DIN
Impeller Material Cast iron
Housing Material Cast iron
Shaft Seal GQQE
Applications
HVAC: Air Conditioning
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 220-240D/380-415YV, 3.0-Phase, 50 Hz.
Temperature limits Do not exceed max fluid temperature 140°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. TP pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — TP Series
✓ Product Data Sheet — 96086668
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 96086668 · 96086668Authorized Grundfos Distributor · pump-stop.com
EAN
5700395306248
Actual impeller diameter
5.51 in
Built-in motor protection
NONE
Code for shaft seal
GQQE
Connect code
F
Connection
PN 16
Curve tolerance
ISO9906:2012 3B
Density
62.29 lb/ft³
Diameter
5.51 in
Enclosure class (IEC 34-5)
55 Dust/Jetting
Gross weight
135.0 lb
Housing
Cast iron
IE efficiency
IE3 84
IE Efficiency class
IE3
Impeller
Cast iron
Insulation class (IEC 85)
F
Length
340 mm
Liquid temperature range
-13 .. 140 °F
Mains frequency
50 Hz
Material code
A
Material Pricing Group
54
Maximum head
82.02 ft
Maximum operating pressure
16 bar
Minimum efficiency index, MEI ≥
0.7
Motor efficiency at 1/2 load
0.831
Motor efficiency at 3/4 load
0.845
Motor efficiency at full load 1
0.842
Motor type
90SB
Net weight
104.0 lb
Number of poles
2
Power factor 1
0.87-0.82
Pressure rating for connection
PN 16
Pump housing
Cast iron
Pump speed on which pump data are based
2900 rpm
Pump version
A
Pumped liquid
Water
Range of ambient temperature
-22 .. 140 °F
Rated current
5.45/3.15 A
Rated flow
66.5 US gpm
Rated head
62.6 ft
Rated power - P2
1.5 kW
Rated speed
2890-2910 rpm
Rated voltage
3 x 220-240D/380-415Y V
Real Time
Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature
68 °F
Size of connection
DN 32
Starting current
850-930 %
Type
90SB
Type of connection
DIN
Version
A
