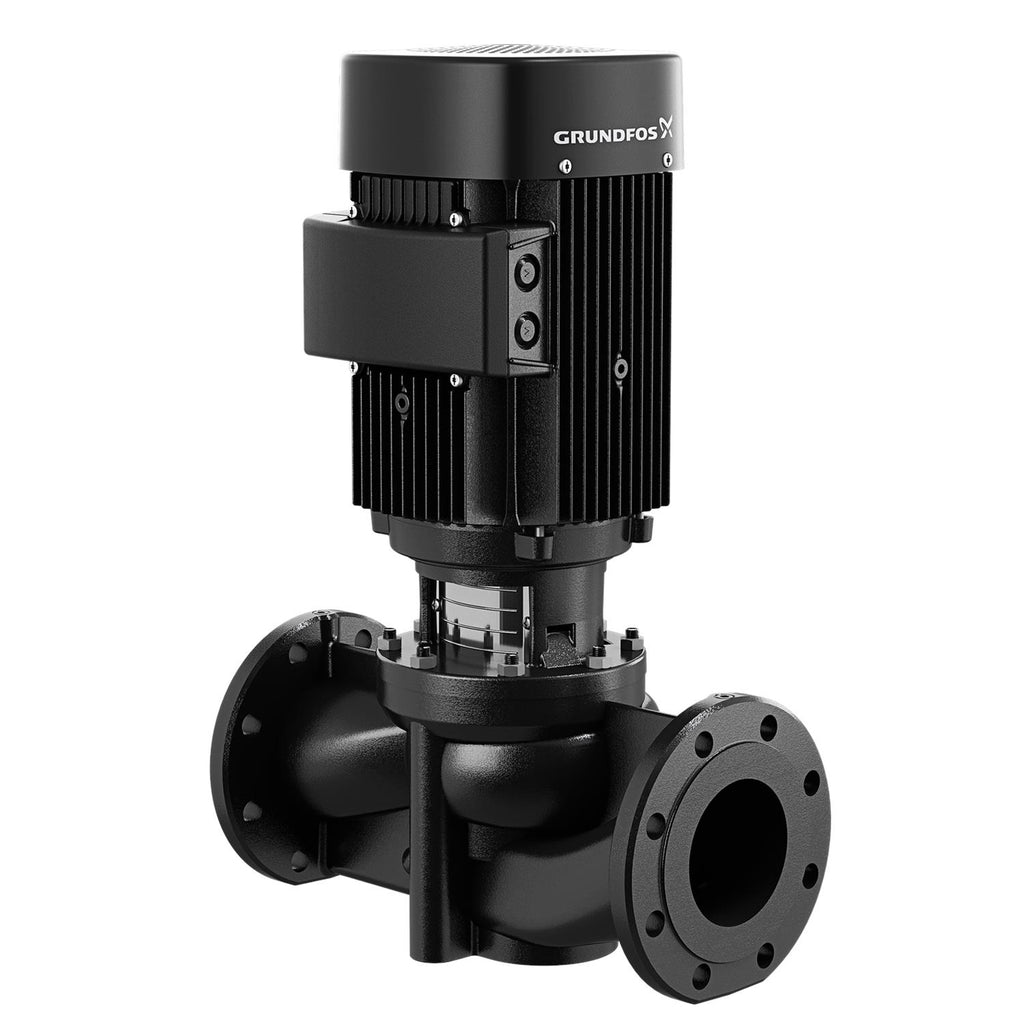

Grundfos 96877042 - TP 32-160/2 RUUE | Centrifugal

Save $2,103.00 This item ships free!
GRUNDFOSSKU: 96877042

Price:
Sale price$2,103.00 Regular price$4,206.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

TP 32-160/2 RUUE Single-stage centrifugal volute in-line single-head pump: neck rings and impeller made of stainless steel
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal. The motor is a 1-phase AC motor.

EAN 5700312504931
Applications Heating, Air-conditioning, Industrial applications, Pressure boosting, Drinking Water Distribution
Approvals on motor nameplate UL Recognized Component
Built-in motor protection NONE
Connection 1 1/2"
Country code Namreg
Curve tolerance ISO9906:2012 3B2
Density 62.29 lb/ft³
Flange standard USA
Full load SF current 11
Gross weight 60.0 lb
Housing Cast iron
Impeller Stainless steel
Insulation class (IEC 85) B
KVA code K
Liquid temperature range -13 .. 140 °F
Mains frequency 60 Hz
Material Pricing Group 54
Maximum ambient temperature 104 °F
Maximum operating pressure 10 bar
Motor type Baldor
Pipe connection 1 1/2"
Primary shaft seal RUUE
Product family TP, North America
Pump housing Cast iron
Pump No 96405251
Pumped liquid Water
Rated current 9
Rated flow 38.7 US gpm
Rated head 38.39 ft
Rated power - P2 0.55 kW
Rated speed 3450 rpm
Rated voltage 1 x 115/208-230 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.25
Standard USA
Type Baldor

Motor Curves

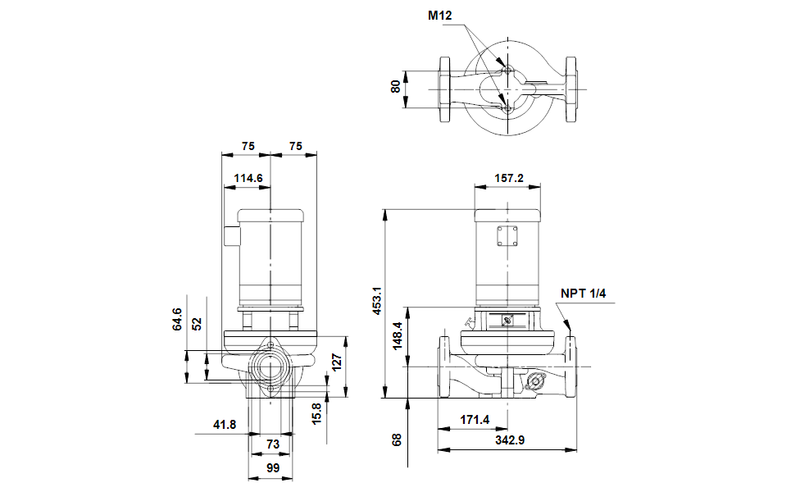

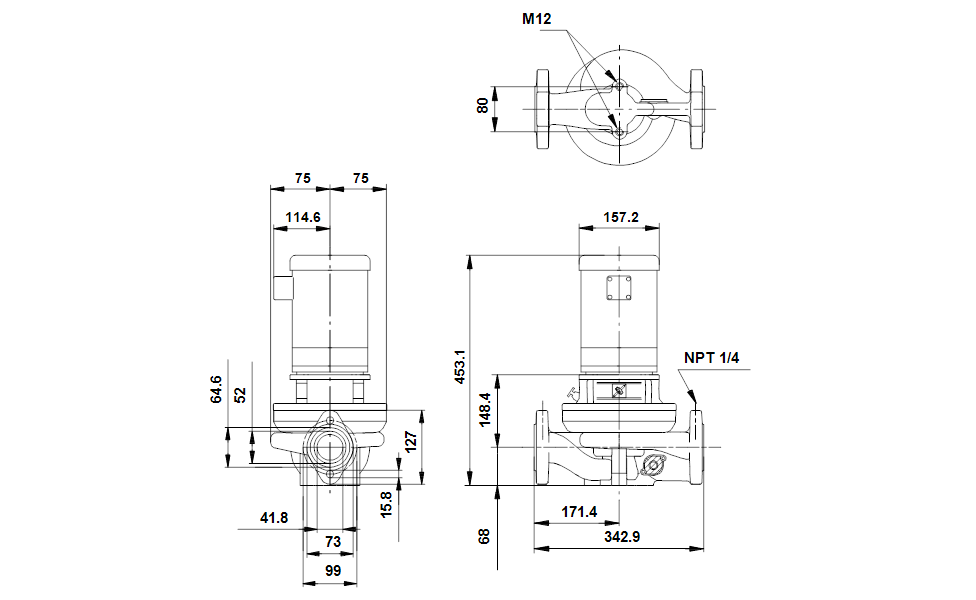

Dimensional Drawing

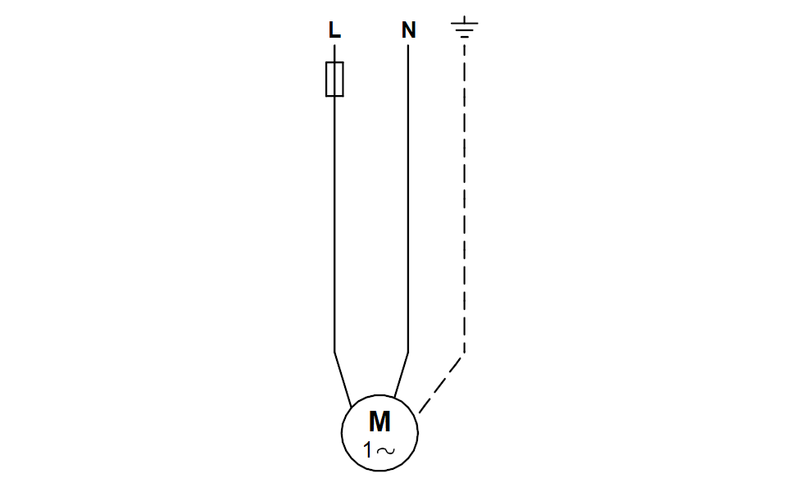

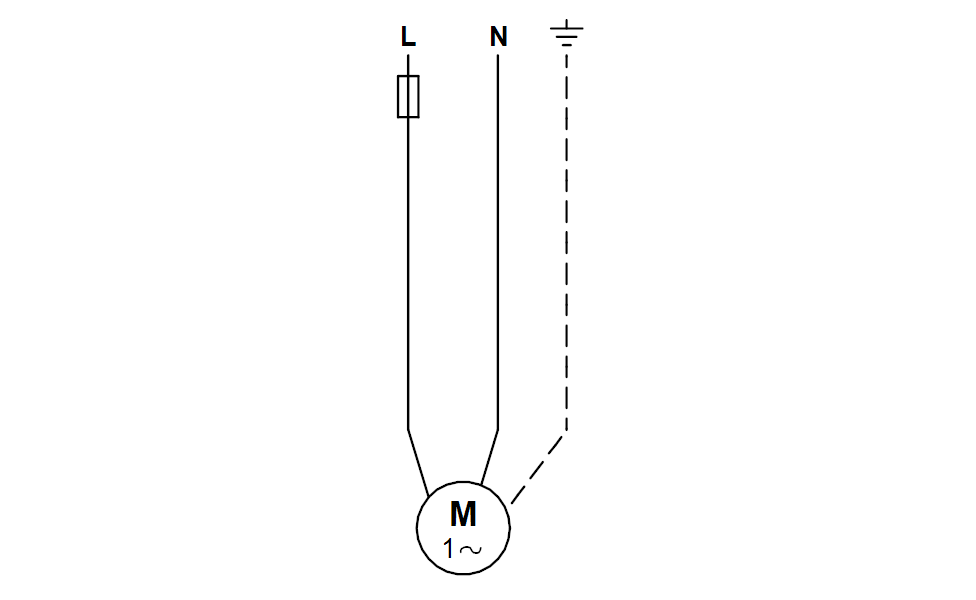

DWiring Diagram
