Grundfos 96411789 - TP 32-160/2 A-G-Z-BUBE-FY2 | Centrifugal

Save $3,021.30
GRUNDFOSSKU: 96411789

Price:
Sale price$3,692.70 Regular price$6,714.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

TP 32-160/2 A-G-Z-BUBE-FY2 Single-stage centrifugal volute in-line single-head pump: neck rings and impeller made of stainless steel
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal. The motor is a 3-phase AC motor.

Actual impeller diameter 3.31 in
Approvals on motor nameplate CE,CURUS,EAC
Built-in motor protection NONE
Connection 1 1/2"
Country code Namreg
Curve tolerance ISO9906:2012 3B2
Diameter 3.31 in
Flange standard USA
Frequency 60 Hz
Full load SF current 2,9-2,75/1,4 A
Gross weight 65.0 lb
Housing Bronze
Impeller Stainless steel
Insulation F
Insulation class (IEC 85) F
KVA code K
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum operating pressure 145.04 psi
Minimum ambient temperature -22°F
Motor efficiency at 1/2 load 77.3-75.2 %
Motor efficiency at 3/4 load 79.9-79.3 %
Motor efficiency at full load 1 79.0-80.0 %
Motor type ML71BA, TEFC
n rpm F
Net weight 63.3 lb
P2 kW 0.75 HP
Phase 3
Pipe connection 1 1/2"
Power factor 1 0.84-0.78
Primary shaft seal BUBE
Pump housing Bronze
Range of ambient temperature -22 .. 104 °F
Rated current 2,40-2,30/1,20 A
Rated flow 38.7 US gpm
Rated head 38.39 ft
Rated power - P2 0.75 HP
Rated speed 3430-3460 rpm
Rated voltage 3 x 208-230YY/460Y V
Service factor 1.25
Shaft Product name:TP 32-160/2 A-G-Z-BUBE-FY2
Shaft seal BUBE
Standard USA
Type ML71BA, TEFC

Motor Curves

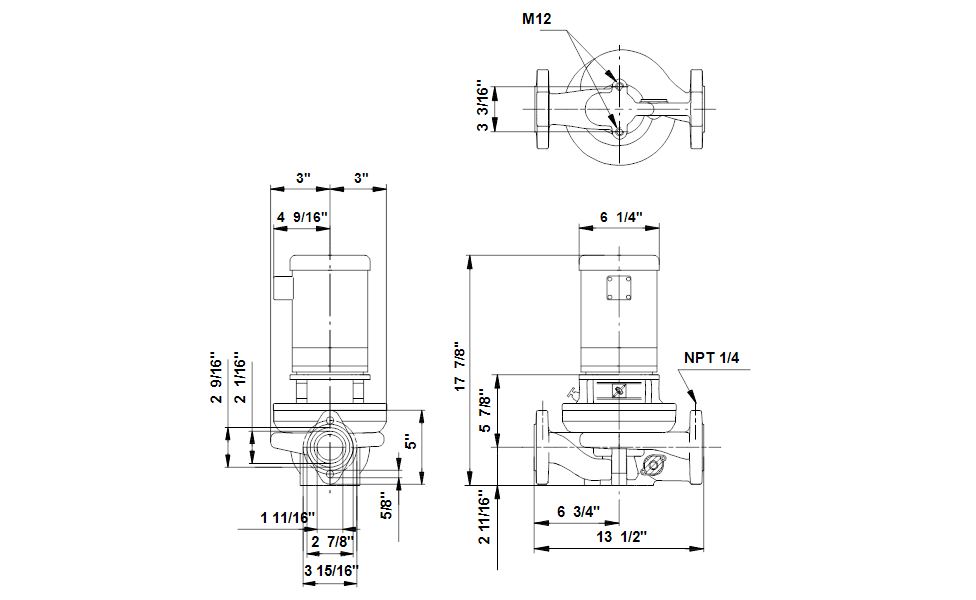

Dimensional Drawing

DWiring Diagram
