Grundfos 96411788 - TP 32-160/2 A-G-Z-BUBE-FY2 | Centrifugal

Save $3,088.35
GRUNDFOSSKU: 96411788

Price:
Sale price$3,774.65 Regular price$6,863.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

TP 32-160/2 A-G-Z-BUBE-FY2 Single-stage centrifugal volute in-line single-head pump: neck rings and impeller made of stainless steel
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal. The motor is a 1-phase AC motor.

Actual impeller diameter 3.31 in
Approvals on motor nameplate UL Recognized Component, CSA
Built-in motor protection NONE
Connection 1 1/2"
Country code Namreg
Curve tolerance ISO9906:2012 3B2
Diameter 3.31 in
Flange standard USA
Frequency 60 Hz
Full load SF current 11,4/6-5,7 A
Gross weight 66.0 lb
Housing Bronze
Impeller Stainless steel
Insulation B
Insulation class (IEC 85) B
KVA code K
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum ambient temperature 104 °F
Maximum operating pressure 145.04 psi
Motor type Baldor, TEFC
n rpm B
Net weight 60.9 lb
P2 kW 0.75 HP
Phase 1
Pipe connection 1 1/2"
Primary shaft seal BUBE
Pump housing Bronze
Rated current 9,6/5-4,8 A
Rated flow 38.7 US gpm
Rated head 38.39 ft
Rated power - P2 0.75 HP
Rated speed 3450 rpm
Rated voltage 1 x 115/208-230 V
Service factor 1.25
Shaft Product name:TP 32-160/2 A-G-Z-BUBE-FY2
Shaft seal BUBE
Standard USA
Type Baldor, TEFC

Motor Curves

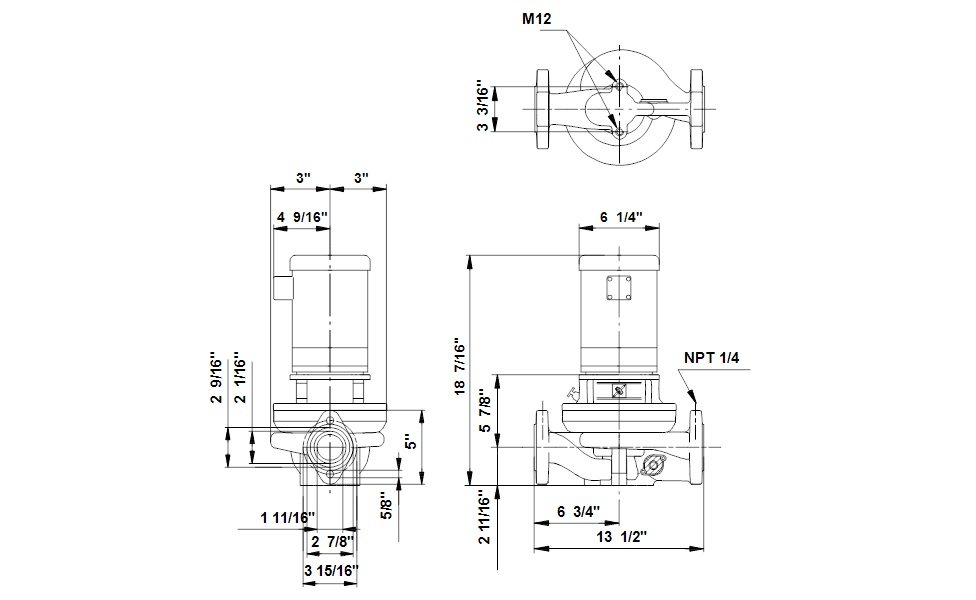

Dimensional Drawing

DWiring Diagram
