Grundfos 96088689 - TP 32-120/4 A-F-A-BAQE-EY4
Grundfos 96088689 - TP 32-120/4 A-F-A-BAQE-EY4
Grundfos 96088689 - TP 32-120/4 A-F-A-BAQE-EY4
Grundfos 96088689 - TP 32-120/4 A-F-A-BAQE-EY4
Grundfos 96088689 - TP 32-120/4 A-F-A-BAQE-EY4
Grundfos 96088689 - TP 32-120/4 A-F-A-BAQE-EY4

Grundfos 96088689 - TP 32-120/4 A-F-A-BAQE-EY4

GRUNDFOSSKU: 96088689
Contact for price
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

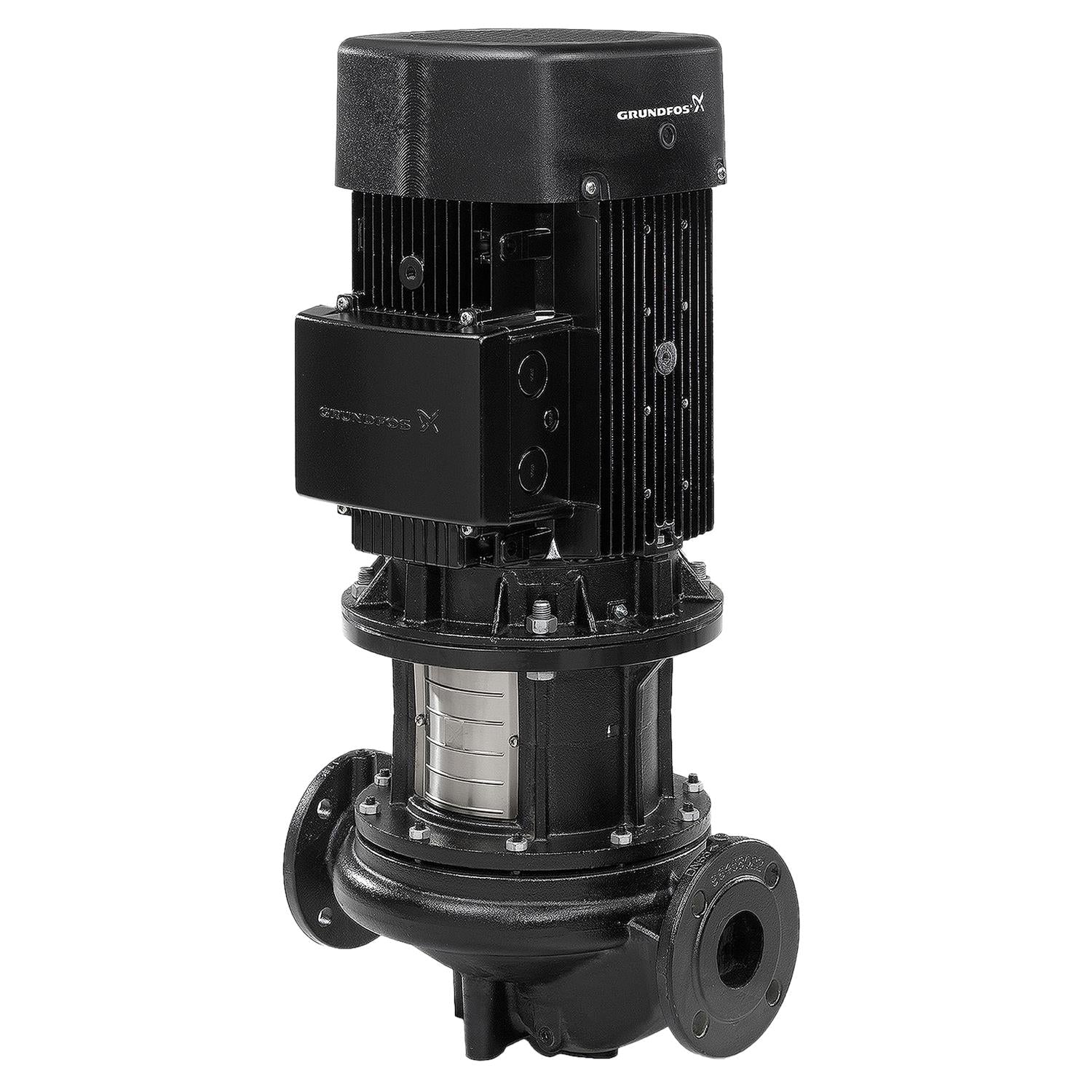

TP 32-120/4 A-F-A-BAQE-EY4 | Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i. e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 16 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled asynchronous motor.

EAN 5700395777147
Material Pricing Group 54
Motor efficiency at full load 1 81.1-81.1 %
IE Efficiency class IE3 / NEMA Premium
Material code A
Density 62.29 lb/ft³
Max pressure at stated temp 232 psi / 250 °F
Maximum operating pressure 16 bar
Power factor 1 0.72
Selected liquid temperature 68 °F
Type of connection DIN
Rated voltage 3 x 440-480Y V
Flange size for motor FF165
Pumped liquid Water
Starting current 690-690 %
Connect code F
Liquid temperature range 32 .. 248 °F
Mains frequency 60 Hz
Insulation class (IEC 85) F
IE efficiency IE3 81
Motor efficiency at 1/2 load 78.2-78.2 %
Built-in motor protection NONE
Net weight 104.0 lb
Number of poles 4
Rated speed 1750 rpm
Gross weight 128.0 lb
Rated power - P2 0.55 kW
Size of connection DN 32
Enclosure class (IEC 34-5) IP55
Pressure rating for connection PN 16
Motor efficiency at 3/4 load 80.8-80.8 %
Rated current 1.15 A
Minimum efficiency index, MEI ≥ 0.7
Frequency converter NONE
Motor type SIEMENS
Range of ambient temperature -4 .. 131 °F
Pump speed on which pump data are based 1690 rpm
Rated flow 40.1 US gpm
Version A
Diameter 6.46 in
Motor FF165
Length 440 mm
Maximum head 39.37 ft
Housing Cast iron
Rated head 30.19 ft
Actual impeller diameter 6.46 in
Type SIEMENS
Curve tolerance ISO9906:2012 3B2
Connection PN 16
Impeller Cast iron
Code for shaft seal BAQE
Pump housing Cast iron
Pump version A
