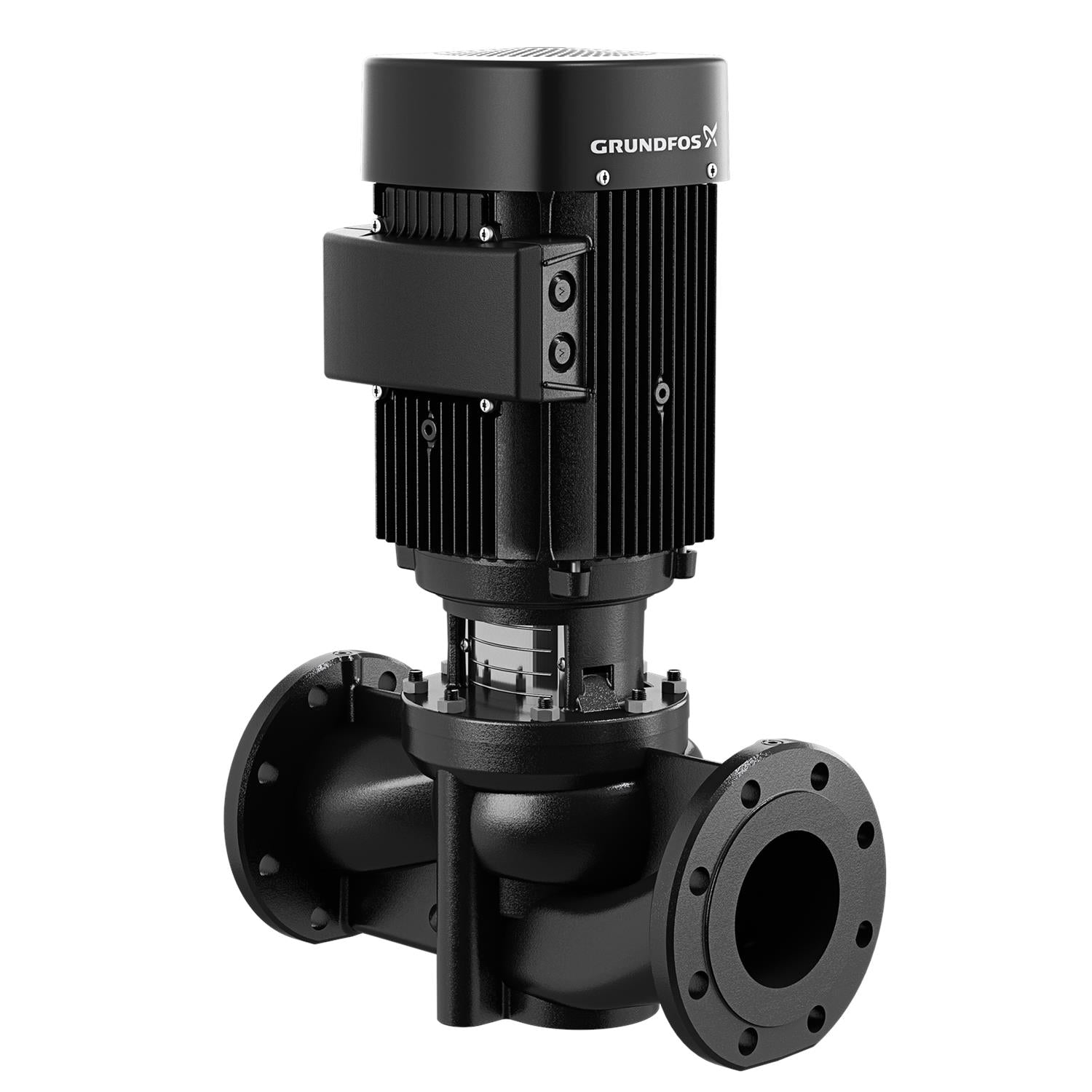

Grundfos 91122137 - TP 100-80/4 A-G-Z-BUBE-XX4
Grundfos 91122137 - TP 100-80/4 A-G-Z-BUBE-XX4
Grundfos 91122137 - TP 100-80/4 A-G-Z-BUBE-XX4

Grundfos 91122137 - TP 100-80/4 A-G-Z-BUBE-XX4

Save $5,351.50 This item ships free!
GRUNDFOSSKU: 91122137
Price:
$5,351.50 $10,703.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 91122137 - TP 100-80/4 A-G-Z-BUBE-XX4 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Maximum operating pressure 145.04 psi
Liquid temperature range 5 .. 284 °F
Gross weight 147.0 lb
Shaft Product name:TP 100-80/4 A-G-Z-BUBE-XX4
Pipe connection 4"
DOE Pump Energy Index CL 0.94
Rated flow 242 US gpm
Flange standard ANSI
Diameter 5.23 in
Housing Bronze
Rated head 22.31 ft
Actual impeller diameter 5.23 in
Curve tolerance ISO 9906:1999 Annex A
Primary shaft seal BUBE
Connection 4"
Impeller Stainless steel
Pump housing Bronze
Standard ANSI
Country code Namreg
