Grundfos 91122119 - TP 100-80/4 A-G-A-BUBE-XX4 | Circulator | Heating | Domestic Use

Save $3,033.45 This item ships free!
GRUNDFOSSKU: 91122119

Price:
Sale price$3,707.55 Regular price$6,741.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

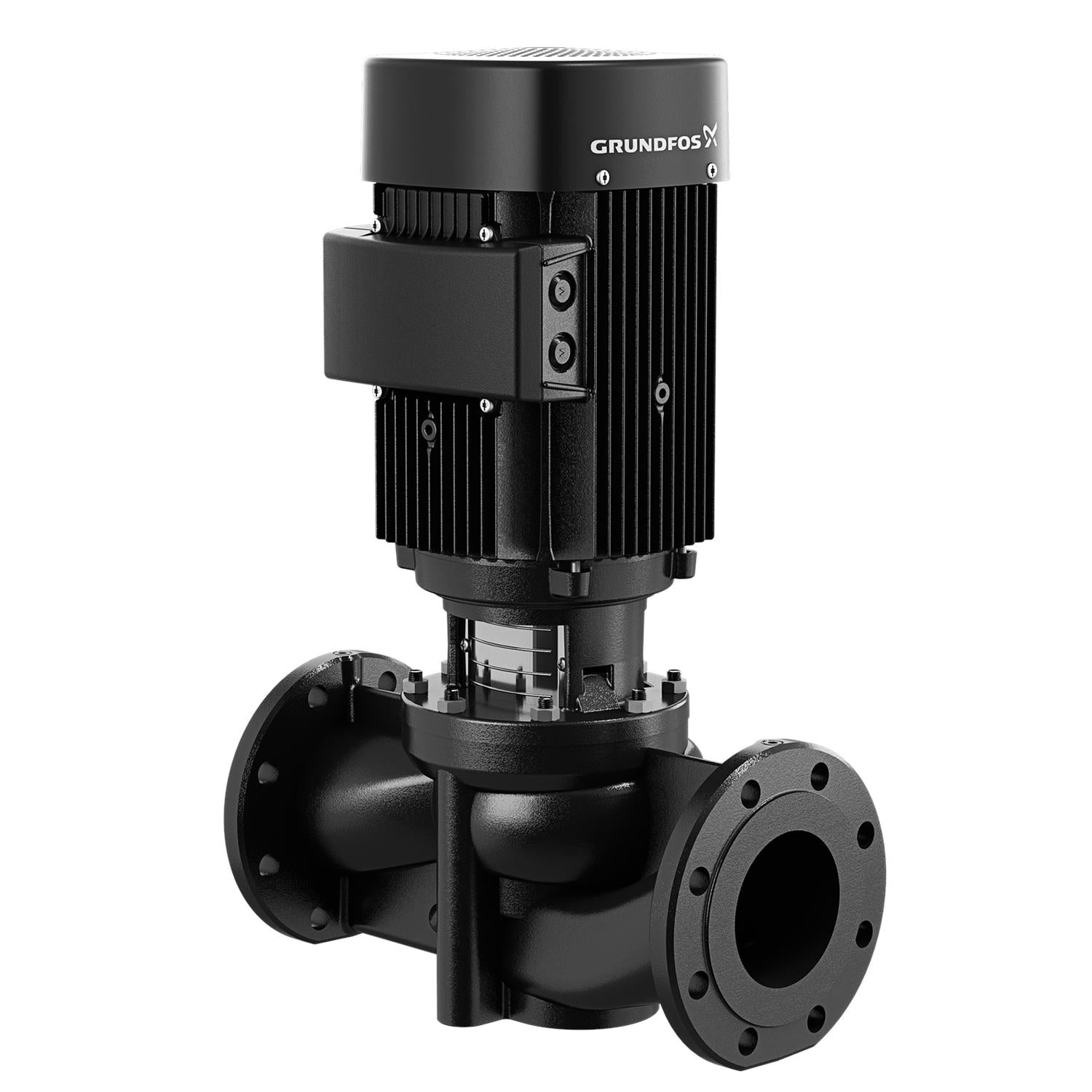

Grundfos 91122119 - TP 100-80/4 A-G-A-BUBE-XX4 Circulator Pump

The Grundfos 91122119 - TP 100-80/4 A-G-A-BUBE-XX4 is a high-performance circulator pump designed for various heating applications in domestic and industrial settings. This reliable pump is part of the renowned Grundfos TP series, known for its efficiency and durability.

With its centrifugal design and close-coupled configuration, the TP 100-80/4 A-G-A-BUBE-XX4 ensures optimal fluid circulation, making it an ideal choice for heating systems. Its single-stage operation allows for smooth and efficient performance, ensuring your heating needs are met with precision.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team via chat or phone. Trust Grundfos for quality and reliability in your pumping solutions.

Actual impeller diameter 5.23 in
Connection 4"
Country code Namreg
Curve tolerance ISO 9906:1999 Annex A
Diameter 5.23 in
DOE Pump Energy Index CL 0.94
Flange standard ANSI
Gross weight 130.0 lb
Housing Cast iron
Impeller Stainless steel
Liquid max temp 284°F
Liquid temperature range 5 .. 284 °F
Maximum operating pressure 145.04 psi
n rpm 4"
Pipe connection 4"
Primary shaft seal BUBE
Pump housing Cast iron
Rated flow 242 US gpm
Rated head 22.31 ft
Shaft Product name:TP 100-80/4 A-G-A-BUBE-XX4
Shaft seal BUBE
Standard ANSI

Motor Curves

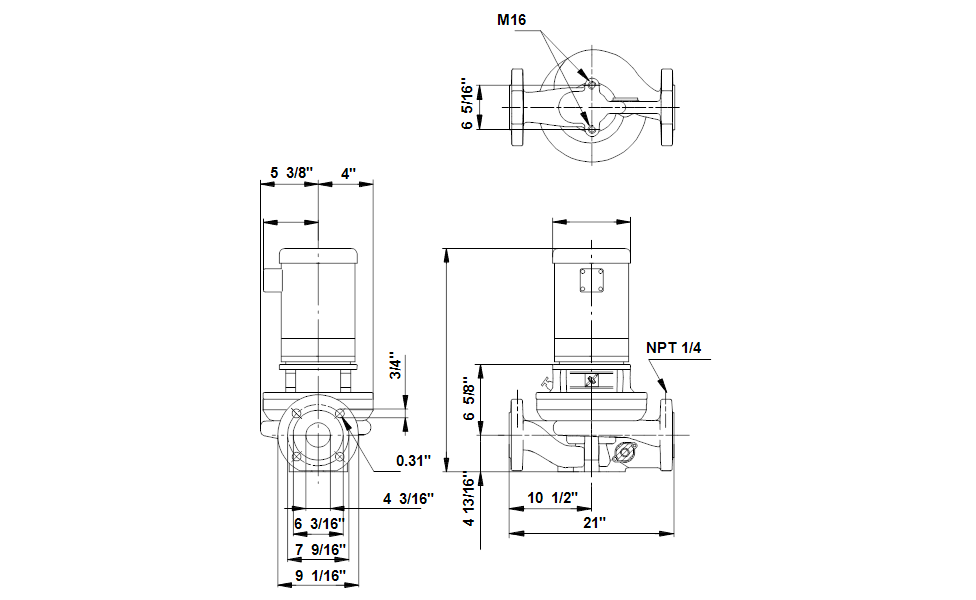

Dimensional Drawing
