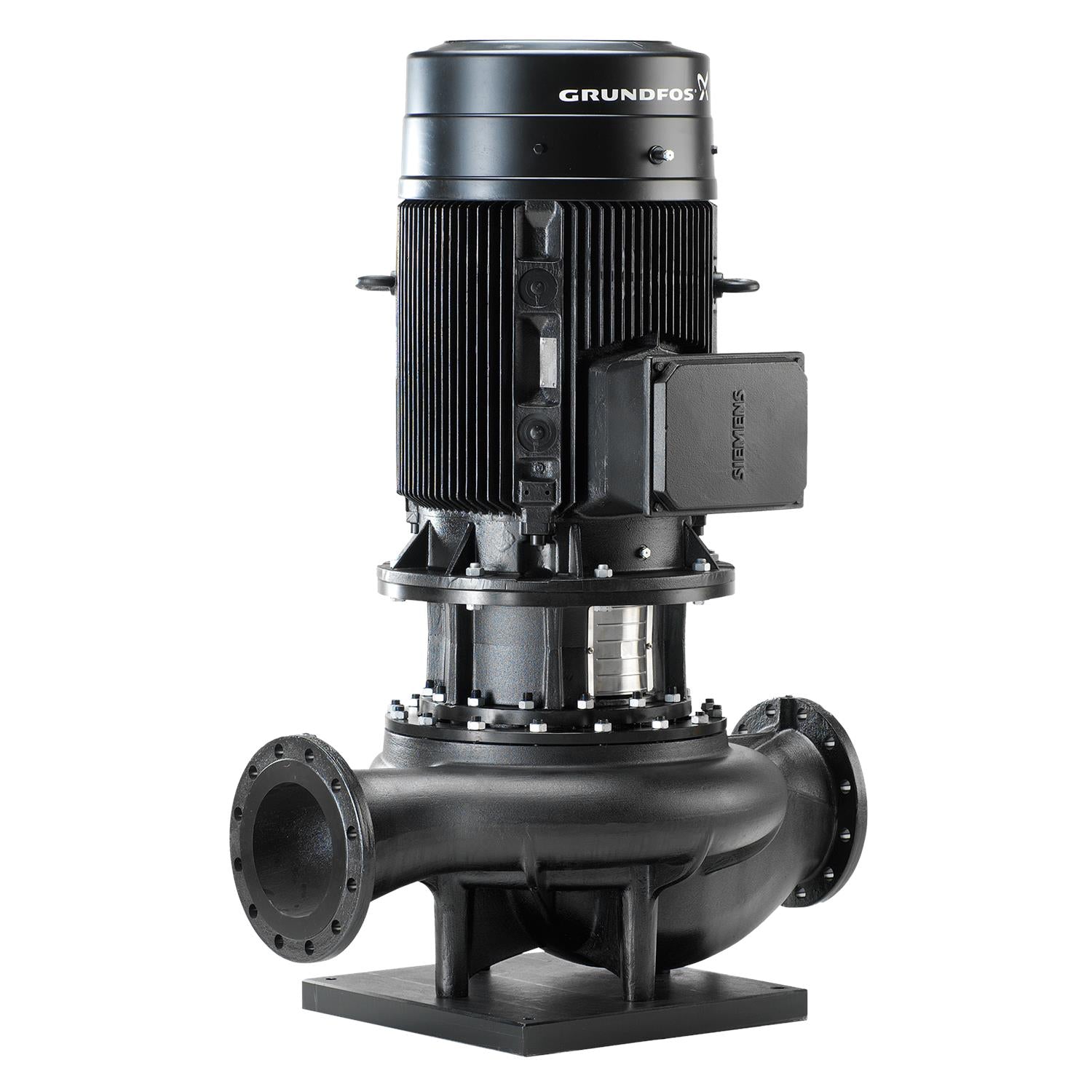

TP 100-390/2 A-F-A-BQQE-QW1 | Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i. e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 16 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled asynchronous motor.
EAN
5700396979090
Material Pricing Group
54
Motor efficiency at full load 1
92.7-92.7 %
IE Efficiency class
IE3
Material code
A
Density
62.29 lb/ft³
Max pressure at stated temp
232 psi / 250 °F
Maximum operating pressure
16 bar
Power factor 1
0.90-0.90
Selected liquid temperature
68 °F
Type of connection
DIN
Rated voltage
3 x 220-240D/380-415Y V
Flange size for motor
FF300
Pumped liquid
Water
Starting current
8.3
Connect code
F
Liquid temperature range
-13 .. 248 °F
Mains frequency
50 Hz
Insulation class (IEC 85)
F
Motor efficiency at 1/2 load
94.4-94.1 %
Built-in motor protection
PTC
Net weight
489.0 lb
Number of poles
2
Rated speed
2950 rpm
Gross weight
569.0 lb
Rated power - P2
22 kW
Size of connection
DN 100
Enclosure class (IEC 34-5)
55 Dust/Jetting
Pressure rating for connection
PN 16
Motor efficiency at 3/4 load
93.7-94.0 %
Rated current
68.5/39.5 A
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Motor type
180MB
Range of ambient temperature
-22 .. 140 °F
Pump speed on which pump data are based
2945 rpm
Rated flow
753 US gpm
Version
A
Diameter
6.89 in
Motor
FF300
Length
550 mm
Maximum head
128 ft
Housing
Cast iron
Rated head
111.6 ft
Actual impeller diameter
6.89 in
Type
180MB
Curve tolerance
ISO9906:2012 3B
Connection
PN 16
Impeller
Cast iron
Code for shaft seal
BQQE
Pump housing
Cast iron
Pump version
A
