Description

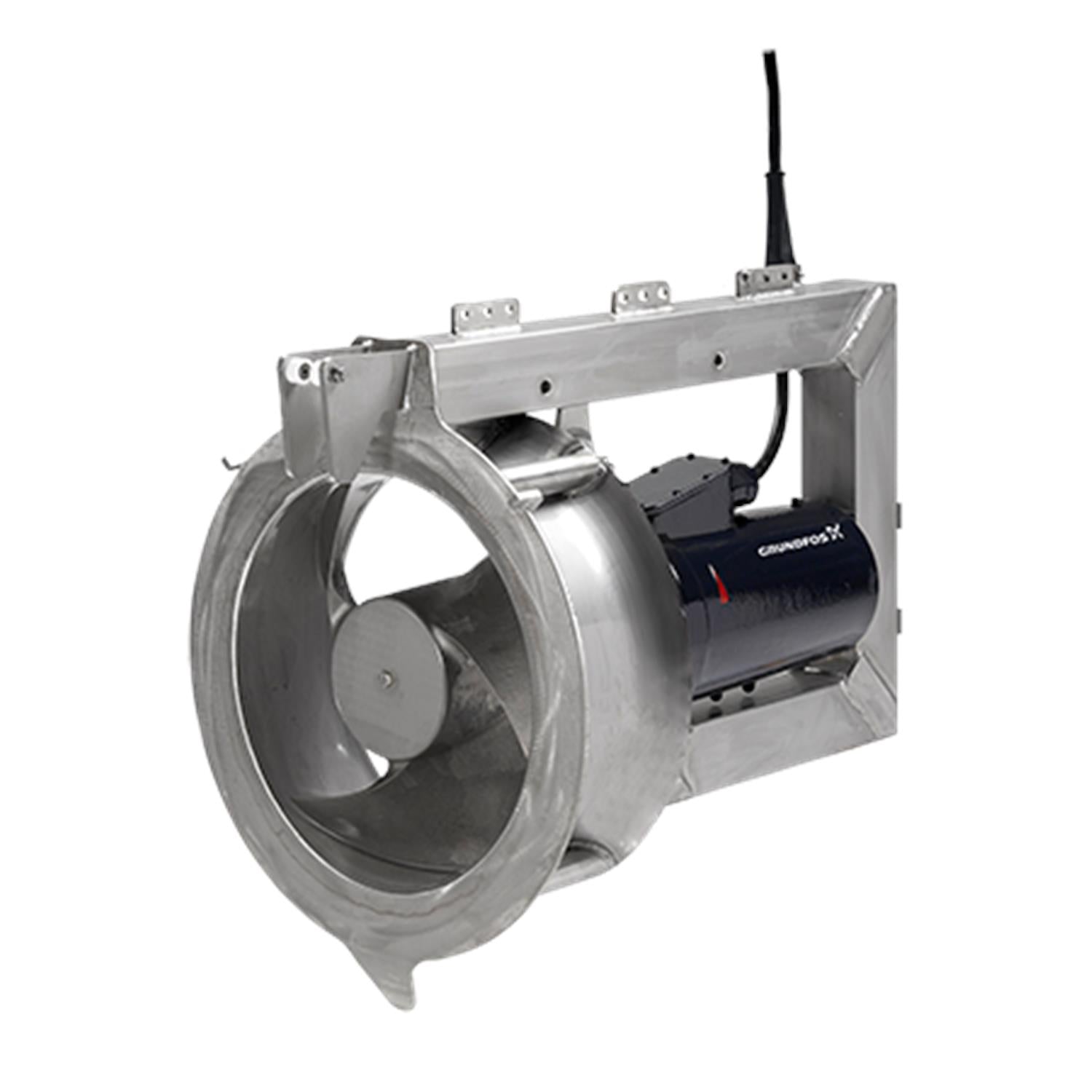

Grundfos 98798296 - SRG.68.20 .299.27.6.1H This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5712601514521
Applications
Wastewater
Motor efficiency at full load 1
0.901
Density
62.29 lb/ft³
Power factor 1
0.67
Rated voltage
3 x 460 V
Thermal protec
PTO (THERMAL SWITCH)
Power input - P1
5.6 kW
Maximum installation depth
66 m
Cos phi - p.f. at 1/2 load
0.45
Maximum current consumption
0.45
Starting current
105 A
Pump outlet
0.45
Pump inlet
0.45
Connect code
0.45
Mains frequency
60 Hz
Insulation class (IEC 85)
H
Cos phi - p.f. at 3/4 load
0.58
Motor efficiency at 1/2 load
0.86
Net weight
529.0 lb
Number of poles
4
Rated speed
1780 rpm
Start. method
star/delta
Rated power - P2
5 kW
Enclosure class (IEC 34-5)
IP68
Motor efficiency at 3/4 load
0.892
Rated current
11.5 A
Cable type
S1BN8-F 11G2
Voltage tolerance
+10/-10 %
Explosion proof
no
Type of cable plug
NO
Length of cable
10 m
Moisture sensor
without moisture sensors
pH-value range
45203
Max starts per hour
20
Water-in-oil sensor
with water-in-oil sensor
Max flow
575 l/s
Head max
0.83 m
Sens.interface
0.83 m
Valve type
0.83 m
Diameter
19.7 in
Pipework connection
0.83 m
Motor
Cast iron
Number of leads
0.83 m
Length
0.83 m
Colour
0.83 m
Power 1
5.6 kW
Pressure retention valve
0.83 m
Approvals and markings
0.83 m
Flowrange
269 .. 575 l/s
Maximum head
2.723 ft
Flow range
0.83 m
Battery back-up
0.83 m
Size
60/60 mm
Rated head
2.723 ft
Thickness
450 micrometre
Type
S1BN8-F 11G2
Head min
0.12 m
Min flow
269 l/s
Primary shaft seal
2X RADIAL LIP SEALS
Fits column profile tube, size
60/60 mm
Propeller speed
299 rpm
Standard
ISO 9906
Propeller diameter
500 mm
