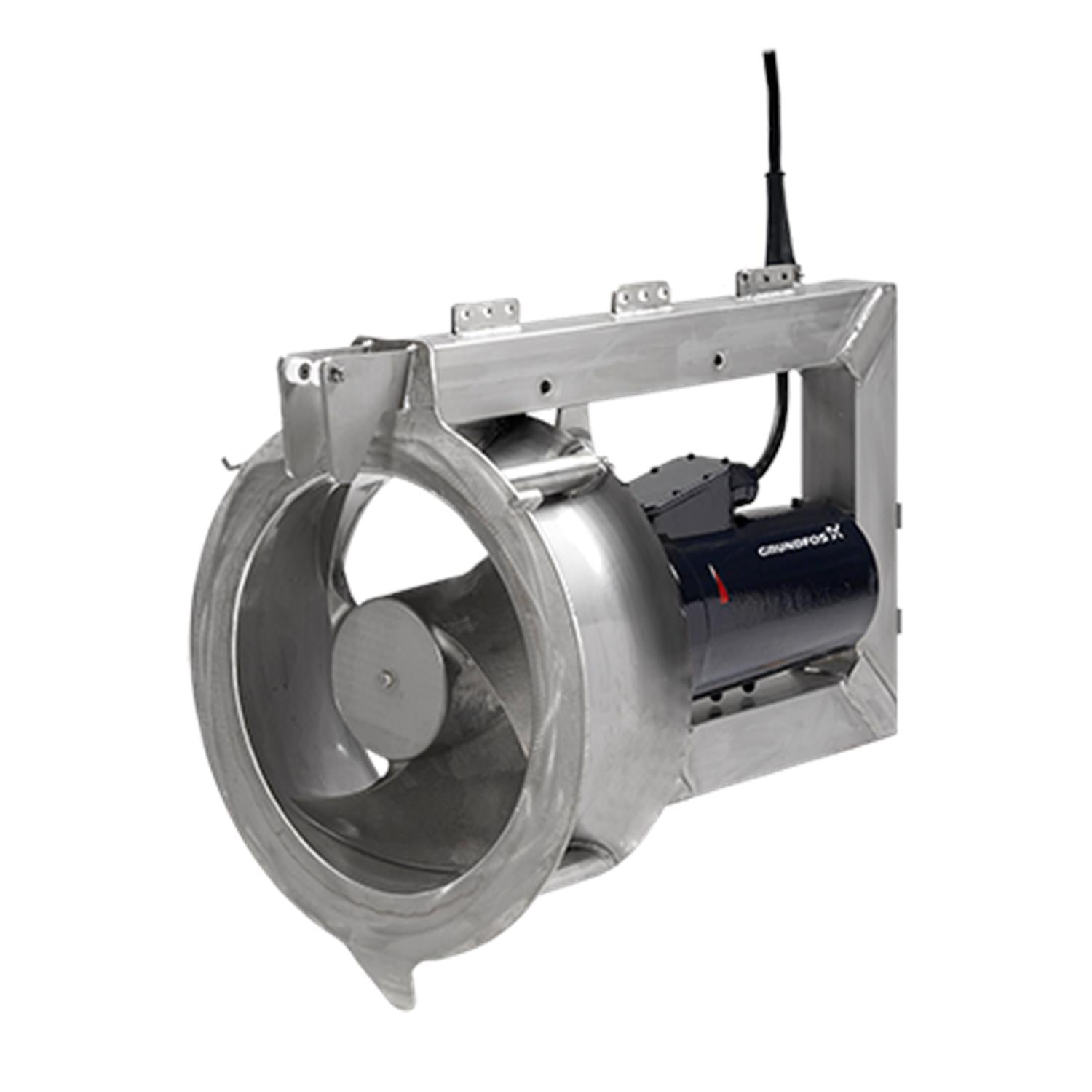

Grundfos 98798309 - SRG.20.12 .720.08.6.0H
Grundfos 98798309 - SRG.20.12 .720.08.6.0H
Grundfos 98798309 - SRG.20.12 .720.08.6.0H
Grundfos 98798309 - SRG.20.12 .720.08.6.0H
Grundfos 98798309 - SRG.20.12 .720.08.6.0H
Grundfos 98798309 - SRG.20.12 .720.08.6.0H

Grundfos 98798309 - SRG.20.12 .720.08.6.0H

GRUNDFOSSKU: 98798309
Price:
$13,392.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

SRG. 20. 12 . 720. 08. 6. 0H | The Grundfos range of horizontal submersible SRG recirculation pumps is designed for pumping return sludge in wastewater treatment plants and other applications where large flow rates are required at a low head. The recirculation pumps are equipped with a gear-driven energy-efficient impeller. The squirrel-cage induction motor is protected against overload by means of three bimetallic thermal switches (PTO) in the motor windings. The products are equipped with IE3 motor components. To prevent ingress of the surrounding liquid, the SRG recirculation pumps have two radial FKM rubber lip seals together with a ceramic wear ring and a mechanical shaft seal made of silicon carbide/silicon carbide or tungsten carbide/tungsten carbide, depending on size. The secondary seal between the gearbox and the motor is made of carbon/aluminum oxide. The oil-filled gearbox is monitored for the ingress of water by a leak sensor incorporated as standard. The sensor can trigger an alarm signal and/or switch off the motor by means of an external Grundfos relay, type ALR-20/A, supplied as an optional accessory. The gearbox incorporates tapered roller bearings absorbing the axial force from the propeller. Motors range from 1. 1 to 32. 0 hp (0. 8 to 24. 0 kW). A wide range of accessories made of stainless steel AISI 304/316 steel ensures easy installation and long trouble-free operation.

EAN 5712601514651
Applications Wastewater
Motor efficiency at full load 1 0.859
Density 62.29 lb/ft³
Power factor 1 0.88
Rated voltage 3 x 460 V
Thermal protec PTO (THERMAL SWITCH)
Power input - P1 1.8 kW
Maximum installation depth 66 m
Cos phi - p.f. at 1/2 load 0.71
Maximum current consumption 0.71
Starting current 29 A
Pump outlet 0.71
Pump inlet 0.71
Connect code 0.71
Mains frequency 60 Hz
Insulation class (IEC 85) H
Cos phi - p.f. at 3/4 load 0.82
Motor efficiency at 1/2 load 0.832
Net weight 245.0 lb
Number of poles 2
Rated speed 3527 rpm
Start. method direct-on-line
Rated power - P2 1.5 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.854
Rated current 2.8 A
Cable type S1BN8-F 11G1
Voltage tolerance +10/-10 %
Explosion proof no
Type of cable plug NO
Length of cable 15 m
Moisture sensor without moisture sensors
pH-value range 45203
Max starts per hour 20
Water-in-oil sensor with water-in-oil sensor
Max flow 80.6 l/s
Head max 1.24 m
Sens.interface 1.24 m
Valve type 1.24 m
Diameter 11.8 in
Pipework connection 1.24 m
Motor Cast iron
Number of leads 1.24 m
Length 1.24 m
Colour 1.24 m
Power 1 1.8 kW
Pressure retention valve 1.24 m
Approvals and markings 1.24 m
Flowrange 25 .. 80.6 l/s
Maximum head 4.068 ft
Flow range 1.24 m
Battery back-up 1.24 m
Size 60/60 mm
Rated head 4.068 ft
Thickness 450 micrometre
Type S1BN8-F 11G1
Head min 0.16 m
Min flow 25 l/s
Primary shaft seal 2X RADIAL LIP SEALS
Fits column profile tube, size 60/60 mm
Propeller speed 720 rpm
Standard ISO 9906
Propeller diameter 300 mm

Motor Curves

Dimensional Drawing

DWiring Diagram
