Image shown may not be actual product

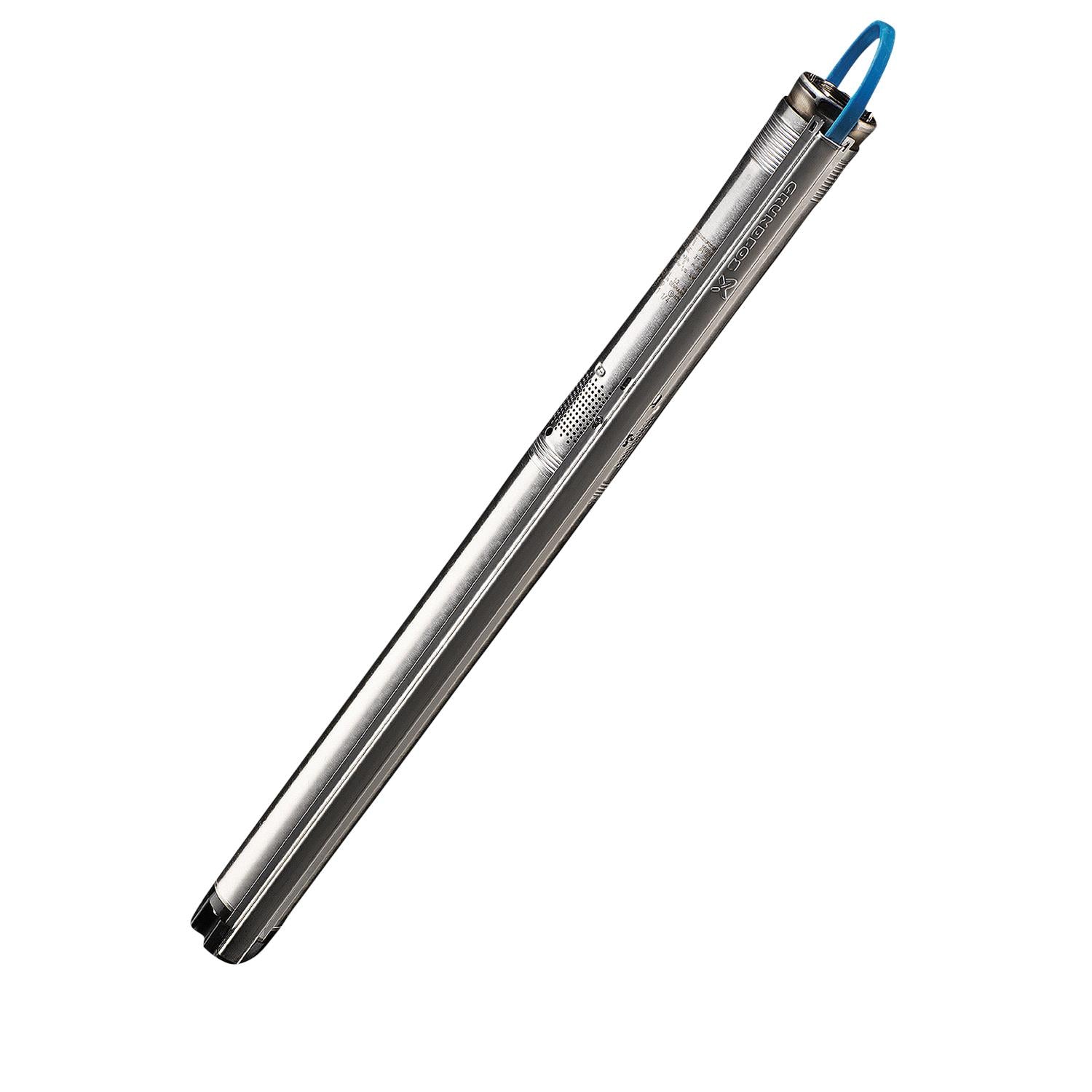

![Grundfos 96160446 - SQE 2-55 N]()
![Grundfos 96160446 - SQE 2-55 N]()
![Grundfos 96160446 - SQE 2-55 N]()
![Grundfos 96160446 - SQE 2-55 N]()
Description
Grundfos 96160446 - SQE 2-55 N This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5700398878391
Material Pricing Group
1
Density
62.29 lb/ft³
Maximum operating pressure
15 bar
Power factor 1
1
Selected liquid temperature
68 °F
Rated voltage
1 x 200-240 V
Thermal protec
internal
Pumped liquid
Water
Power input - P1
1 kW
Pump outlet
Rp1 1/4
Liquid temperature range
32 .. 95 °F
Mains frequency
50 Hz
Insulation class (IEC 85)
F
Built-in motor protection
Y
Net weight
10.6 lb
Rated speed
10700 rpm
Start. method
direct-on-line
Gross weight
12.1 lb
Rated power - P2
0.7 kW
Enclosure class (IEC 34-5)
IP68
Power (P2) required by pump
0.69 kW
Rated current
5.3 A
Length of cable
1.5 m
Sales region
Australia
Motor type
MSE3-N
Minimum borehole diameter
76 mm
Pump speed on which pump data are based
10700 rpm
Stages
3
Approvals
CE
Rated flow
8.81 US gpm
Model
B
Diameter
2.99 in
Motor
Stainless steel
Power 1
1 kW
Rated head
177.2 ft
Type
MSE3-N
Curve tolerance
ISO9906:2012 3B
Pump No
96080720
Valve
pump with built-in non-return valve
Impeller
Composite
Pump
0.69 kW
Motor Curves
