Description

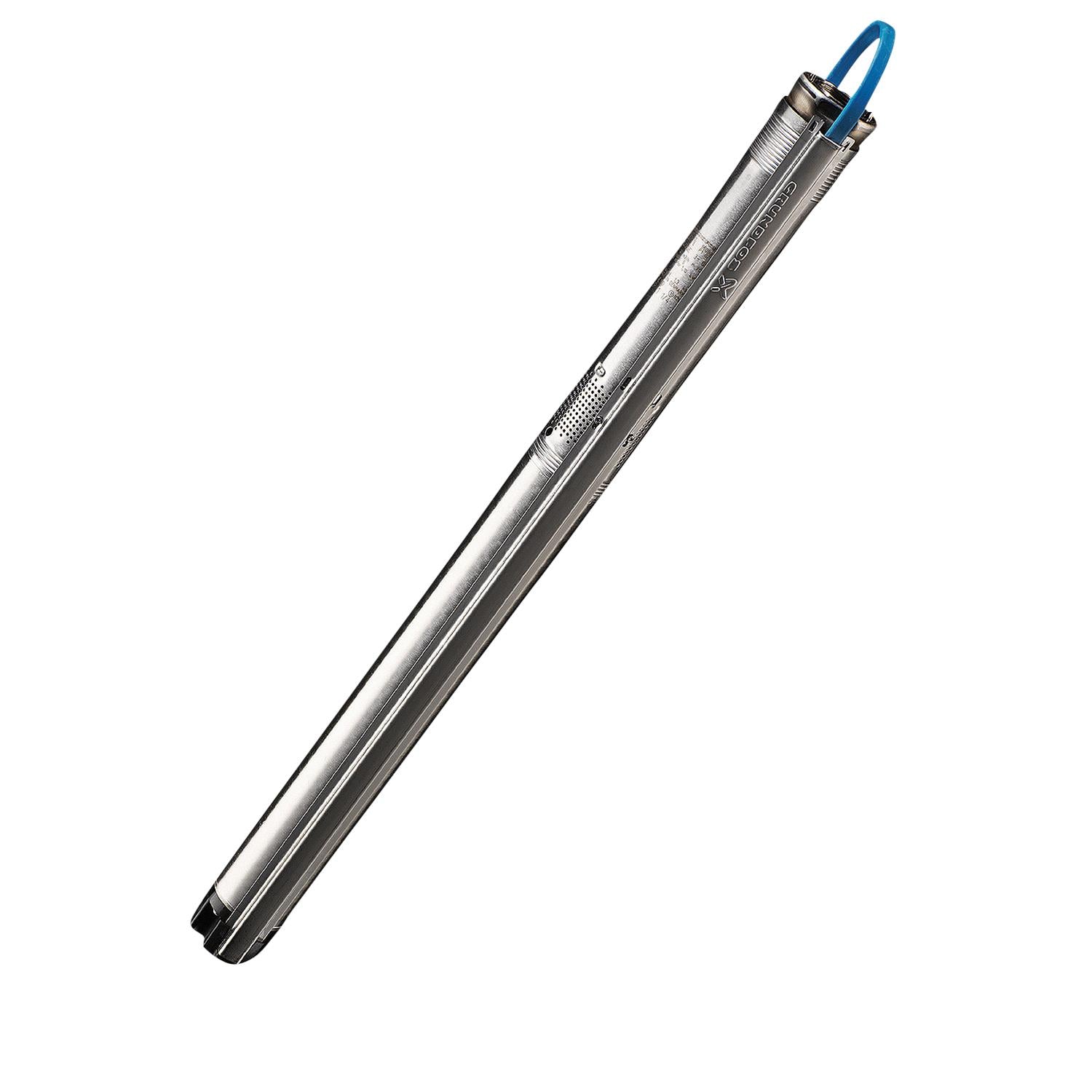

The Grundfos 96160438 (SQE 1-65 N) is a Submersible Groundwater Pump — Variable Speed. Variable speed submersible pump for groundwater with built-in constant pressure control. Nominal performance: 4.4US gpm at 236.2ft. Rated 200-240V, 1.0-Phase, 60 Hz. Applications include Residential groundwater intake, Residential water pressure boosting, Municipal wells.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 96160438 |
| Product Series | SQE |
| Series Description | Submersible Groundwater Pump — Variable Speed |
| Power | 0.939HP |
| Voltage | 200-240V |
| Phase | 1.0-Phase |
| Frequency | 60 Hz |
| Pump Speed | 10700rpm |
| Full Load Current | 5.2A |
| Motor Type | MSE3-N |
| Motor Protection | Y |
| Insulation Class | F |
| Protection Class (IP) | IP68 |
| Nominal Flow | 4.4US gpm |
| Nominal Head | 236.2ft |
| Max Operating Pressure | 217.56psi |
| Max Fluid Temperature | 95°F |
| Outlet Connection | RP1 1/4 |
| Impeller Material | Composite |
| Approvals / Certifications | CE, PCBC, RCM, EAC, CN Rohs Exempt |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 200-240V, 1.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 95°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. SQE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5700398875420
- Approvals
- CE
- Built-in motor protection
- Y
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Diameter
- 2.99 in
- Enclosure class (IEC 34-5)
- IP68
- Gross weight
- 12.3 lb
- Impeller
- Composite
- Insulation class (IEC 85)
- F
- Length of cable
- 1.5 m
- Liquid temperature range
- 32 .. 95 °F
- Mains frequency
- 50 Hz
- Material Pricing Group
- 6
- Maximum operating pressure
- 15 bar
- Minimum borehole diameter
- 76 mm
- Model
- B
- Motor
- Stainless steel
- Motor type
- MSE3-N
- Net weight
- 10.8 lb
- Power (P2) required by pump
- 0.68 kW
- Power 1
- 1 kW
- Power factor 1
- 1
- Power input - P1
- 1 kW
- Pump
- 0.68 kW
- Pump No
- 96080718
- Pump outlet
- Rp1 1/4
- Pump speed on which pump data are based
- 10700 rpm
- Pumped liquid
- Water
- Rated current
- 5.3 A
- Rated flow
- 4.4 US gpm
- Rated head
- 236.2 ft
- Rated power - P2
- 0.7 kW
- Rated speed
- 10700 rpm
- Rated voltage
- 1 x 200-240 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Sales region
- Australia
- Selected liquid temperature
- 68 °F
- Stages
- 4
- Start. method
- direct-on-line
- Thermal protec
- internal
- Type
- MSE3-N
- Valve
- pump with built-in non-return valve
Dimensional Drawing
