Grundfos 98243844 - SPackage 4-11/8 A-W-A-AUUV | Submersible | Borehole | Vertical | High Head

Save $1,461.17
GRUNDFOSSKU: 98243844

Price:
Sale price$2,042.83 Regular price$3,504.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

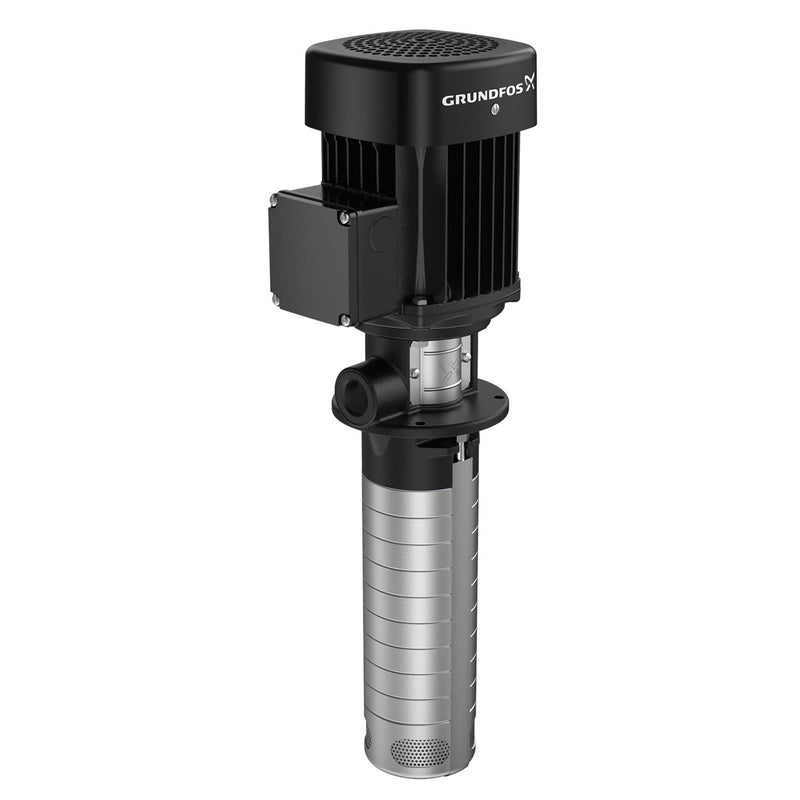

Grundfos 98243844 - SPK 4-11/8 A-W-A-AUUV Submersible Pump

The Grundfos 98243844 - SPK 4-11/8 A-W-A-AUUV is a high-performance submersible pump designed for various industrial applications. Manufactured by Grundfos, this vertical borehole pump is engineered to deliver exceptional efficiency and reliability in demanding environments.

Ideal for high head applications, the SPK series is known for its robust construction and advanced technology, making it a preferred choice for professionals in the field. Whether you need a centrifugal, immersed, or multistage pump, the SPK 4-11/8 A-W-A-AUUV meets diverse operational needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

Approvals WEEE
Approvals for motor CE,CC
Built-in motor protection NONE
Code for shaft seal AUUV
Connect code W
Connection G 3/4
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Environmental approvals WEEE
Flange size for motor FT100
Frequency 60 Hz
Frequency converter NONE
Gross weight 37.0 lb
Housing Cast iron
I MAX -/-A
Impeller Stainless steel
Impellers 8
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
KVA code M
Liquid max temp 194°F
Liquid temperature range 14 .. 194 °F
Material code A
Maximum current consumption -/- A
Minimum ambient temperature -22°F
Model E
Motor FT100
Motor efficiency at 1/2 load 86.4-85.5 %
Motor efficiency at 3/4 load 86.0-86.5 %
Motor efficiency at full load 1 82.5-84.0 %
Motor type 80CA
n rpm F
Net weight 34.2 lb
Number of poles 2
P2 kW 1.5 HP
Phase 3
Pipe connection G 3/4
Power factor 1 0.88-0.80
Pump housing Cast iron
Pump speed on which pump data are based 3420 rpm
Pump version A
Range of ambient temperature -22 .. 140 °F
Rated current 4,15-4,00/2,40-2,30 A
Rated flow 17.6 US gpm
Rated head 118.1 ft
Rated power - P2 1.5 HP
Rated speed 3420-3470 rpm
Rated voltage 3 x 220-255D/380-440Y V
Shaft Product name:SPK 4-11/8 A-W-A-AUUV
Shaft seal AUUV
Stages 11
Starting current 430-500 %
Thermal protec external
Type 80CA
Version A

Motor Curves

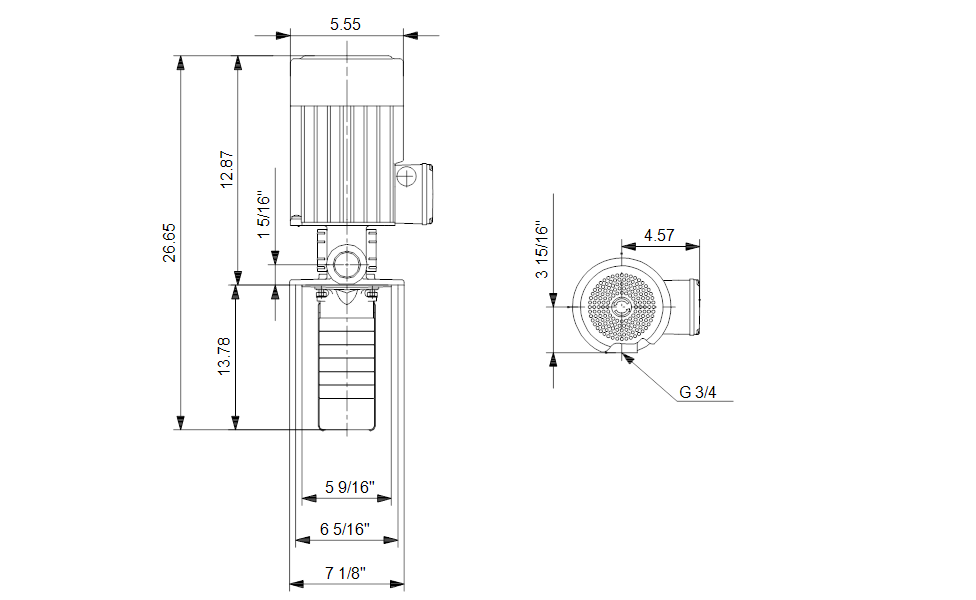

Dimensional Drawing
