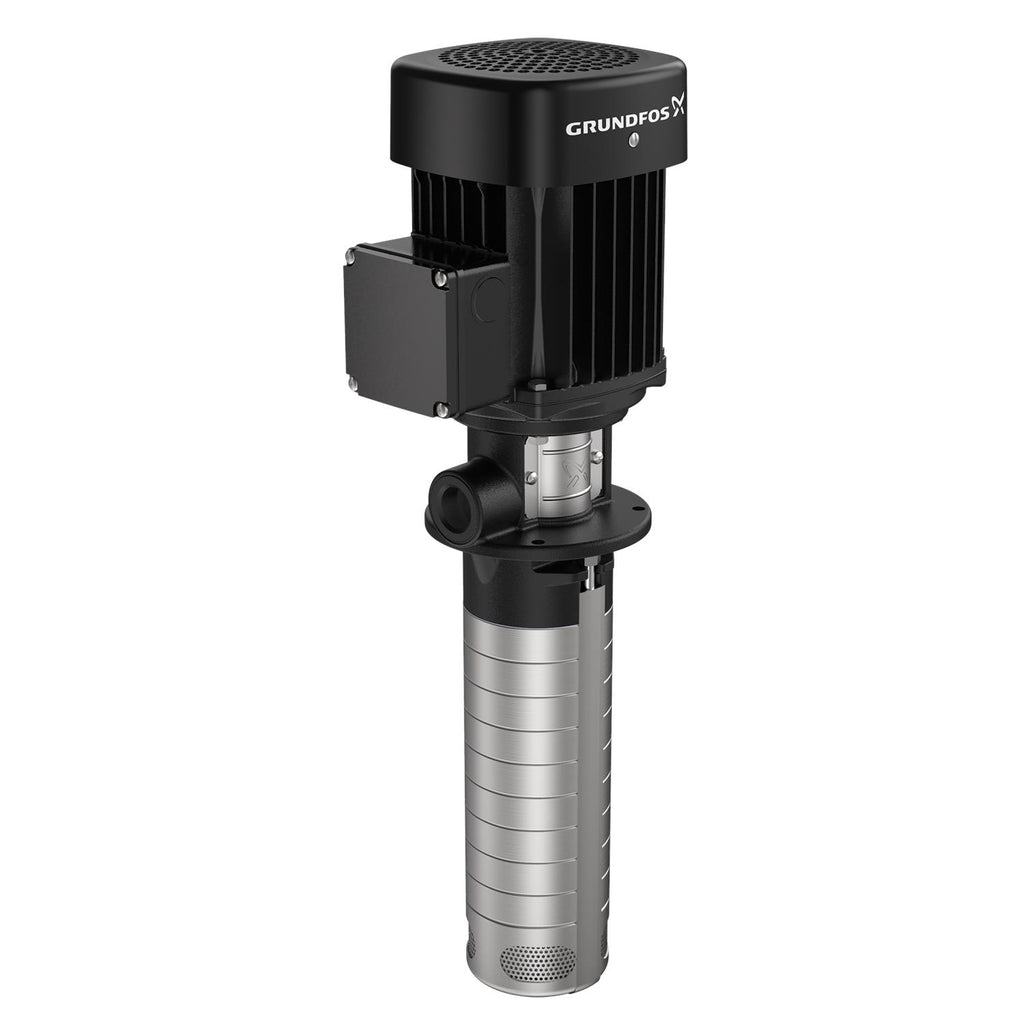

Grundfos 98190350 - SPK 2-23/8 A-W-A-AUUV | Multistage | Immersible | SelfPriming | Centrifugal | Horizontal Installation | Vertical | Horizontal

Save $1,441.99
GrundfosSKU: 98190350

Price:
Sale price$2,016.01 Regular price$3,458.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
98190350 · Grundfos Accessory / Spare Part / Control
ACC0.75HP220-255D/380-440YV3.0-Phase60 HzIP55 Dust/JettingStainless steel

The Grundfos 98190350 (SPK 2-23/8 A-W-A-AUUV) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 11.9US gpm at 105ft. Rated 220-255D/380-440YV, 3.0-Phase, 60 Hz. Applications include Machining.

Power
0.75HP
Voltage
220-255D/380-440YV
Phase
3.0-Phase
Max Flow
11.9US gpm
Max Head
105ft
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 98190350
Series: ACC
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: AUUV
Technical Specifications
Model Number 98190350
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 0.75HP
Voltage 220-255D/380-440YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3390-3460rpm
Pump Speed 3420rpm
Full Load Current 2,15-2,05/1,25-1,20A
Motor Type 71BA
Motor Efficiency 76.8-76.8%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 11.9US gpm
Nominal Head 105ft
Max Fluid Temperature 194°F
Max Ambient Temperature 140°F
Min Ambient Temperature -22°F
Nominal Pipe Bore G 3/4
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal AUUV
Approvals / Certifications CE, EAC, UKCA, RCM
Applications
Machining
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 220-255D/380-440YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 98190350
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Approvals WEEE
Approvals for motor CE
Built-in motor protection NONE
Code for shaft seal AUUV
Connect code W
Connection G 3/4
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Environmental approvals WEEE
Flange size for motor FT85
Frequency 60 Hz
Frequency converter NONE
Gross weight 32.0 lb
Housing Cast iron
I MAX -/-A
Impeller Stainless steel
Impellers 8
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
KVA code K
Liquid max temp 194°F
Liquid temperature range 14 .. 194 °F
Material code A
Maximum current consumption -/- A
Minimum ambient temperature -22°F
Model E
Motor FT85
Motor efficiency at 1/2 load 82.5-79.5 %
Motor efficiency at 3/4 load 83.0-83.0 %
Motor efficiency at full load 1 76.8-76.8 %
Motor type 71BA
n rpm F
Net weight 29.1 lb
Number of poles 2
P2 kW 0.75 HP
Phase 3
Pipe connection G 3/4
Power factor 1 0.85-0.76
Pump housing Cast iron
Pump speed on which pump data are based 3420 rpm
Pump version A
Range of ambient temperature -22 .. 140 °F
Rated current 2,15-2,05/1,25-1,20 A
Rated flow 11.9 US gpm
Rated head 105 ft
Rated power - P2 0.75 HP
Rated speed 3390-3460 rpm
Rated voltage 3 x 220-255D/380-440Y V
Shaft Product name:SPK 2-23/8 A-W-A-AUUV
Shaft seal AUUV
Stages 23
Starting current 500-600 %
Thermal protec external
Type 71BA
Version A
