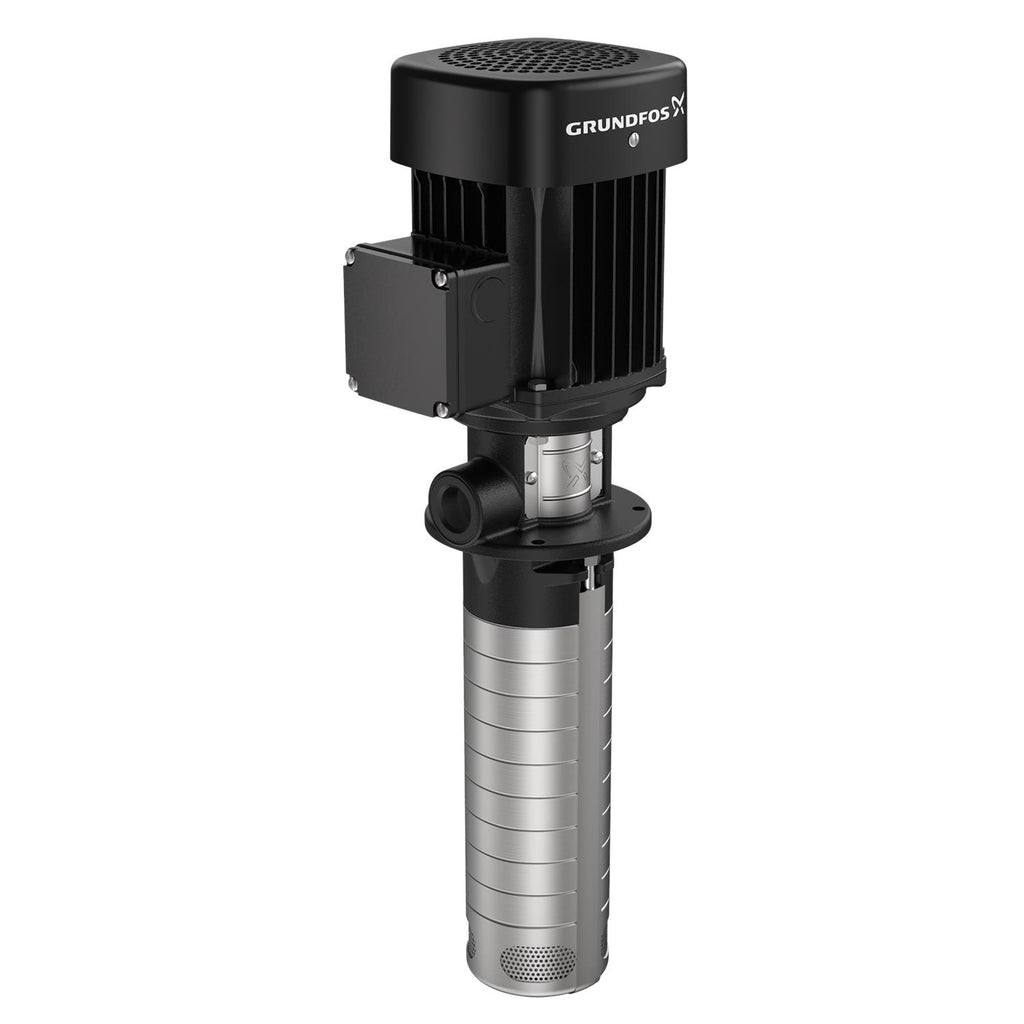

Grundfos 98190345 - SPackage 2-23/5 A-W-A-AUUV | Submersible | Borehole | Vertical | High Head

Save $1,325.64
GrundfosSKU: 98190345

Price:
Sale price$1,853.36 Regular price$3,179.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
Grundfos 98190345 - SPackage 2-23/5 A-W-A-AUUV | Submersible · ACC
ACCVertical

The Grundfos 98190345 is a genuine Grundfos Accessory — SPackage 2-23/5 A-W-A-AUUV | Submersible | Borehole | Vertical | High Head.

Series
ACC
Model
98190345
Manufacturer
Grundfos
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Model Code Decoded
Model code decoded — series, size, stages, seal, connection, motor variant
Industrial Grade
Built and tested to IEC, NEMA, and NSF standards
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Parts and Accessories

Genuine Grundfos replacement parts and accessories are manufactured to the same specifications as the original components — ensuring correct fit, correct function, and maintenance of original pump performance.

OEM Quality — Maintains Warranty Coverage

Using genuine Grundfos replacement parts maintains pump warranty coverage where applicable. Third-party parts may void warranty coverage and can cause performance changes and premature failure.

Compatibility Confirmed

Grundfos accessories and replacement parts are tested for compatibility with specific Grundfos pump models. Part numbers are model-specific — always verify using your pump's model number and serial number.

PumpStop Expert Support

Not sure if this is the right part for your pump? Contact PumpStop with your pump model number and serial number — our team will confirm compatibility before you order.

Model Code Decoded — 98190345
Series: ACC
Technical Specifications
Model Number 98190345
Product Series ACC
Orientation Vertical
Important Notices
Electrical Requires correctly rated supply — . Install with correctly rated circuit protection and motor starter.
Temperature limits Do not exceed max fluid temperature (see spec sheet) or max ambient temperature (see spec sheet). Operating outside limits damages seals and motor insulation.
Dry running Do not run dry. Grundfos CR/CRN/MTR pumps use the pumped fluid to lubricate the shaft seal — dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, maintenance intervals, and spare part numbers. Manuals available from Grundfos or PumpStop.
Available Documentation
✓ Installation and Operating Manual (IOM) — ACC
✓ Product Data Sheet — 98190345
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency are correct for your installation. For sizing, compatibility, or spare part guidance, chat or call (781) 281-8905.
Approvals WEEE
Approvals for motor CE
Built-in motor protection NONE
Code for shaft seal AUUV
Connect code W
Connection G 3/4
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Environmental approvals WEEE
Flange size for motor FT85
Frequency 60 Hz
Frequency converter NONE
Gross weight 32.0 lb
Housing Cast iron
I MAX -/-A
Impeller Stainless steel
Impellers 5
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
KVA code K
Liquid max temp 194°F
Liquid temperature range 14 .. 194 °F
Material code A
Maximum current consumption -/- A
Minimum ambient temperature -22°F
Model E
Motor FT85
Motor efficiency at 1/2 load 77.5-75.0 %
Motor efficiency at 3/4 load 80.0-79.0 %
Motor efficiency at full load 1 73.4-73.4 %
Motor type 71AB
n rpm F
Net weight 29.1 lb
Number of poles 2
P2 kW 0.5 HP
Phase 3
Pipe connection G 3/4
Power factor 1 0.85-0.76
Pump housing Cast iron
Pump speed on which pump data are based 3420 rpm
Pump version A
Range of ambient temperature -22 .. 140 °F
Rated current 1,50-1,44/0,87-0,83 A
Rated flow 11.9 US gpm
Rated head 68.9 ft
Rated power - P2 0.5 HP
Rated speed 3410-3470 rpm
Rated voltage 3 x 220-255D/380-440Y V
Shaft Product name:SPK 2-23/5 A-W-A-AUUV
Shaft seal AUUV
Stages 23
Starting current 550-650 %
Thermal protec external
Type 71AB
Version A

Motor Curves

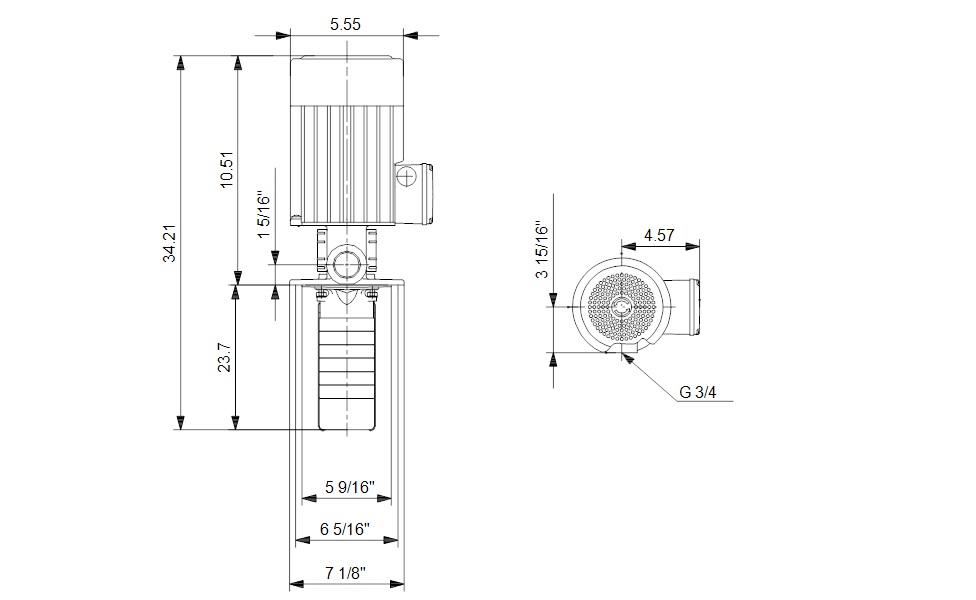

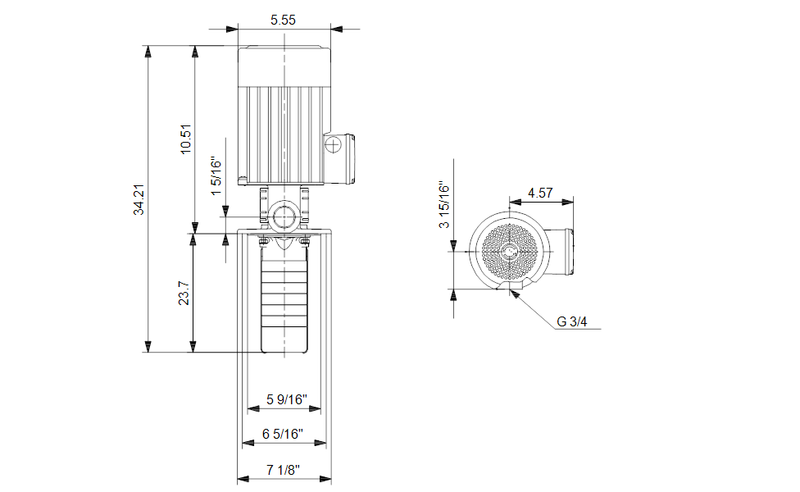

Dimensional Drawing
