Grundfos 98190360 - SPackage 2-23/15 A-W-A-AUUV | Submersible | Borehole | Vertical | High Head

Save $1,766.41
GRUNDFOSSKU: 98190360

Price:
Sale price$2,469.59 Regular price$4,236.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

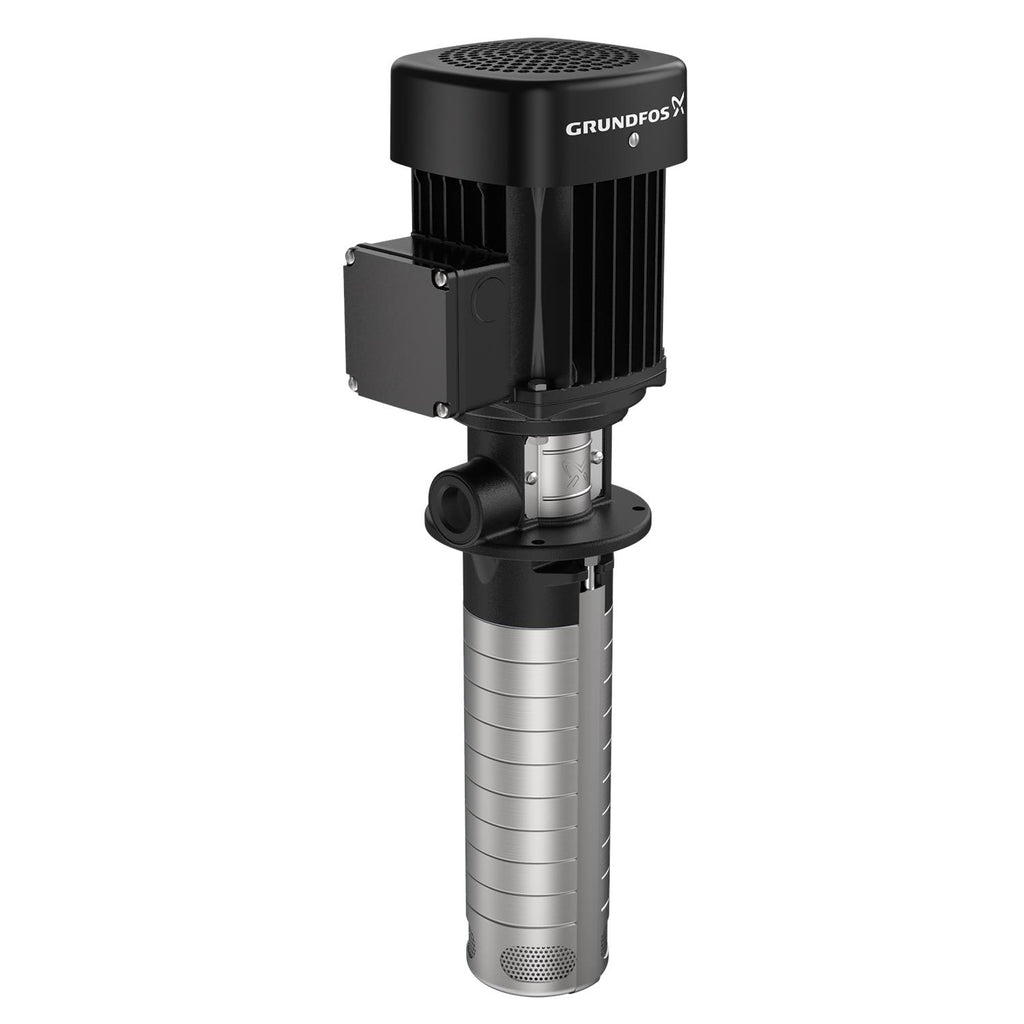

Grundfos 98190360 - SPK 2-23/15 A-W-A-AUUV Submersible Pump

The Grundfos 98190360 - SPK 2-23/15 A-W-A-AUUV is a high-performance submersible pump designed for various industrial applications. Manufactured by Grundfos, this vertical multistage pump is ideal for borehole installations, providing reliable and efficient water management solutions.

With its robust construction and advanced technology, the SPK series is engineered to handle high head requirements, making it suitable for a wide range of pumping tasks. Whether you need to move water for irrigation, industrial processes, or municipal applications, this pump delivers exceptional performance and durability.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

Approvals WEEE
Approvals for motor CE,CC
Built-in motor protection NONE
Code for shaft seal AUUV
Connect code W
Connection G 3/4
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Environmental approvals WEEE
Flange size for motor FT100
Frequency 60 Hz
Frequency converter NONE
Gross weight 48.1 lb
Housing Cast iron
I MAX -/-A
Impeller Stainless steel
Impellers 15
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
KVA code M
Liquid max temp 194°F
Liquid temperature range 14 .. 194 °F
Material code A
Maximum current consumption -/- A
Minimum ambient temperature -22°F
Model E
Motor FT100
Motor efficiency at 1/2 load 86.4-85.5 %
Motor efficiency at 3/4 load 86.0-86.5 %
Motor efficiency at full load 1 82.5-84.0 %
Motor type 80CA
n rpm F
Net weight 41.7 lb
Number of poles 2
P2 kW 1.5 HP
Phase 3
Pipe connection G 3/4
Power factor 1 0.88-0.80
Pump housing Cast iron
Pump speed on which pump data are based 3420 rpm
Pump version A
Range of ambient temperature -22 .. 140 °F
Rated current 4,15-4,00/2,40-2,30 A
Rated flow 11.9 US gpm
Rated head 196.9 ft
Rated power - P2 1.5 HP
Rated speed 3420-3470 rpm
Rated voltage 3 x 220-255D/380-440Y V
Shaft Product name:SPK 2-23/15 A-W-A-AUUV
Shaft seal AUUV
Stages 23
Starting current 430-500 %
Thermal protec external
Type 80CA
Version A

Motor Curves

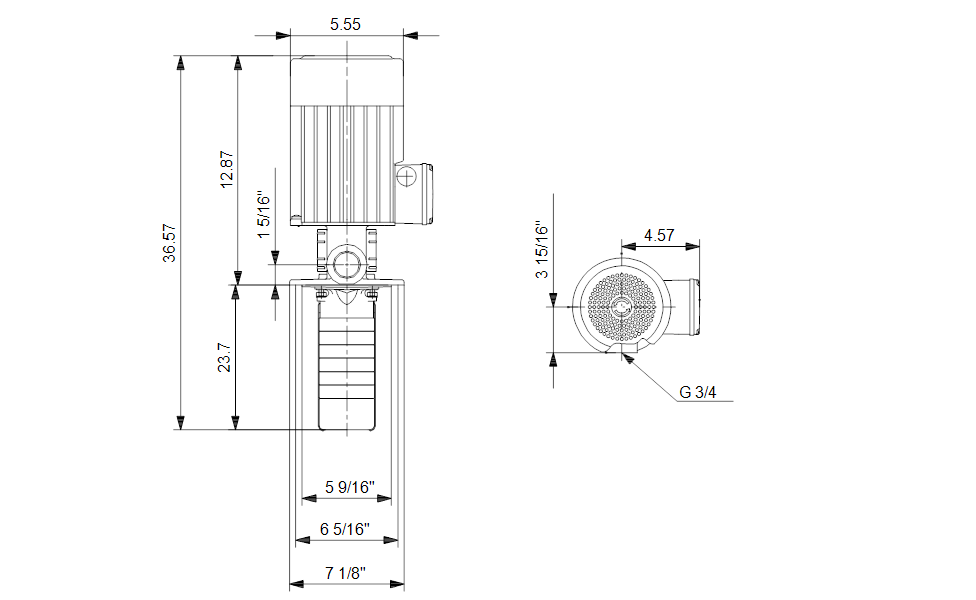

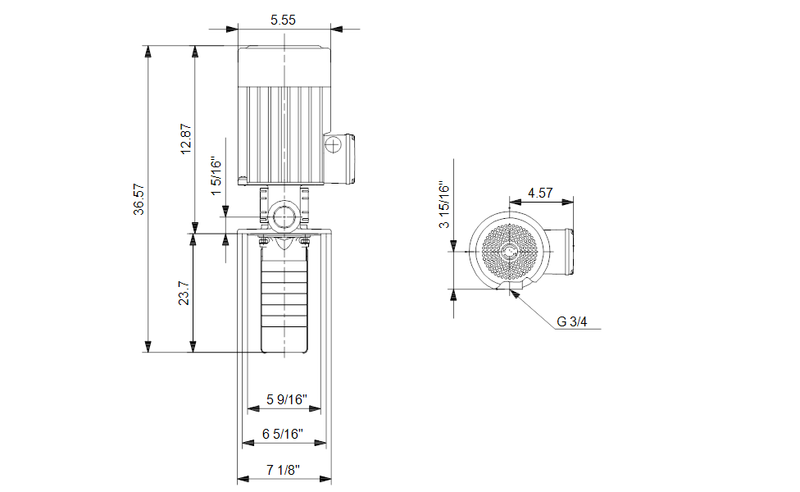

Dimensional Drawing
